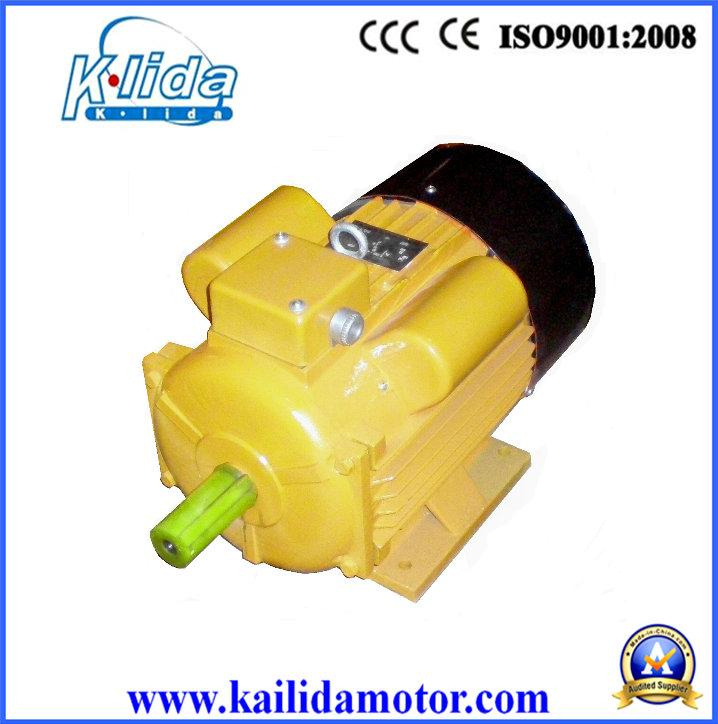

7.5kw Single Phase Double Capacitors AC Electric Motor

Prod Model:	YL132-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Kailida or OEM Brand
Model Number:	Yl132-4
Frequency:	50Hz; 60Hz; 50/60Hz
Voltage:	380V
Output Power:	5.5kw
Current:	32.9A
Effiency:	80%
Power Factor:	0.95
Structure:	Asynchronous Motor
Number Of Stator:	Single-Phase
Function:	Driving

Product Description

Single Phase Double Capacitors AC Electric Motor (YL132-4)

This series electric motor features by its high starting performance, overload capability, power factor and efficiency, low noise, light weight, little shape and easy maintance.
Protection Class: IP44/IP54/IP55 Operation Type: S1
Insulation Class: B or F Rated Voltage: 115/230, 220V, 240V
Cooling Type: IC0141 Rated Frequency: 60 Hz(50 Hz)
Shell material: Casting iron, aluminium alloy.

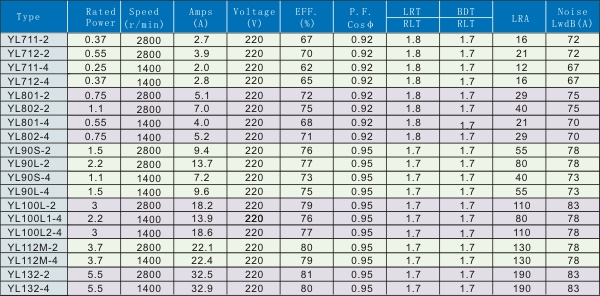

YL series AC motor technical parameter

1, Frame Size: 71-132 MM;
2, Rated Output: 0.55-5.5 kw;
3, Rated Voltage: 220 V or to be your request;
4, Rated Frequency: 50 Hz / 60 Hz;
5, Poles: 2 / 4
6, Speed: 1400 - 2800 r/min
7, Ambient Temperature: -15° C- 40° C
8, Model of CONEECTION: Y-Connection for 3 KW motor;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Current: 2.0- 32.9 A (AC);
11, Duty: Continuous (S1);
12, Insulation Class: B / F;
13, Protection Class: IP44;
14, Cooling Method: IC 411(cooled by SELF-FAN);
15, Altitude: No more than 1, 000 meters above sea level;
16, Packing: 1pc in a Strong carton several cartons on a Pallet.


Kailida motors advantage:

Prompt Quotation.
Competitive Price
Guaranteed Quality
Timely Delivery.
100% Tested.
Sincere and Professional Service.
Outstanding Finishing Surface.
Strictly and Perfect Management is guaranteed for Production.
Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
Have Rich Experience and Strong ability to Develop New Products.
Have Ability to Design the Products Based on Your Original Samples.


Our promise:

Prompt Reply to Your Inquiry within 24 Hs during Working Days.
Long Life Time Products
Products One Year Guarantee from the Date of Sales.
Professional Service in Handling Your Goods in Daily Communications
Deliver Time about 15-20 days for Normal Models.
Deliver Time about 30 days for New Models upon Receiving the New Samples.
