7/8" Min-Change 5pin Male Panel Front Mounting Circular Connector with Wires

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MF05P1LPG3AB75
Connection Type:	Panel Mount, Front Fastened
Number Of Contacts:	5 Pin
Shielding:	Non-Shielded

Product Description

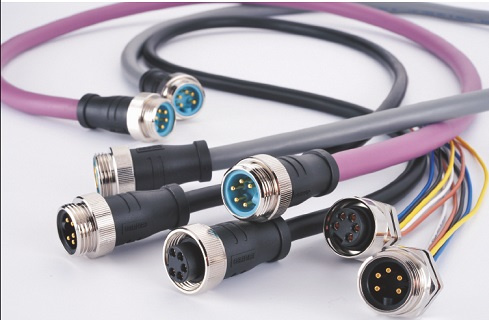

7/8" min-change 5pin male panel front mounting circular connector with wires

1.Descriptions

7/8" Mini-change Panel connectors are available with 3, 4, 5, 16 poles for both signal and currents up to 13 A. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly; Male to female through-wall type is available.

2.Material data

Contacts plating:Gold plated, thickness 3μ"

Insert/ Housing:TPU

Coupling nut/screw:Brass with nickel plated screw

Overmold/ Shell:TPU

Connector contacts:Brass with gold plated

Coding	A-Code	Wire gauge	18AWG/1.0mm2
Termination	Crimping	Rated current	13 A
Orientation	Straight	Rated voltage	300 V
Sealing	O-ring	Insulation resistance	≥100 MΩ
IP rating	IP67	Contacts resistance	≤ 5 mΩ

3.Applications

(1) Commercial and industrial light displays
(2) Float switches on commercial sump pumps
(3) Fractional horse power motors
(4) Industrial heaters
(5) Industrial refrigeration systems
(6) Limit switches
(7) Linear position transducers
(8) Load cells
(9) Power connector to street-light accessories
(10) Proximity and photoelectric sensors
(11) Pumps - Solar panels
(12) Solenoid operated valves
(13) DeviceNet, NEMA 2000, etc.

4.Quality statement

(1) Screws/ nuts material: Brass C3604 with 120μ" nickel plated CNC parts.
(2) Temperature Range: Dynamic -25 ~ 90ºC, Static: -40 ~ 105ºC.
(3) Protection degree: IP67 in locked status.
(4) RoHS compliant

5.Company profile

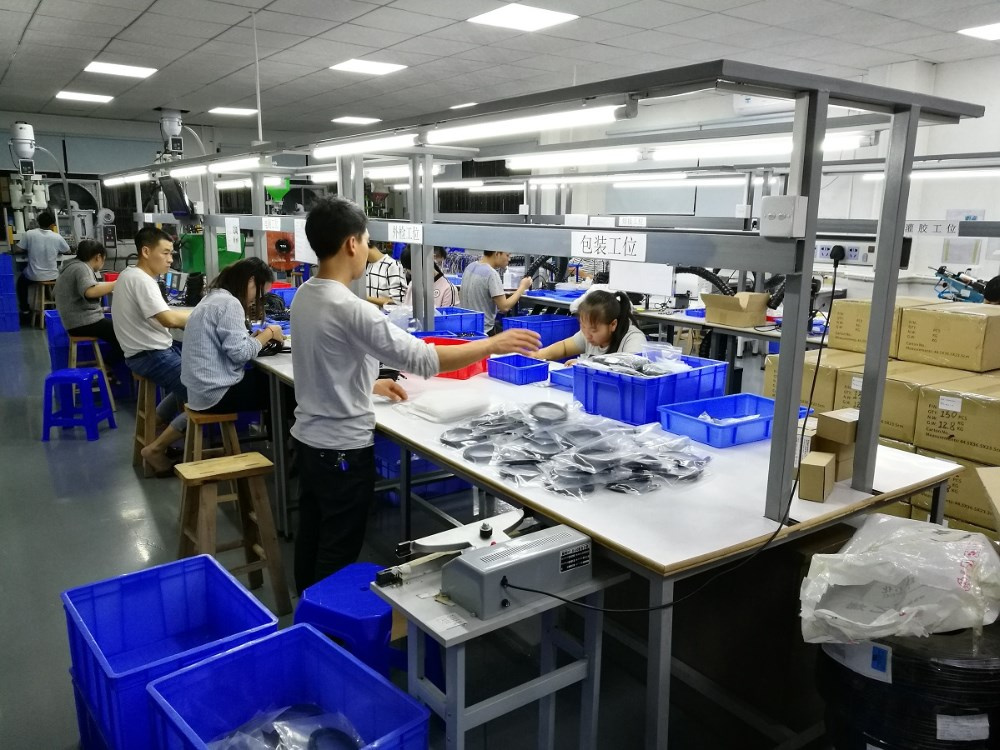

Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

6.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks

7.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
