7/8 " Min-Change 5pin Male PCB Contacts Panel Front Mounting Connector

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MF05P1LPG3AB
Termination:	PCB Soldering
Connection Type:	Panel Mount, Front Fastened
Ambient Temperature:	Minus 20 Degrees Celsius to 80 Degrees Celsius

Product Description

7/8 " min-change 5pin male PCB contacts panel front mounting connector

1.Descriptions

7/8" Mini-change Panel connectors are available with 3, 4, 5, 16 poles for both signal and currents up to 13 A. These connectors can be mechanically integrated into the device design "seamlessly", and are also designed for economical PCB assembly; Male to female through-wall type is available.

2.General information

Part No.:MF05P1LPG3AB

Number of Contacts:05 Pin

Coding:A-Code

Contacts plating:Gold plated, thickness 3μ"

Insert/ Housing:TPU

Coupling nut/screw:Brass with nickel plated screw

Sealing:Epoxy resin

Shielding:Non-Shielded

IP rating:IP67

Rated current:13 A

Rated voltage:300V

3.Applications

(1) Commercial and industrial light displays
(2) Float switches on commercial sump pumps
(3) Fractional horse power motors
(4) Industrial heaters
(5) Industrial refrigeration systems
(6) Limit switches
(7) Linear position transducers
(8) Load cells
(9) Power connector to street

4.Quality statement

(1) CABLEFORCE's screws and nuts are CNC machined parts, plastic version available for option.
(2) The male contacts pin CABLEFORCE used are machined solid pin.
(3) The female contacts socket CABLEFORCE use phosphor bronze material, also machined solid pin.
(4) Our standard thickness of contacts plating layer is 3μ" gold, we guaranteed 48hrs salt spray test.
(5) Temperature Range: Dynamic -25 ~ 80°C, Static: -40~80°C.
(6) Ingress Protection: IP67 degree and IP68 solution based on customer's specific requirement.
(7) CABLEFORCE's components and materials are RoHS compliant.

5.Company profile
Cableforce established in 2015,focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

6.Product packing
(1) Our standard packing: Individual part with transparent PE bag with label;
(2) Carton size: 44.5*36.5*23.5(mm)
(3) OEM package available
(4) Delivery : 1~ 3 weeks

7.FAQ
(1) Q:Are you a manufacturer or trading company?
A:We are a connector factory.

(2) Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.

(3) Q:What does Cableforce can provide for the product' certification?
A: IP67, CE and RoHS.

(4) Q:Can you provide samples?
A:Of course can be provided.

(5) Q:Sample lead time?
A:2-4 workdays

(6) Q: Volume order lead time?
A:3-10 workdays

(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT

Company Profile

Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.

Business

CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.

Products range

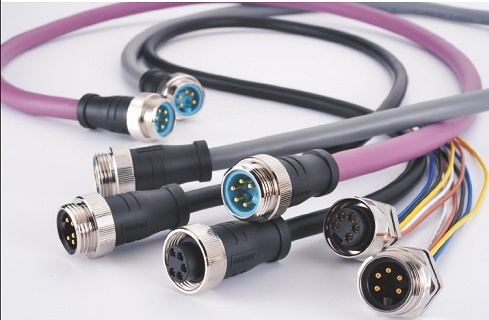

Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;

Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;

NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;

I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
