7/8" Mini-Change 3 Pin Female Circular Connector with Molded Cable
| Price: |
Negotiable/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
MF03C2LCG3AB75 |
| Connection Type: |
Single Ended Cable |
| Number Of Contacts: |
3 Pin |
| Shielding: |
Non-Shielded |
Product Description

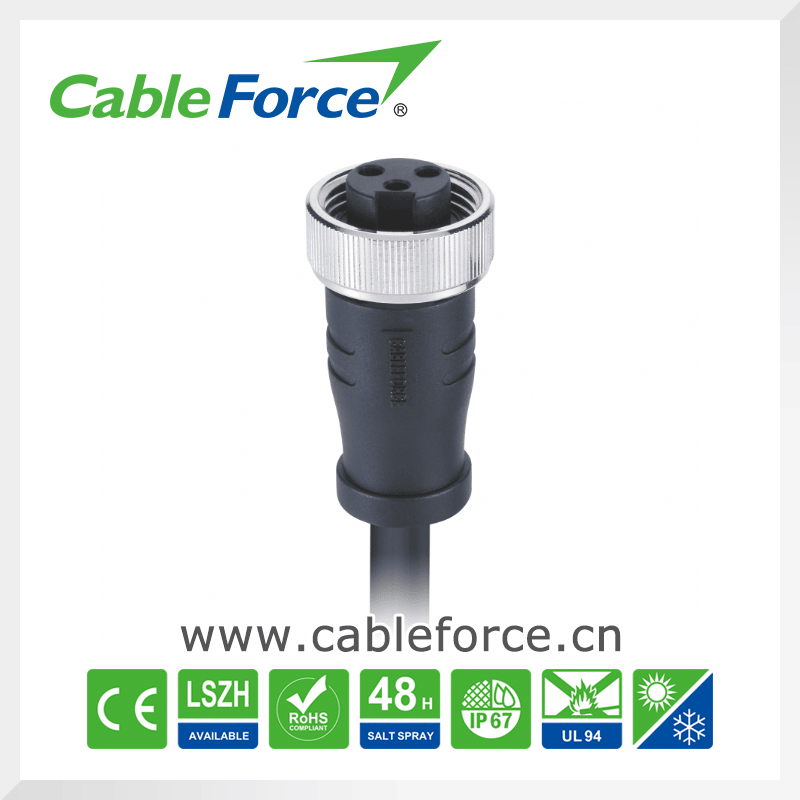

7/8" Mini-Change 3 pin female circular connector with molded cable
1.DescriptionsCABLEFORCE offers 7/8 inch Mini Change connectors pre-molded cable with threaded locking screw, certified IP67, range of contacts pins are 3, 4, 5 and 16 poles, for both signal and power transmission, current up to 13 A.(1) PUR and PVC cable for option
(2) Cable length: 1M, 2M, 3M or base on customer requirement
(3) Degree of protection IP67
(4) Contacts availability: 3P, 4P, 5P
(5) Operating voltage 300V; Current range: 13A/8A
(6) Anti-vibration locking screw designing
Contacts plating:Gold plated, thickness 3μ"

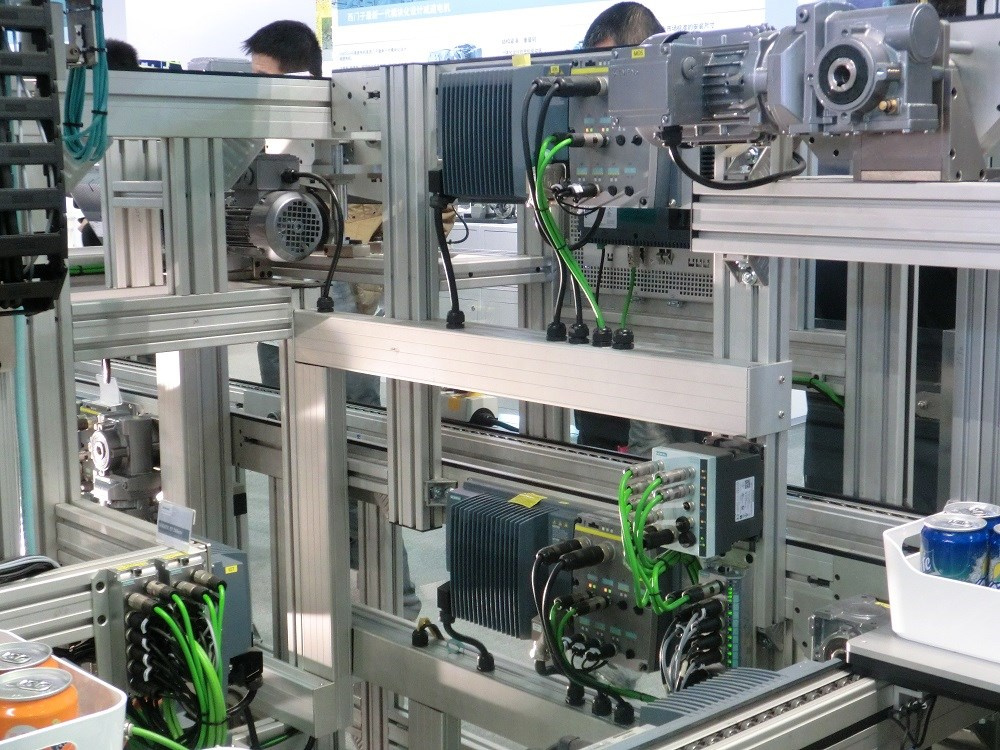

Insert/ Housing:TPUCoupling nut/screw:Brass with nickel plated screwOvermold/ Shell:TPUConnector contacts:Brass with gold plated 3.Applications(1) Commercial and industrial light displays
(2) Float switches on commercial sump pumps
(3) Fractional horse power motors
(4) Industrial heaters
(5) Industrial refrigeration systems
(6) Limit switches
(7) Linear position transducers
(8) Load cells
(9) Power connector to street-light accessories
(10) Proximity and photoelectric sensors
(11) Pumps - Solar panels
(12) Solenoid operated valves
(13) DeviceNet, NEMA 2000, etc.
4.Quality statement(1) CABLEFORCE's screws and nuts are CNC machined parts, plastic version available for option.
(2) The male contacts pin CABLEFORCE used are machined solid pin.
(3) The female contacts socket CABLEFORCE use phosphor bronze material, also machined solid pin.
(4) Our standard thickness of contacts plating layer is 3μ" gold, we guaranteed 48hrs salt spray test.
(5) Temperature Range: Dynamic -25 ~ 80°C, Static: -40~80°C.
(6) Ingress Protection: IP67 degree and IP68 solution based on customer's specific requirement.
(7) CABLEFORCE's components and materials are RoHS compliant.
5.Product certificate
6.Company profileCableforce established in 2015, focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100m² premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
7.Product packing(1) Our standard packing: Individual part with transparent PE bag with label;(2) Carton size: 44.5*36.5*23.5(mm) (3) OEM package available(4) Delivery : 1~ 3 weeks
8.FAQ(1)
Q:Are you a manufacturer or trading company?
A:We are a connector
factory.(2)
Q: What is the necessary information needed for quotation?
A:The series(M5,M8,M12,7/8"), coding, male or female, pin number, cable length etc.
(3) Q:What does Cableforce can provide for the product' certification?A: IP67, CE and RoHS.
(4) Q:Can you provide samples?
A:Of course can be provided.(5) Q:Sample lead time?
A:2-4 workdays(6) Q: Volume order lead time?
A:3-10 workdays(7) Q: How do you ship the finished product?
A:we can contact the shipping company or your shipping agent.The formal shipping way:DHL,FEDEX,UPS,TNT
Company Profile
Cableforce focuses on the industrial cable and connector's Research, Development, Sales and Manufacture. We located in Dongguan City, in the southern China, with 2100 premises and efficient modern machinery and equipments for tooling & prototyping, cable cutting, soldering, crimping, plastic injection molding, testing and manual assembly lines allow products to be manufactured in both large volume and small customized lots whilst maintaining a favorable cost and quality ratio.
Business
CABLEFORCE globally offers a wide variety of industrial connectors and cable connectivity solutions to meet either standard or harsh environment signal and power transmission application. Its wide range of metric circular connectors and cable assembly that fit almost any standard sensor or actuator application and includes features such as accurate IP ratings, a wide range of cable jackets, and multiple contacts pin configurations, and high quality rugged materials.
Products range
Circular connectors for industrial applications: M5/ M8/ M12/ M23/ 7/8" series;
Field-Bus cables: DeviceNet cable, Ethernet cable, Profibus cable, Profinet cable, CANopen;
NMEA 2000 cable and connectors: Backbone cable, Drop line cables, T connectors, Terminators;
I/O Link Connectors: USB 2.0/3.0, RJ-45, D-SUB connectors.
