700mA 45W Constant Current LED Driver with Ce

Name: 700mA 45W Constant Current LED Driver with Ce
Brand: all-electronics-online.com
SKU: 728338555
Availability: InStock
Rating: 4.6 (53 reviews)

Price:	US $ 6.3/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	OS-631-CC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	445W Max
Output:	Constant Current or Constant Voltage
Input Voltage:	100-260V
IP Rating:	IP20 Non Waterproof
Warranty:	2 Years Warranty
Use:	for Spot Light, Down Light, Panel Light
Size:	1504030mm
Case:	Plastic
Certificates/Standards:	Ce
Efficiency:	85%
Usage:	Construction, Building
Circuit Structure:	PWM Controlled
Output Type:	Terminal
Driving Method:	Constant Voltage or Constant Current
Certification:	CE, RoHS, SAA
Power Supply Voltage:	AC170-260V
Brand:	Neonpro

Product Description

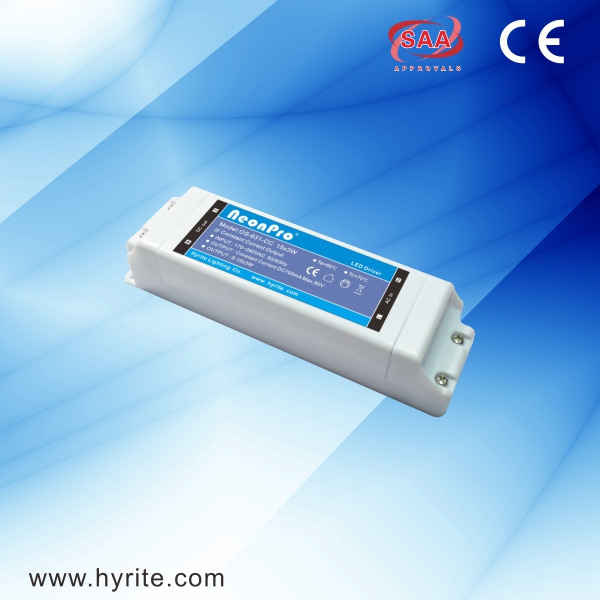

700mA 45W Constant Current LED Driver for Down Light

1.Feature of LED driver:
led driver:OS-631-CC/CV
Constant voltage and constant current, plastic case, IP20
Used for Spot Light, Down Light, Panel Light etc
Protection: Short Circuit, Over Load

2.Technical Specs of LED driver:

Model no.	OS-631-CC-700
Model series	OS
Input voltage	100-260 VAC/170-260 VAC 50/60 Hz
Power	45W
Output type	Constant current
Power factor	Low
Output voltage	60 V Max.
Output current	700mA
Typical LED loading	5~15*3 W max
Operating temperature	-25~50ºC
Installation	Indoor
Cooling	Free air convection
Connection input/output	Terminal
Dimensions(LWH)	1504030 mm
Weight(kg)	0.1000

Note:
Trade Terms: EXW, FOB, CIF and CNF term available
Lead time: 15 days after order confirmation
Payment terms: L/C, T/T, Western Union
MOQ: 1 pc

Shipping:
* DHL FedEx TNT UPS EMS
* By Sea
* By Air

Hyrite Lighting Company, also known as NeonPro Co, has 20 years experience in the design, development and manufacturing of electronic power supplies, one of an extremely successful range of signage products including, over the last seven years, LED modules and driver units.

The senior management having recognized the ongoing success and further potential of our LED products and utilizing their experience and proven track record in innovative product design and manufacture has formed Hyrite Lighting Company solely dedicated to manufacturing products specifically for the LED signage and lighitng markets.

Our products are surrently being used in many countries under different technical standards in a variety of climate conditions.

Pls kindly check our main products below,

*IP67 Slim high efficiency constant voltage LED power supply (New)

*Traditional IP67 constant voltage waterproof LED power supply

*IP45 Rainproof constant voltage LED power supply.

*IP20 indoor type LED power supply.

*Constant Current LED Driver for LED lighting.

*Dimmable LED driver.

*LED module for Channel letter/light box.

Certificate: CE RoHS SASO SAA TUV UL approved

In addition we offer comprehensive OEM and ODM services to our partners.

We sincerely welcome your visiting and valued advices to us. Any questions from you, our experienced salesperson will feedback to you within 12 hours.
