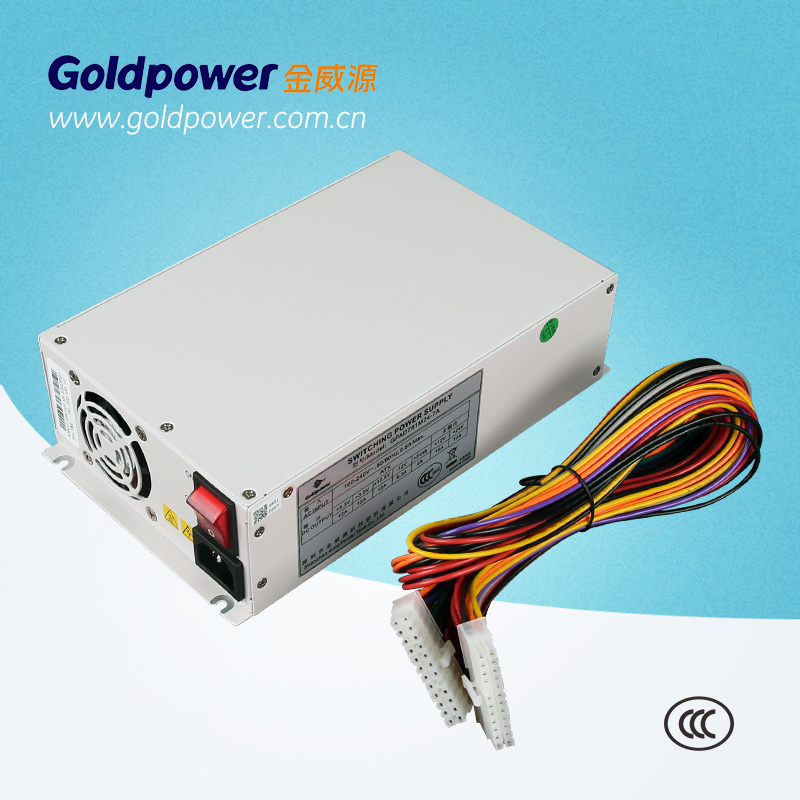

700W ATM/Vtm AC/DC Switching Power Supply for Payment Terminal

Name: 700W ATM/Vtm AC/DC Switching Power Supply for Payment Terminal
Brand: all-electronics-online.com
SKU: 733265002
Availability: InStock
Rating: 4.4 (21 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD751M24-7A
Output Efficiency:	80%
Power Factor:	0.95
Output Voltage Range:	24V 12V 5V 3.3V
Output Current Range:	0~20 a
Weight:	≤2.5kg
Output Type:	Multiple
Warranty:	2 Years
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	CCC
Output Power:	700W
Input Voltage:	90~264VAC
Brand:	Goldpower

Product Description

610W ac/dc customized power supply for Payment Terminal,ticket selling machine is a high efficiency switching power supply.

Feature:

1. Modular design,save the investment costs,
2. High Efficiency up to 80%.
3. MTBF≥200,000 H
4. Perfect protective function:Input over voltage,input under voltage,output over voltage,output current limit,short circuit protection,over temperature protection.
5. Power factor more than 0.95.
6. Annual repair rate: ≤1%

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~264	Vac
Input frequency	47~63	Hz
Power factor	0.95
Output
Output voltage range	+12,+24,+5V,+3.3V	Vdc
Output current range	0~12	A
Output power	default: 690	W
Output efficiency	80	%
Ambient
Working temperature	-25~+55	ºC
Storage temperature	-45~+85	ºC
Relative hunidity	5~95	%
Altitude	0~5000	m
Cooling	Air forced cooling
Mechanical
Dimension(LWH)	25215068 mm
Weight(KG)	≤2.5Kg

About us

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
