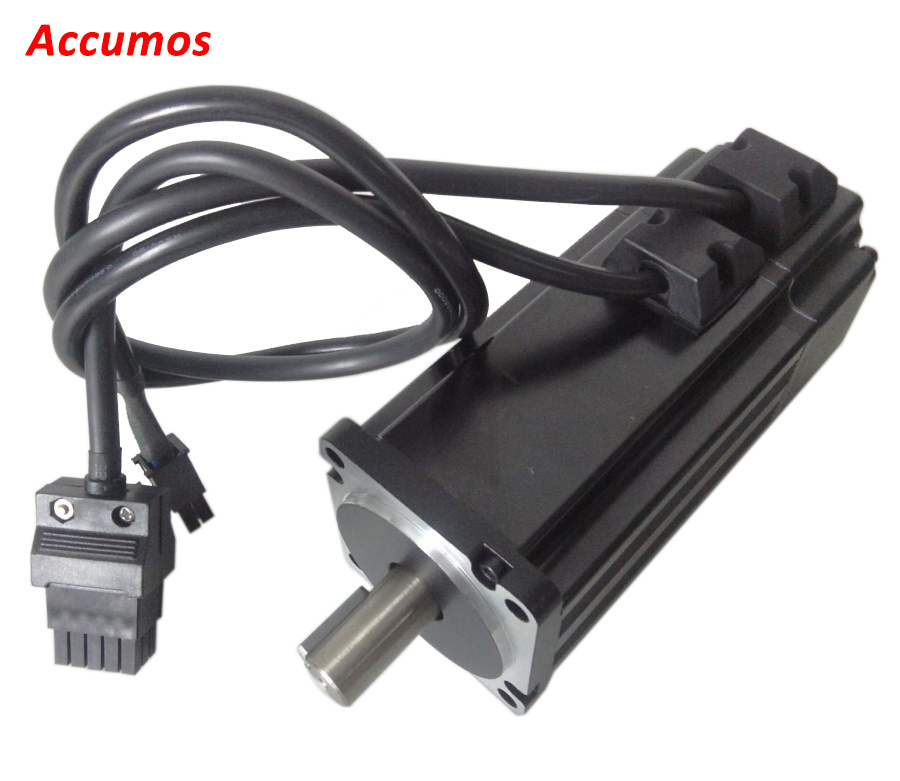

70mm DC Brushless Electrical Servo Motor (70AES Series)

Name: 70mm DC Brushless Electrical Servo Motor (70AES Series)
Brand: all-electronics-online.com
SKU: 734053622
Availability: InStock
Rating: 4.5 (39 reviews)

Price:	US $ 53.4/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	70AES Series
Rotor Structure:	12 Slots Design for Low Cogging
Insulation Class:	Class B or Higher on Request
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce, RoHS
Brand:	Accumos

Product Description

70AES Series DC Brushless Motor
12 slots design for low cogging
Insulation class B, higher insulation class on request
Mutiple Lines of encoder available
Sintered Neo Magnet

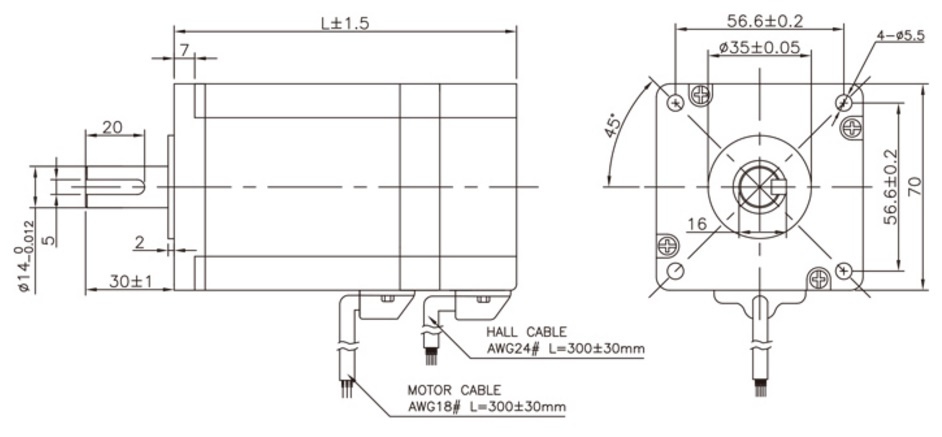

Mechanical

Performance Data

Model	Unit	70AES100	70AES200	70AES300
Supply Voltage(reference)(Vs)	VDC	48	48	48
Rated Continuous Torque(Tcr)	Nm	0.51	1.02	1.50
Rated Speed at Cont. Torque(Scr)	Rpm	3000	3000	3000
Rated Continous Stall Current(Ics)	A	5.40	10.47	15.41
Rated Continous Output Power(Po,c)	W	159	319	470
Rated Peak Torque(Tpr)	Nm	1.50	3.00	4.50
Rated Peak Current(Ipr)	A	14.69	29.16	43.72
Torque Constant(KT)	Nm/A	0.1089	0.1089	0.1089
Ke(Voltage constant)	V/krpm	11.40	11.40	11.40
Terminal Resistance(Rmt)	Ω	0.78	0.28	0.19
Inductance(L)	mH	1.60	0.80	0.45
Insulation Class		B	B	B
Rotor Inertia(Jr)	Kg m²	3.70E-05	7.40E-05	1.10E-04
Motor Weight(Wm)	kg	1.30	2.10	2.80
Motor Length(Lm)	mm	88	118	148

More special design could be availabled. Looking forward to cooperating with you.

Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
