72 Core Distribution Optical Tight Buffer Optical Cable (GJPFJV)

Name: 72 Core Distribution Optical Tight Buffer Optical Cable (GJPFJV)
Brand: all-electronics-online.com
SKU: 811103845
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	Negotiablepieces
Min Order:	1000pieces
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Indoor Cable
Application:	Telecommunication
Certification:	ISO9001
Type:	Indoor Cable
Connection Structure:	Patch Cable
Core:	1 Core or 2 Core
Sheath Material:	PVC or LSZH

Product Description

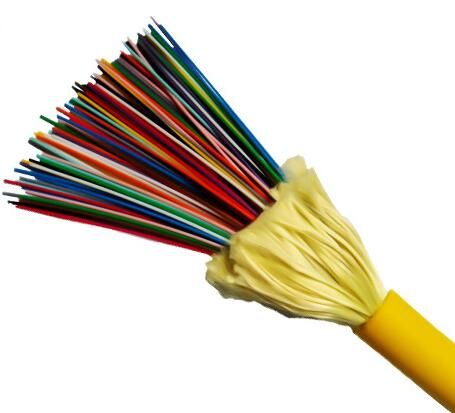

72 Core Distribution Optical Tight Buffer Optical Cable (GJPFJV)

Product Description

These cables are used as indoor distribution cables due to ease of their termination and connection.
The installer can recognize saving from lower cost of termination of Tight buffer cables.

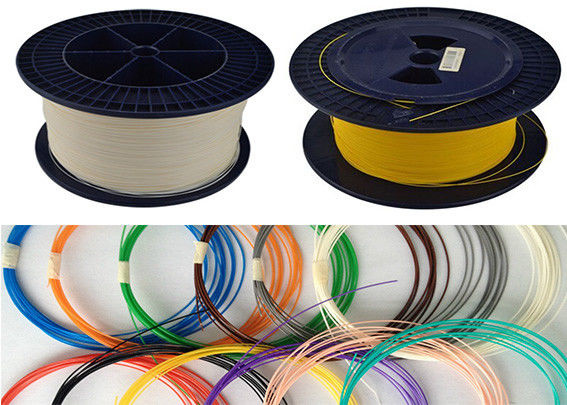

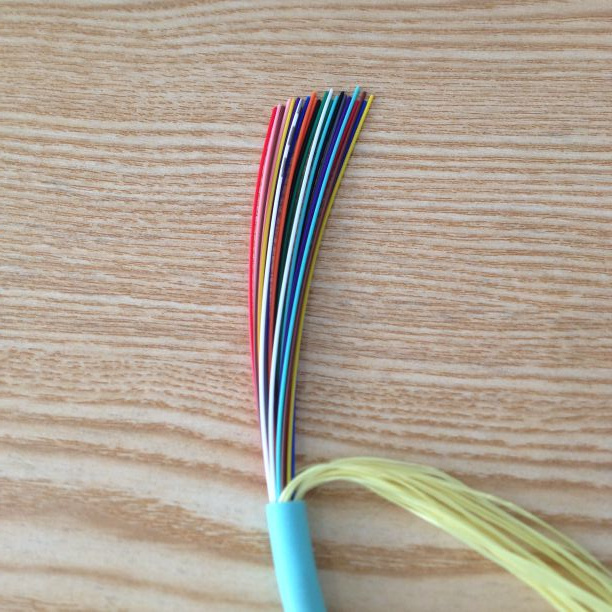

They have high moisture resistance and can be routed across multiple bends. Each fiber is mechanically
reinforced with two successive sheaths of 400µm and 900µm which enables direct termination of connectors.
Excellent strip force stability, ber geometrical dimension and transmission performance meets the customer
demand. Available in PVC, LSZH, Plenum outer sheath and tight buffer: 900µm, 600µm. The cable is specially
designed for indoor applications like floor distribution, interconnection and equipment connection.

Complied With Or Exceeds Standard
.  ITU-T G652.D                                      .  ITU-T G651.1 OM1 OM2 OM3 OM4
.  ITU-T G657.A                                      .  IEC60793-2-10  type A1a.1/A1b OM1/OM2
.  IEC60793-2-10  type A1a.2 OM3        .  IEC60793-2-10  type A1a.3 OM4
.  ISO/IEC 11801 , ISO/IEC 24702         .  IEEE 802.3z Gigabit Ethernet
.  ANSI/TIA/EIA 568C.3                          .  ROHS Compliant Directive 2011/65/EU(ROHS2.0)

Mechanical & Environmental Characteristics

ITEM	Value
Max. Tensile Load (Short Term)	1500N
Max. Tensile Load (Long Term)	600N
Max. Crush Load (Short Term)	2000N/100mm
Max Crush Load (Long Term)	1000N/100mm
UL Fire Rated	OFNR
Operating Temperature	-20°C to +60°C
Storage Temperature	-40°C to +85°C
Sheath Material	Standard: PVC Optional: LSZH, PE or other

Distribution Tight Buffer Optical Cable (GJPFJV)

Optical Characteristics
Of all the differences between multimode & singlemode fiber, the most fundamental differences are the
size of the fiber's core and the associated attenuation or loss and bandwidth of the fiber. The smaller the
core diameter, the higher the fiber's bandwidth and the lower the attenuation (loss in dB per kilometer).
The fiber's attenuation and bandwidth are also dependent on wavelength.

Singlemode was for high-speed longdistance transmission and multimode (in either the 50 µm or 62.5 µm
core diameters) was used for lower speed short distance applications. Multimode 50 µm fiber had a lower
cost and higher modal bandwidth than multimode 62.5 µm core fiber. Bandwidth is a measurement of the
data carrying capacity of the fiber. A higher bandwidth fiber carries more data. See table below.

Fiber Type	Max. Attenuation (dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Min.Gigabit Ethernet Link Distance (m)
	Max. Attenuation (dB/km)				Min.Overfill Launch Bandwidth (Mhz.km)		Gigabit		10Gigabit
	850nm	1300nm	1310nm	1550nm	850nm	1300nm	850nm	1300nm	850nnm
OM1 62.5/125µm	≤2.7	≤0.6	-	-	≥500	≥600	275	550	-
OM2 50/125µm	≤2.3	≤0.6	-	-	≥500	≥500	750	600	150
OM3 50/125µm	≤2.3	≤0.6	-	-	≥1500	≥500	1000	600	300
OM4 50/125µm	≤2.3	≤0.6	-	-	≥3500	≥500	1100	600	550
G652D 9/125µm	-	-	≤0.30	≤0.18	-	-	-	-	-
G657A 9/125µm	-	-	≤0.35	≤0.21	-	-	-	-	-
