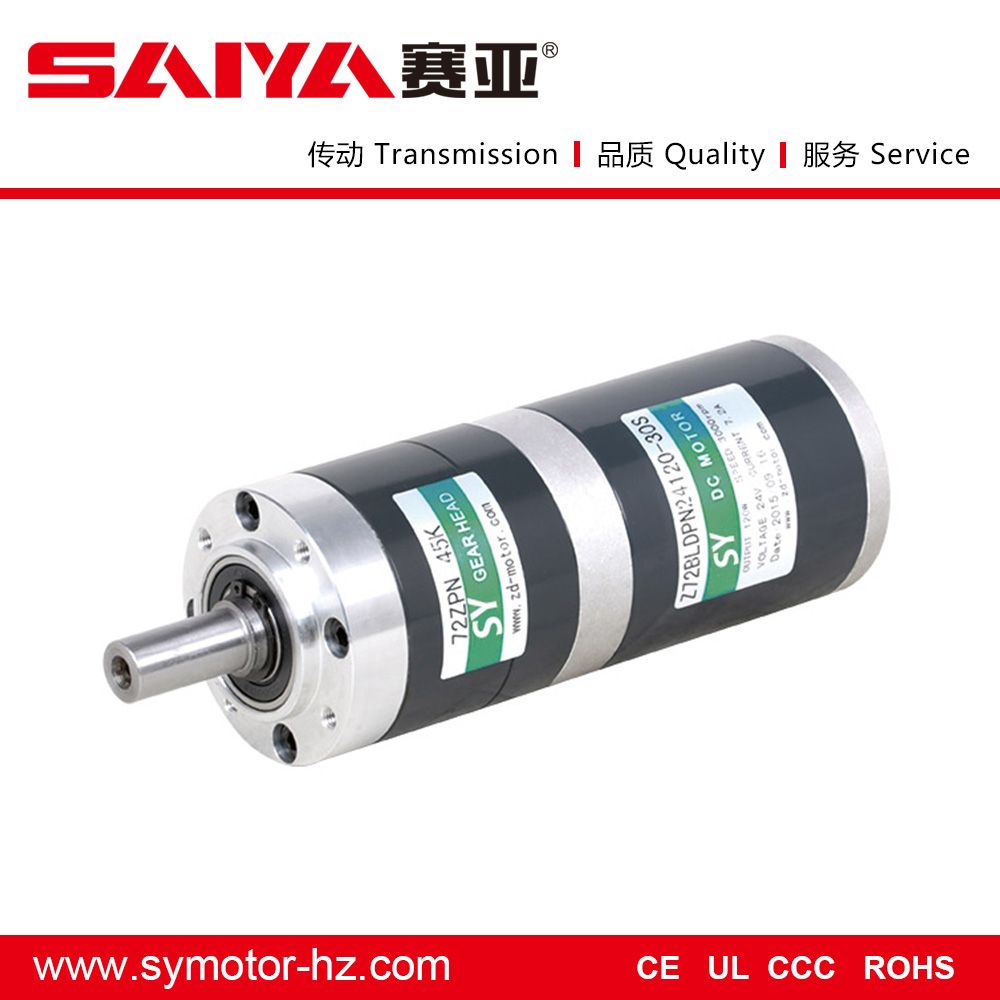

72mm DC Planetary Gearbox Motor

Name: 72mm DC Planetary Gearbox Motor
Brand: all-electronics-online.com
SKU: 803973015
Availability: InStock
Rating: 4.3 (80 reviews)

Price:	US $ 86/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Z72BLDPN24120-30S
Item Name:	72mm DC Planetary Gearbox Motor
Votage:	24V
Power:	120W
Rated Torque:	0.382n.M
Rated Speed:	3000rpm
Size:	72mm
Application:	Industrial
Operating Speed:	Constant Speed
Excitation Mode:	Shunt
Structure And Working Principle:	Brushless
Number Of Poles:	3
Type:	Zpn
Certification:	Ce, UL, RoHS
Brand:	Sy Motor

Product Description

72mm DC Planetary Gearbox Motor
Features:
The planetary gearbox for transmission is widely matched with DC motor and BLDC motor.
It shows the characters of high torque and controlablity as well as the high lasting torque.
The perfect combination fully expresses the product's smaller and high torque.

Types:
BLDP: Brushless DC motor matched with planetary gearbox
DP: Brush DC motor with inner brush(no brush replacement from outside), matched with planetary gearbox
PM: Tansmission planetary(metal)
PK: Tansmission planetary(plastic)

The brief introduction of our company:

Our company supplys different kinds of products. High quality and reasonable price.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

To perfect our service, we provide the products with good quality at the reasonable price.

The Products Of Our Company:

Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:

1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;

2) Small AC Gear Motor;

3) Planetary Gear Motor.

The Usages Of Our Products:

They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.

You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.

We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.

Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
