72W Power Adapter for 360 Degree Round Security Camera
| Price: |
Negotiable/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
AD-2430BA |
| Usage: |
Security System/LED Lighting |
| Output Type: |
AC |
| Connection: |
Plug In |
| Type: |
ODM/OEM |
| Brand: |
Sanyi Power |
Product Description
Product Description

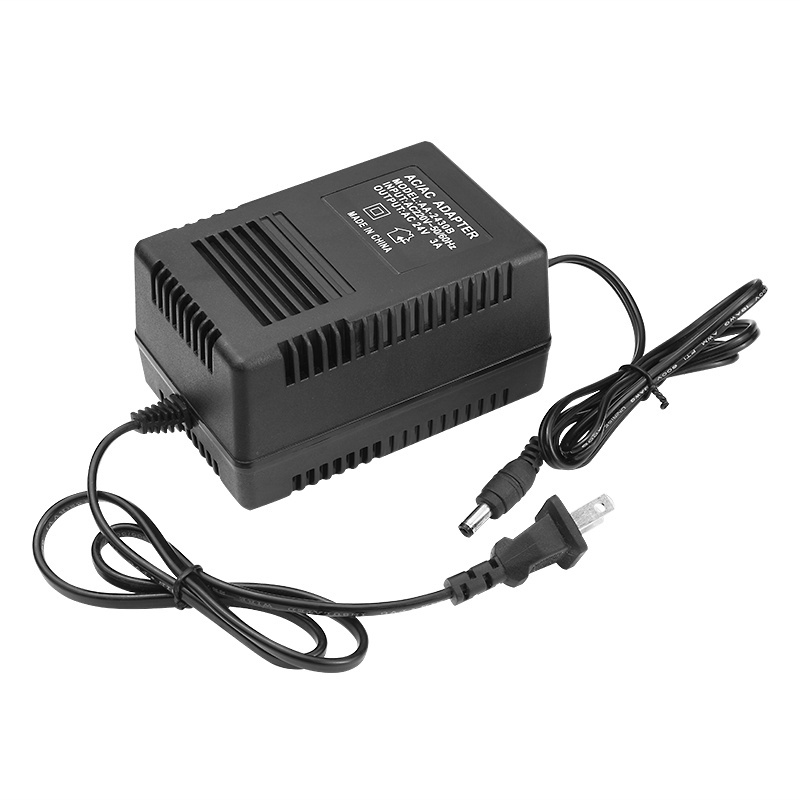

72W AC-AC Low Frequency Linear Power adapter for 360 degree round security camera 1.Characteristic:>International Universal AC Input/Full range
>Output Voltage stability is high
>100% Full load burn-in test
>Cooling:Self-cooling
>High efficiency, long life and high reliability
>Can be customized according to user selection2.Specification:| MODEL | AA-1260BA | AA-1548BA | AA-2430BA | AA-3620BA | AA-4815BA |
| Output | DC Voltage | 12V | 15V | 24V | 36V | 48V |
| Current | 6A | 4.8A | 3A | 2A | 1.5A |
| Current Range | 0~6A | 0~4.8A | 0~3A | 0~2A | 0~1.5A |
| Rated Power | 72W | 72W | 72W | 72W | 72W |
| Ripple & Noise Max | / | / | / | / | / |
| Voltage Adj. Range | ±10% | ±10% | ±10% | ±10% | ±10% |
| Voltage Tolerance | ±7% | ±7% | ±6% | ±5% | ±5% |
| Line Regulation | ±0.5% | ±0.5% | ±1% | ±1% | ±1% |
| Load Regulation | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Setup,Rise Time | 2000ms,200ms,100ms/220Vac (Full load) |
| Hold up time Typ. | 100ms/220Vac (Full load) |
| Input | oltage Range | 100~240Vac |
| Frequency Range | 50/60Hz |
| Efficiency(Typ.) | 76% | 75% | 76% | 77% | 75% |
| Ac Current(Typ.) | 1.03A/220Vac |
| Inrush Current Typ. | Cold Start:35A/220Vac |
| Leakage Current Typ. | 3mA |
| Protection | Over load protection | 110%~135% |
| Protection type:Hiccup mode,recovers automatically after fault condition is removed |
| Over Voltage protection | 115%~150% |
| Protection type:Hiccup mode,recovers automatically after fault condition is removed |
| Over-temperature protection | Protected Mode: crystal internal contact temperature exceeds 140 ºC, turn off the output, when the temperature returns to normal automatic recovery |
| Environment | Working Temp | -10ºC~60ºC(Refer to "derating curve ") |
| Working Humidity | 20~90%RH,non-condensing |
| Storage Temp,Humidity | -30ºC~75ºC 10~98%RH,non-condensing |
| Temp Coefficient | ±0.03% ºC(0~50ºC)(+5V) |
| Vibration | 10~500Hz,5G 10Min/1 cycle,period for 60min,each along X,Y,Z axes |
| Safety & EMC | Safety Standards | GB4943,EN60950 |
| Withstand Voltage | I/P-O/P:2KVAC |
| Isolation Resistance | I/P-O/P I/P-FG O/P-FG:100M Ohms/500VDC/25ºC/70%RH |
| EMI Conduction | Compliance to :EN55022, EN61000-3-2,3. FCC part15,GB9254 class B,GB17625.1 |
| EMS Immunity | Compliance to :EN61000-4-2,3,4,5,6,8,11,light industry level, criteria A |
| Others | MBTF | ≥1415.6khrs. |
| Dimension/Packing | 120*81*64mm(L*W*H) /2.2KG;10pcs/22Kg |
| Note | If no special instructions are specified,all the specifications are measured at the input of 230VAC,the rated load,the ambient temerature of 25ºC |
| Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor |
| Curancy:contains setting error,linear adjustment rate and load adjustment rate |
| Line regulation is measured from low line to high line at rated load. |
| Load regulation measurement: from 20% to rated load of 100% |

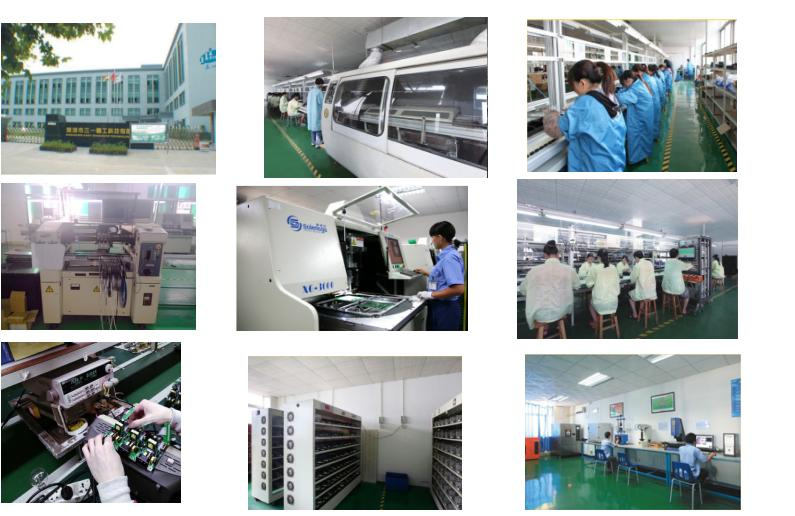

4.Factory Profiles
5.Certificate
Web: www.szsanyi.com
Contact: Tina Zhang
Phone: +8613826545080
Tel: +86-755-28986673
Add: Floor4, Block1, Hongjiatai Industrial Area, Xintun Village, Ailian Community,
Longgang District, Shenzhen 518172, China
SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.
We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.
We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
