| Prod Model: |
QR540 Cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Impedance: |
75 Ohms |
| Capacity: |
55 PF/M |
| Inner Conductor: |
3.15mm CCA/Cu |
| Insulation: |
13.03mm Foam PE |
| Outer Conductor: |
13.72mm Al. Tube |
| Sheath: |
15.49mm PE |
| Thickness Of Jacket: |
0.89mm |
| Thickness Of Outer Conductor: |
0.40mm |
| Qr540 Cable: |
Coaxial Cable Qr540 |
| Trunk Cable Qr540: |
P3 540 Trunk Cable |
| Application: |
Coaxial Cable |
| Conductor Material: |
BC/CCS/CCA/TC/CU/CCAG |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Brand: |
Hf/OEM |
| Type: |
Coaxial Cable |
Product Description

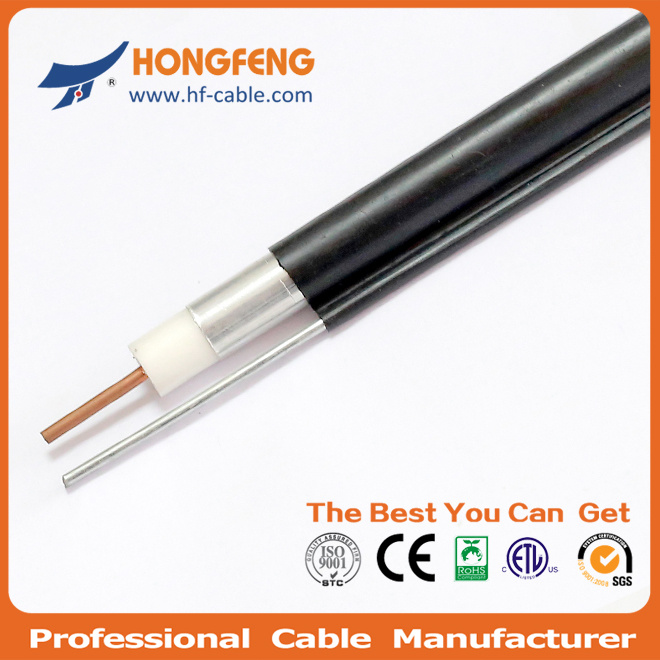

Trunk coaxial Cable QR540
1) Basic Construction
Center Conductor: 3.15mm Solid Copper/Copper Clad Aluminum
Dielectric: 13.03mm Foam PE
Outer Conductor: 0.25-0.6mm Aluminum Tube
Jacket: 15.49mm PVC / PE
Jacket Thick.: 0.89mm
Jelly/APD Per Customer' Special Requirement
2)Basic Characteristics
Nominal Impedance: 75± 3 Ohm
Nominal Capacitance: 55± 3pF/m
Nominal Velocity of Propagation: 88%
Sparker Test: 4000VAC
SRL: 30-470: 20dB
470-1000: 20dB
Component |
Inches |
mm |
Nominal Center Conductor Diameter |
0.124 |
3.15 |
Nominal Diameter Over Dielectric |
0.514 |
13.03 |
Nominal Diameter Over Outer Conductor |
0.540 |
13.72 |
Nominal Outer Conductor Thickness |
0.0135 |
0.343 |
Nominal Diameter Over Jacket |
0.610 |
15.49 |
Nominal Jacket Wall Thickness |
0.035 |
0.89 |
Messenger Version |
Diameter of Steel Messenger |
0.109 |
2.77 |
Dual Jacket Version |
Nominal Jacket Wall Thickness of Outer Jacket |
0.045 |
1.14 |
Nominal Diameter Over Outer Jacket |
0.700 |
17.78 |
Armored Versions |
Nominal Diameter Over Corrugated Armor |
0.680 |
17.39 |
Nominal Armor Thickness |
0.010 |
0.2 |
Nominal Diameter Over Outer Jacket |
0.760 |
19.43 |
Nominal Thickness of Outer Jacket |
0.040 |
1.02 |
Our Product Range
1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
