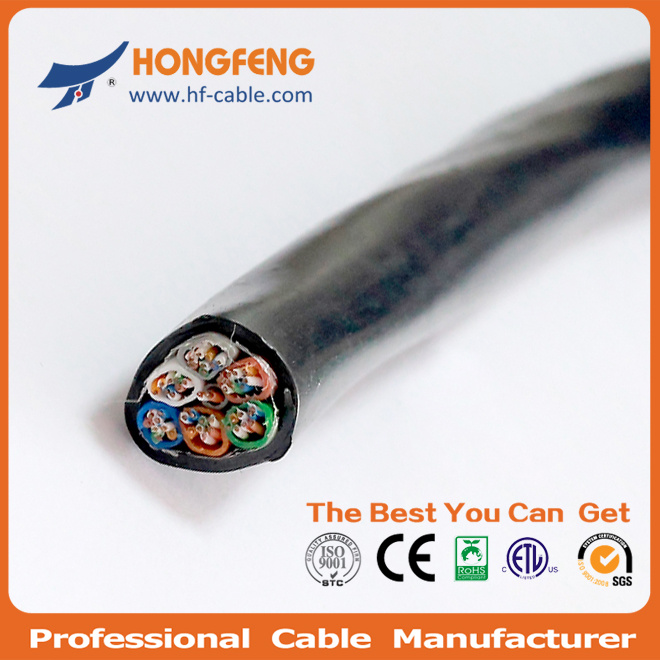

75 Ohms Telecom 8 Core/16 Core Coaxial Cable Bt3002

Prod Model:	BT3002 8/16 core
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Place Of Origin:	Zhejiang, China (Mainland)
H.S. Code:	85442000
Inner Conductor:	Cu, Tc
Dielectric:	Foamed or Solid PE Insulation
First Shield:	Tc, Bare Copper Braiding 95%
Second Shield:	Tc, Bare Copper Braiding 95%
Outer Jacket:	PVC
Packing Method:	100m, 250m, 305m, 500m, 1000m, etc.
Certificates:	ISO9001/Ce/RoHS/UL/ETL
Application:	Coaxial Cable
Conductor Material:	Copper
Cover Material:	PVC
Certification:	ETL
Type:	Coaxial

Product Description

1. Constructions and Electrical Characteristics:


75 ohm BT3002 coaxial cable
Inner conductor: Bare copper 0.31mm
Insulation: Solid PE1.95mm
Shield 1st: Tinned copper braid 95% coverage
Shield 2ND: Tinned copper braid 95% coverage
Jacket: PVC 3.55 mm

8core BT3002 coaxial cable
Overall Jacket: 13.6mm PVC

16core BT3002 coaxial cable
Overall Jacket: 18.9mm PVC


Electrical Characteristics
Capacitance(pF/m) 66.0
Impedance(Ω ) 75.0
Velocity of Propagation(%) 67.0
Conductor DCR(ohm/km) 236




Mainly products:

1) RG series Coaxial Cable: Rg59, RG6, rg7, rg8, rg11, RG58, rg142, rg174, rg178, rg213, rg214, RG316, etc;
2) JIS series Coaxial Cable: 1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc;
3) Vatc series Coaxial Cable: 17vatc, 19vatc, 21vatc, 25vatc, kx6a, kx8;
4) TRUNK Cable: 412, 500, 540;
5) LMR SERIES: LMR200, LMR400, LMR600;
6) Network Cables: LAN Cable CAT3, LAN Cable CAT5, LAN Cable CAT5e, LAN Cable CAT6, LAN Cable CAT7;
7) Combined Cable: Siamese Cables: RG59+2C, RG6+LAN cable.



Attenuation@20 . C	1 MHz	2.1 dB/100m
	4 MHz	4.2 dB/100m
	17 MHz	8.56 dB/100m
	69 MHz	17.33 dB/100m
	100 MHz	21.5 dB/100m
