| Prod Model: |
BT2001/2002/2003/3002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| H.S. Code: |
85442000 |
| Inner Conductor: |
Cu, Tc |
| Dielectric: |
Foamed or Solid PE Insulation |
| First Shield: |
Tc, Bare Copper Braiding 95% |
| Second Shield: |
Tc, Bare Copper Braiding 95% |
| Outer Jacket: |
PVC |
| Packing Method: |
100m, 250m, 305m, 500m, 1000m, etc. |
| Application: |
Coaxial Cable |
| Conductor Material: |
Copper |
| Cover Material: |
PVC |
| Certification: |
ETL |
| Type: |
Coaxial |

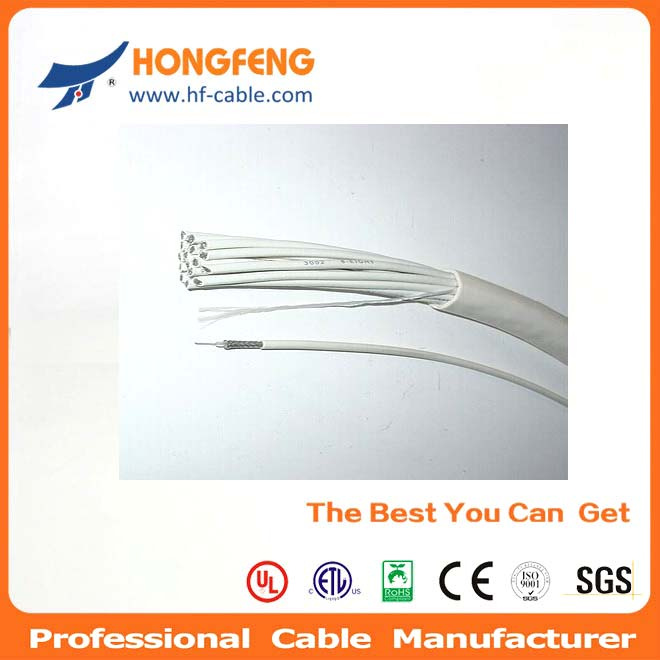

Product Description
1. Constructions and Electrical Characteristics:
BT2001 Single Cable Spec:Inner conductor: 7*0.2mm BC
Insulation: 2.45mm Solid PE
1st Braiding: Copper Braid/ TC Braid
2ND Braiding: Copper Braid/ TC Braid
Jacket: 4.4mm PVC/ LSZH
BT2002 Single Cable Spec:Inner conductor: 7*0.2mm BC
Insulation: 2.5mm FPE
1st Braiding: Copper Braid/ TC Braid
2ND Braiding: Copper Braid/ TC Braid
Jacket: 5.1mm PVC/ LSZH
BT2003 Single Cable Spec:Inner conductor: 1*0.61mm BC
Insulation: 3.70mm PE
1st Braiding: Copper Braid/ TC Braid
2ND Braiding: Copper Braid/ TC Braid
Jacket: 6.7mm PVC/ LSZH
BT3002 Single Cable Spec:Inner conductor: Bare copper 0.31mm
Insulation: Solid PE1.95mm
Shield 1st: Tinned copper braid 95% coverage
Shield 2ND: Tinned copper braid 95% coverage
Jacket: PVC 3.55 mm
8core BT3002 coaxial cableOverall Jacket: 13.6mm PVC
16core BT3002 coaxial cableOverall Jacket: 18.9mm PVC
Electrical CharacteristicsCapacitance(pF/m) 66.0
Impedance(Ω ) 75.0
Velocity of Propagation(%) 67.0
Conductor DCR(ohm/km) 236
| Attenuation@20 . C | 1 MHz | 2.1 dB/100m |
| 4 MHz | 4.2 dB/100m |
| 17 MHz | 8.56 dB/100m |
| 69 MHz | 17.33 dB/100m |
| 100 MHz | 21.5 dB/100m |
Mainly products:1) 75 Ohm Coaxial Cable:
RG59, RG6, RG7, RG11, etc.
2) 50 Ohm Coaxial Cable:
RG58, RG142, RG174, RG178, RG213, RG214, RG316, etc.
3) MIL-C-17 Military Standard Cable:
RG59 A/U, RG59 B/U, RG6 A/U, RG11 A/U, RG58 A/U, RG58 B/U, RG58 C/U, RG213, RG214, etc.
4) Trunk Distribution Cable:
P3.412 JCA/JCAM, P3.500 JCA/JCAM, P3.565JCA/JCAM, QR320 JCA/JCAM, QR540 JCA/JCAM.
5) RF Coaxial Cable:
1/2', 1/4', 1/8', 7/8', 1-1/4',1-5/8', 1-7/8', LMR195, LMR200, LMR300, LMR400, LMR500, LMR600, 3D-FB,4C-FB,5D-FB, 7D-FB, 8D-FB, 10D-FB, etc.
6) Network Cables & LAN Cable:
CAT3, UTP/FTP CAT5, UTP/FTP/SFTP CAT5e, UTP/FTP CAT6, UTP/FTP CAT6a, UTP/FTP CAT7, etc.
7) Composite Cable:
RG59+2C Siamese Cable, RG6+2C Siamese Cable, 2RG59+2RG6, 2RG6+2CAT5e, etc.
8) British Standard Coaxial Cable:
BT3002, CT100, CT125, CT165, URM57, URM67, URM70, etc.
9) Japanese Standard Coaxial Cable:
1.5C-2V, 2.5C-2V, 3C-2V, 3C-2VR, 4C-2V, 5C-2V, 7C-2V, 10C-2V, 3D-2V, 5D-2V, 8D-2V, 10D-2V, etc.
10) French Standard Coaxial Cable:
11VATC/PATC, 17VATC/PATC, 19VATC/PATC, 21VATC/PATC, 25VATC/PATC, KX6/A, KX8, etc.
11) Alarm Cable, Control Cable:
Unscreened PVC Jacketed Alarm Cable, Screened PVC Jacketed Alarm Cable.
12) Optic Fiber Cable
GYXTW, GYXTC8S, GYTC8A, GYTA, GYFTY, GYTA53, GYXTC8S, GYXTS, Indoor Fiber Cable, etc.
