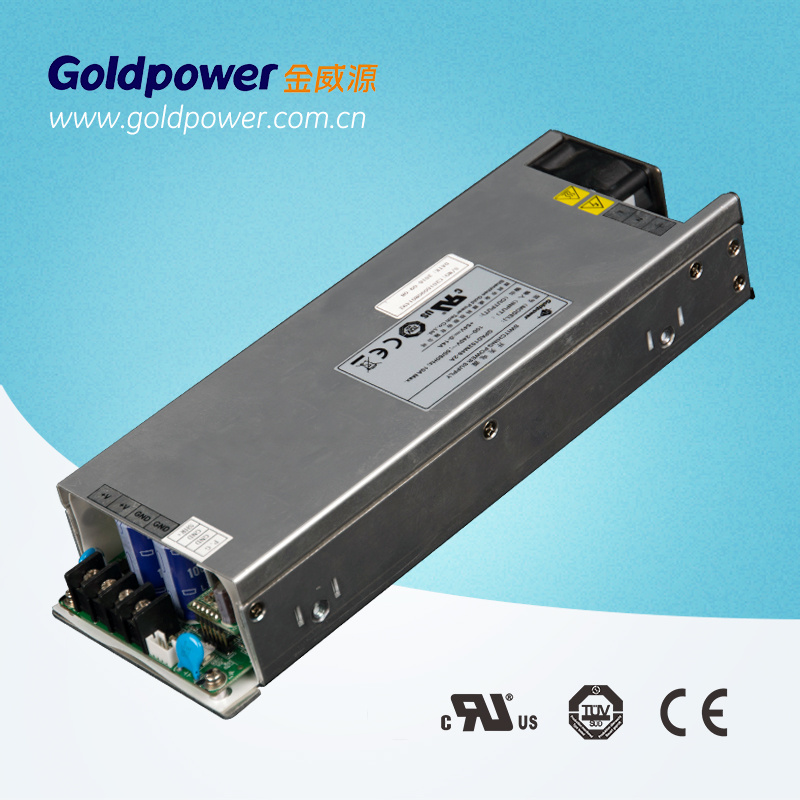

750W 48V High Power Customized LED Display Power Supply

Name: 750W 48V High Power Customized LED Display Power Supply
Brand: all-electronics-online.com
SKU: 733192882
Availability: InStock
Rating: 5 (27 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD152M48-2A
Usage:	Construction
Output Type:	Dual
Driving Method:	LED Regulator Voltage
Power Supply Voltage:	48V
Brand:	Goldpower

Product Description

750W 48V high power Customized LED Display Power Supply is our 48V high power Series LED display power supply.

Feature:
1. Meet the kind of communication EMC requirements,excellent electromagnetic compatibility,high reliablity.
2. Max power up to 750W, can cooperate with several modules functioned as derating voltage installation.
3. High efficiency up to 94%, can reduce the operation electric cost by a large margin
4. Supporting 75ºC max working temperature, extreme condition is applicable

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~264	Vac
Input inrush current	40	A
Input frequency	47~63	Hz
Output
Output voltage range	42~58	Vdc
Output efficiency	95	%
Stabilized voltage precision	±2	%
Load regulation	±1	%
Turn-on output delay	2	s
Ripple & Noise	480	mV
Dynamic response	±5	%
MTBF	≥200,000	H
Environmental
Working temperature	-40~75	ºC
Relative humidity	5-95	%
Storage temperature	-40-85	ºC
Altitude	5000	m
General Characteristics
Insulation resistance	≥10	MΩ
Dimension	2306326 mm
Weight	≤1.5Kg

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
