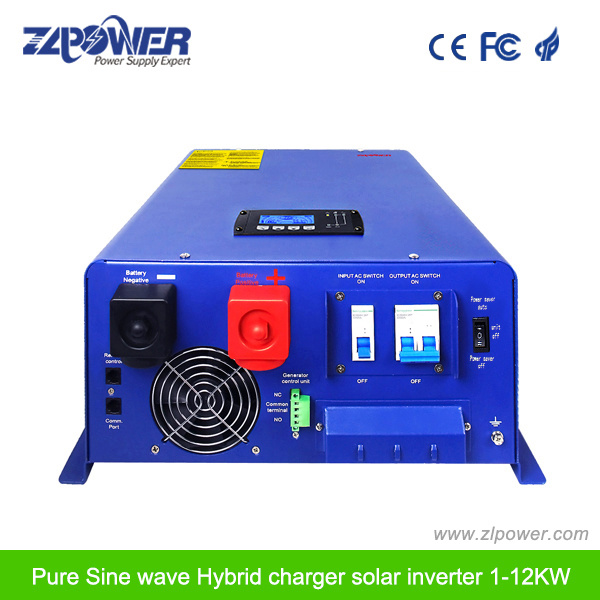

8-12kw off Grid Hybrid Inverter with MPPT Solar Charger Controller
| Price: |
Negotiable/Piece |
| Min Order: |
5/Piece |
| Pay Type: |
T/T |
| Prod Model: |
GW Plus Series |
| Input Voltage: |
12VDC/24VDC/48/72VDC |
| Output Voltage: |
120VDC/240VDC |
| Output Frequency: |
50/60Hz |
| Peak Power: |
3 Times of Rating Power |
| Protection: |
Low Bsttery, Over Charging, Over Load, Over Temp |
| Display: |
LED+LCD |
| Power Factor: |
0.9-1.0 |
| Appliances: |
Refrigerators,Motors,Pumps,Compressors |
| AC/DC Priority: |
Yes |
| Warranty: |
2 Years |
Product Description
Features:
AC/Solar charge hybrid off grid inverter.
LED/LCD display, Enhanced functions setting via LCD, Man-machine intelligent design.
Built-in 40A/60A MPPT solar charger controller.
External remote display panel.
Adjustable 5 stages AC charging current. AC charging also can be closed.
AC/DC priority modes can be set.
Generator reatart signal(Dry contact0.
3 times peak power, Strong loading capacity.
Overload, output short-circuit protection.
Specifications
| Model Parameters | GW Plus8KW | GW Plus10KW | GW Plus12KW |
AC
Input | Nominal Power | 8000W | 10KW | 12KW |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 230VAC |
| Low Line Disconnect | 184Vac±4%(Normal) or 135Vac±4%(Wide) |
| Low Line Re-connect | 194Vac±4%(Normal) or 145Vac±4%(Wide) |
| High Line Disconnect | 263Vac±4%(Normal) or 263Vac±4%(Wide) |
| High Line Re-connect | 253Vac±4%(Normal) or 253Vac±4%(Wide) |
| Max AC input Voltage | 270Vac(Max) |
| Frequency | 50Hz:41-54Hz / 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | ±10%rms |
| Nominal Output Frequency (Hz) | 50Hz ± 0.3Hz / 60Hz ± 0.3Hz |
| Transfer Time | 20ms(max) |
Solar
charger | Rated Charge Current | 60A |
| PV Input Voltage range | 60-110VDC |
| Max.PV open circuit array voltage | 110Vdc |
| Charger mode | MPPT |
| Efficiency | ≥97% |
AC
Charger | Nominal Charger Current | 35A/50A/70A/90A(According to the inverter model) 5 stages adjustable charging current |
| Over charge Protection | Bat.V≥62.0VDC for 48V battery,beeps 0.5s every 1s & fault after 60s |
| Efficiency | Efficiency(Battery Mode) | ≥87% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 48VDC |
| Low Battery Alarm | 42VDC±1.2VDC |
| High DC input Alarm & Fault | 64VDC±1.2VDC |
System
Paramete | Over-Load Protection | 110%150% beeps 0.5s every 1s and Fault after 20s |
| Output Short Circuit Protection | Current limit (Fault after 10s) |
| Surge Rating(10s) | 1:3(VA) |
| Protections | Low battery, over charging, over load, over temp |
General
Specifications | Storage Temperature | -15ºC~60ºC |
| Audible Noise | 60dB max |
| cooling | Forced air, variable speed fan |
| Dimension(L*W*H) | 627*416*204mm |
| Net Weight(kg) | 48 | 55 | 61.5 |
