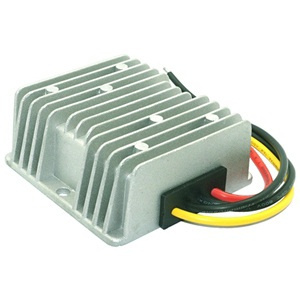

8-40VDC to 12VDC 10A 120W DC Boost Buck Power Converter

8-40VDC to 12VDC 10A 120W DC Boost Buck Power Converter
Price: US $ 14.5-20/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: SDS8-40S1210
Input Voltage Range: 8-40VDC
Output Voltage: 12VDC
Output Current: 10A
Power: 120W
Efficiency: up to 90%
Protection: Full Protection
Size: 74*74*32mm
Working Temperature: -40 to +80 Degree C
Waterproof: IP68
Weight: 290g
Output Type: Single
Warranty: 1 Year
Output Power: 101 - 200W
Connection Mode: Series Switching Power Supply
Starting Mode: Self-excited Switching Power Supply
Voltage Regulating Mode: Width Modulation Type
Power Supplying System: Terminal Power Distribution Equipment
Certification: CE
Input Voltage: 8-40VDC
Brand: Smun

Product Description

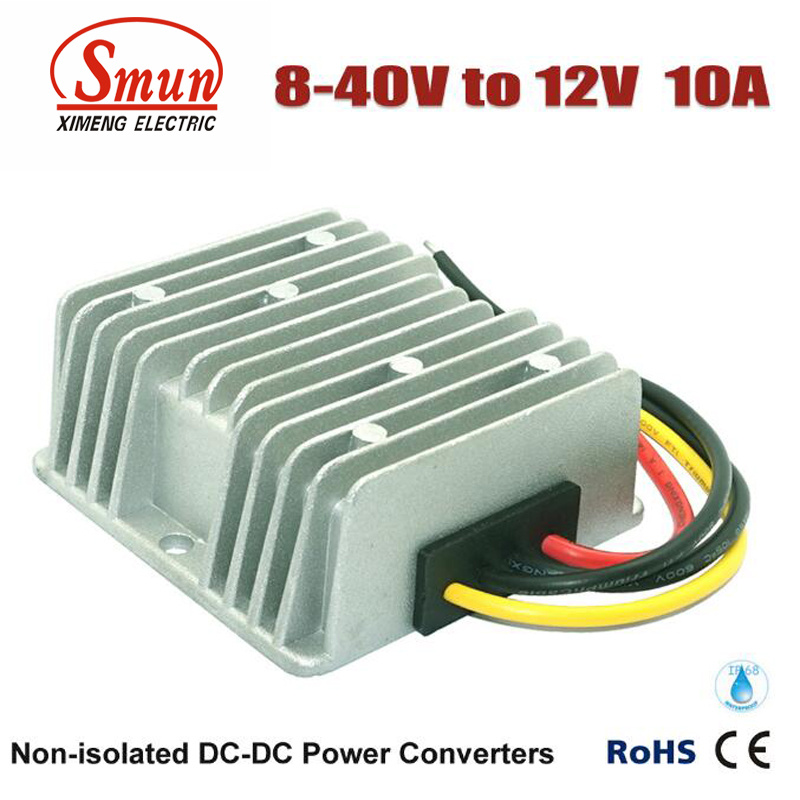

DC8-40V to DC12V 10A Power Converters 120W
Features

1. 100% full power & stable current output
2. 100% Imported components
3. Wide input voltage from 8-40Vdc
4. 100% waterproof & anti-shock protection, Ultra compact size, light weight
5. Industry grade DC8-40V to DC12V step-up/down converter, efficiency up to 90%
6. Certificates: CE
7. Waterproof level: IP68
8. Die-cast aluminum shell, epoxy potting, Cooling by free air convection,
9. Protections: Over-current, Over-voltage, Over-temperature, Short-circuit and
Over-load, Auto-recovery when device is back to normal operating
10. Non-Isolated Module
11. 1 year warranty, lifetime up to 100,000 hours.

Specifications
ModelSDS8-40S1210
Input rated voltage9V/12V/24V/36V DC
Input voltage range8-40V DC
Efficiency92% (half load) ; 90% (full load)
Output voltage12V DC
Output current10 Amps
Output rated power120 Watts
Output peak power125%
Voltage regulation< 1%
Load regulation< 2%
Ripple (full load test)< 150mV
No-load current< 25mA
Working Temperature-40°c ~ +80°c
Waterproof ratingIP 68
ProtectionsOver-load, Over-current, Over-temperature, Over-voltage, Short-circuit
Machine size74*74*32mm
Package size98*82*34mm
N. Weight290g
W. Weight300g
Cooling wayFree air convection
CertificationsCE
OtherWhite box packing
Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.

Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
