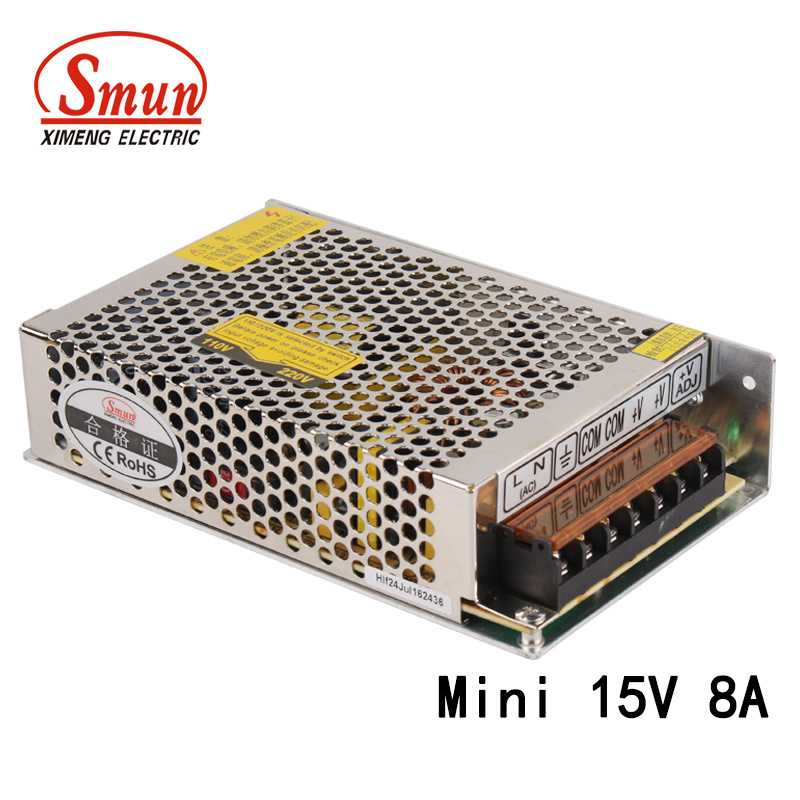

Smun as-120-15 120W 15VDC 8A Mini Switching Power Supply SMPS
| Price: |
US $ 6.6-9.2/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
AS-120-15 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
159*98*38mm |
| Input: |
85-132VAC 170-264VAC 240-370VDC |
| Weight: |
0.45kg |
| Package: |
40PCS/18kg |
| Power: |
120W |
| Efficiency: |
85% |
| Working Temperature: |
-10~+60 Degree C, 20%~90%Rh |
| DC Adjustable: |
10% |
| Safety Standard: |
En60950 UL60950 GB4943 |
| Customized: |
Available |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
101 - 200W |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Width Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Input Voltage: |
110VAC/220VAC |
| Brand: |
Smun |
Product Description

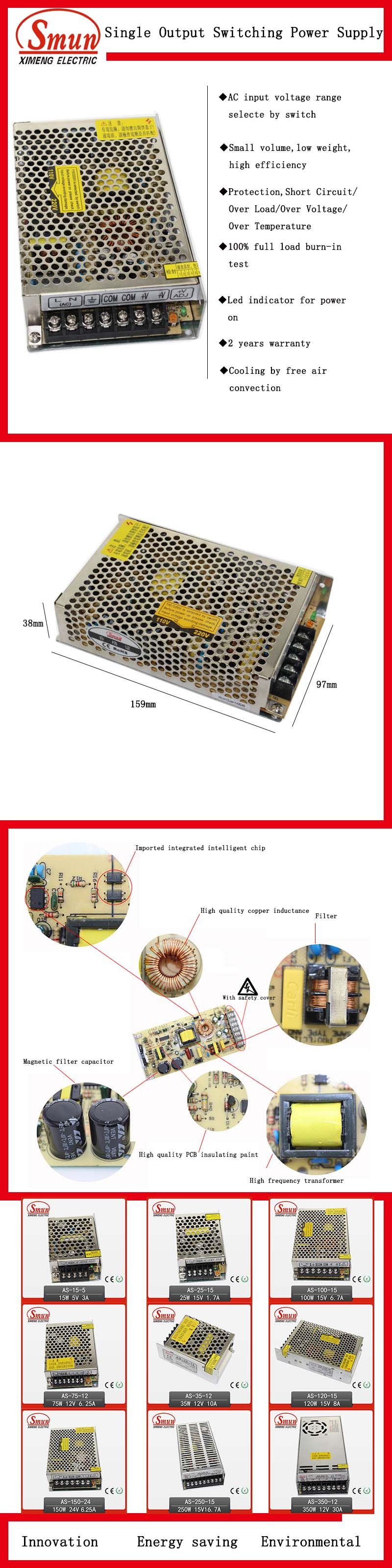

120W Smail Volume Single Output Switching Power Supply(AS-120-15)Our service
1.Your email will be replied with 24 hours
2.All qustions will be answered by our power supply engineer.
3.We have strictly management on the production and quality control.
4.We are real facture and have professional engineer team,can provide custom and OEM service.
5.We have independent IMP&EMP rights.
6.Sample available.
Hope to hear from you soonWarmly welcome to visit our company.We also supply these models of switching power supply| Model |
| AS-120-5 | AS-120-12 | AS-120-15 | AS-120-24 | AS-120-48 |
| Output | DC output Voltage | 5V | 12V | 15V | 24V | 48V |
| Voltage tolerance | ±2.0% | ±1.0% | ±1.0% | ±1.0% | ±1.0% |
| Rated Current | 24A | 10A | 8A | 5A | 2.5A |
| Related Power | 120w | 120w | 120w | 120w | 120w |
| Wave&Noise | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p | 100mVp-p |
| Adjustable range for DC Voltage | ±10% | ±10% | ±10% | ±10% | ±10% |
| Set up,rise,hold up time | 200ms 100ms 20ms |
| Input | Voltage Range | 85 ~132VAC 170-264VAC 47-63HZ 240-370VDC |
| Input Current | 2.4A/115VAC 1.2A/230VAC |
| Efficiency | 81% | 81% | 84% | 84%% | 84% |
| AC inrush current | Cold start current 30A/115V 60A/230VAC |
| Leakage current | <0.5mA/240VAC |
| Protection | Overload | Related output power 105-150% start overload protection |
| Protection type: cutoff output, recovery after restart power |
| Over voltage | 5.75V-6.75V | 13.8V-16.2V | 17.2V-20.2V | 27.6V-32.4V | 55V-64.8V |
| Hiccup mode,recovers automatically after fault condition |
| Environment | Working temp humidity | -10~+60°C 20%~90%RH |
| Stor temp, humidity | -20~+85°C 20%~90%RH Non-condensing |
| Safety | Withstand voltage | I/P-O/P:1.5KVAC 1min |
| I/P-FG:1.5KVAC 1min |
| O/P-FG:0.5KVAC 1min |
| Standard | Safety standard | Fit UL1012 |
| Refer | Design refer to GB4943,UL60950,EN60950 |
| EMC standard | Design refer to GB9254,EN55022 Class A |
| Size | size | L159*W98*H38mm |
| Package | 0.45kg, 30pcs/14kg |

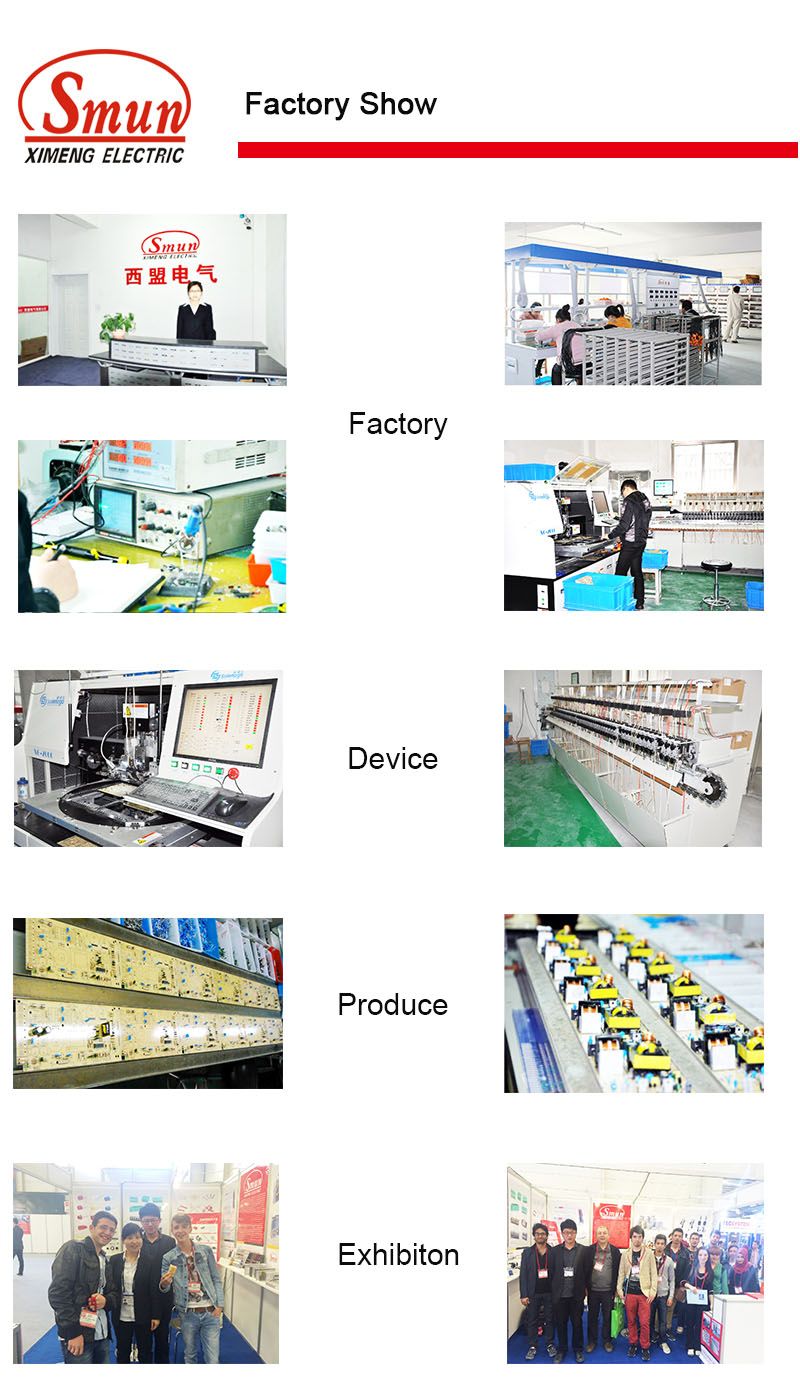

Zhejiang Ximeng Electronic Technology Co., Ltd. specialized in designing R&D production and sale. We have Independent import and export rights. The main products are switching power supply, LED driver power supply, AC/DC adapter, Electrical plug&sockets, Indicator lamp, terminal blocks, cable glands and related wiring accessories, Push button switches, and so on. All products are exported by our company YUEQING XIMENG IMP&EXP. Co., Ltd.
Our company is a high-tech company specialized in designing. R&D. Production and sale, the products Switching Power Supply are with the characteristics of the low price, high efficiency, high reliability, long lifetime and so on. Our products are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting projects, communication, instrumentation, etc. Our Switching Power Supply is the ideal upgraded product to replace traditional controlling transformer. The design of this series of products is in accordance with such international standards as American UL1012, German TUVEN60950, IEC950, UL1950 and EC EMCLVD. Relying on high-quality imported components, advanced production techniques and perfect testing equipment, we create high-quality XIMENG products. XIMENG products sell well in domestic markets and in Europe and Southeast Asia. Our company focuses on innovating science and technology, wining a reputation with quality, and pursuing development with sincerity. We always update our equipment and create new products constantly, striving to follow the core mind of Science and Technology to improve life and supply wide customers with sincerity, high-quality products and highly efficient service. In order to thanks to the long-term support and the cooperation of customers at home and abroad, as well as develop new business field, our company warmly welcomes all the customers to come for instruction and discuss cooperation. Let us develop together and create our prosperous future!
