8 Channel 3U-12lots Chassis CWDM Mux&Demux Plug-in Module

Product Overview

Coarse Wavelength Division Multiplexing, 20nm Channel Space, 8 Wavelengths Single Fiber 4 Channels Bi-Direction,
3RU 19" rack mount chassis, 12 slots, with 5% power monitor

Features

Cost-effective CWDM technology
Terminates eight wavelengths
Reliable passive thin film filter WDM optical technology
Low optical insertion loss
Low-profile modular design

Applications

Metro Network
Access Network
FTTH Application
Unidirectional network traffic rings
Point-to-point applications
CATV Fiberoptic Links

Performance Specification

Parameter		Unit	Thin Film Coarse WDM
Channel spacing		nm	20
Number of Channels		ch	8
Central Wavelength		nm	1471, 1491, 1511, 1531, 1551, 1571, 1591, 1611
Operation Wavelength		nm	ITU±6.5
Ripple in Passband		dB	≤ 0.4
Power Monitor Rate		%	5
Channel Insertion Loss (with connector)		dB		≤ 3.2
End To End Insertion Loss (with connector)		dB		≤ 6.4
Mux/Demux pair Insertion Loss uniformity		dB		≤ 2.0
Insertion Loss for Monitoring Port		dB		≥ 10 and ≤ 21.5
Isolation	Adjacent channel	dB	≥ 30
	Non-adjacent channel	dB	≥ 40
Polarization Dependent Loss		dB	≤ 0.15
Polarization Mode dispersion		ps	≤ 0.20
Return Loss (with connector)		dB	≥ 45
Directivity		dB	≥ 50
Insertion Loss Temperature Stability		dB/°C	≤ 0.005
Temperature Wavelength Drift		nm/°C	≤ 0.005
Recommend Operation Environment
Power Handling		mW	≤ 500
Tensile Load		N	5
Operating Temperature		°C	0 ~ 70
Storage Temperature		°C	-40 ~ 85
Relative Humidity		%	95
Package Specification
Fiber Type					Corning SMF-28e

Connector Type	COM	LC/UPC
	MON	FC/UPC
	CWDM channels	LC/UPC

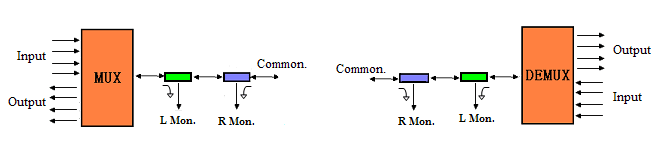

Configuration Drawing Application Type

Order Information

a. Chassis

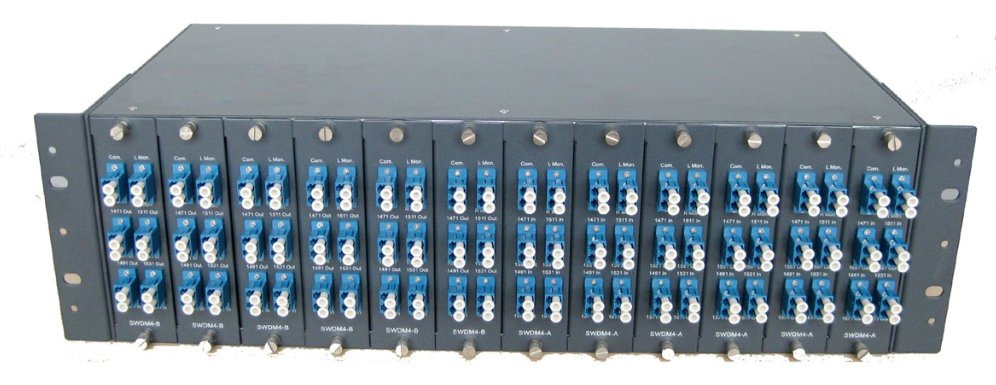

3U 19" 12 slot chassis

b. Module

CWNU-SF-8-A1471(B1551)-PM05-R12S

CWNU	Coarse wavelength network unit
SF	Single fiber at common port
8	8 channels
Either A1471 Or B1551	A1471 = A-side transmission starts at 1471 nm B1551 = B-side transmission starts at 1551 nm
PM05	Power monitor port at 5%
R12S	19" 3RU rack-mount with 12 slots
