8 Fiber MPO-LC Om3 Corning Fiber Patch Cords

Name: 8 Fiber MPO-LC Om3 Corning Fiber Patch Cords
Brand: all-electronics-online.com
SKU: 779854295
Availability: InStock
Rating: 4.8 (112 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	MPO-LC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Fiber:	Om3 50/125
Fiber Core:	8
Connector:	MPO/ LC
Application:	Communication
Type:	Multi-mode Fiber
Certification:	CE
Connection Structure:	LC-MPO

Product Description

MTP/MPO Features and Benefits
Utilize MPO Connectors small Form Factor,12 Fiber or 24 Fiber push/pull optical connectors.

Rapid Deployment - Application specific designs Tailor configuration and breakout construction to application requirements to minimize waste, optimize cable management, speed deployment, and improve flexibility and manageability for lower installation costs.

Factory terminated - Provides a quick-to-deploy, scalable solution to improve reliability and reduce installation time and cost.
100% tested (test data supplied) - Assures verified optical performance for improved network integrity.

High-density cable - Uses pathway space more efficiently to improve manageability and reduce installation costs.
Optimized Performance- Assemblies constructed with low loss MPO/MTP OECE proprietary MT polishing Provides low insertion loss and high return loss, minimizing variability for improved channel link loss performance.

Standards Compliance:
Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating.
Compliant to Directive 2002/95/EC (RoHS) and REACH SvHC.
MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.

Technical Specifications:

Parameters	Standard Fiber Cable Assemblies
Fiber Type	SM(G.652/G.657A)	MM(OM1/OM2/OM3)
Jacket Materials	LSZH/OFNR/PVC
Connector Type	SC/LC/ST/LC/MU/MTRJ/MPO/E2000
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Losss(dB) TIA/EIA-455-107	≤ 0.3dB (PC/UPC/APC)	≤ 0.3dB (PC/UPC)
Return Loss(dB) TIA/EIA-455-107	≥45dB(PC/UPC) ≥55dB(APC)	≥35dB(PC/UPC)
Exchangeability	≤ 0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patchcord
Operating Temperature (° C)	-10~ + 70
Storage Temperature (° C)	-40 ~ +85
Package	1unit/bag
*All values specified are with connectors.

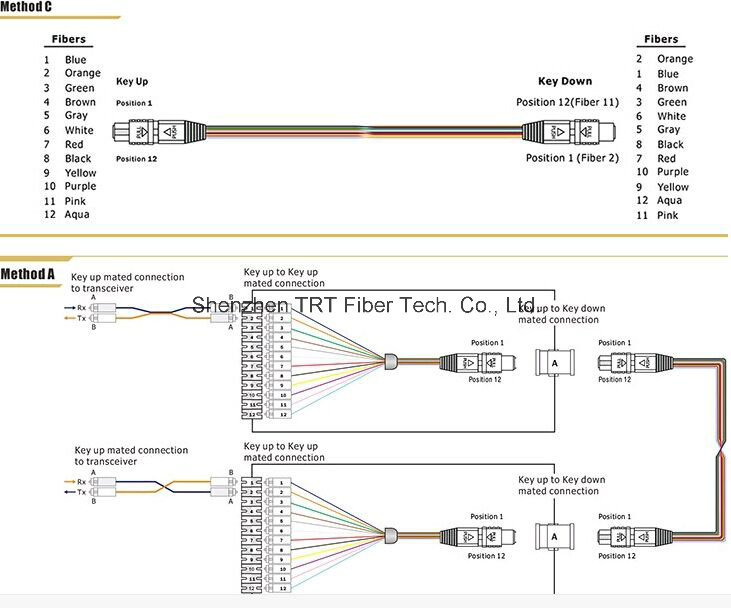

Fiber management as below for reference:
