8 Layer Black Soldermask PCB Circuit Immersion Gold Board
| Price: |
US $ 0.79/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC306R3.8 |
| Surface Finish: |
Immersion Gold |
| Board Thick: |
1.54mm |
| Outer Copper Foil: |
42 Um |
| Warp-Twist: |
0.29% |
| Min Line Width (Mil): |
9.7 Mil |
| Min Line Spacing (Mil): |
6.3 Mil |
| Solder Mask: |
Black |
| Silk Screen: |
White |
| Forming: |
V-Cut |
| Test: |
Electronic Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

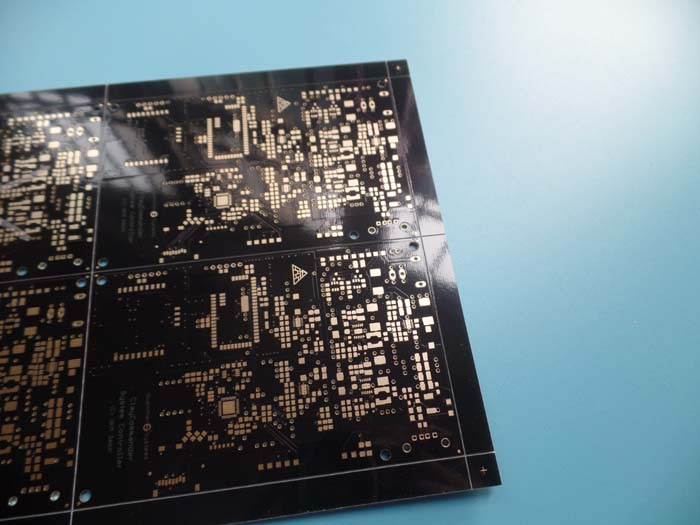

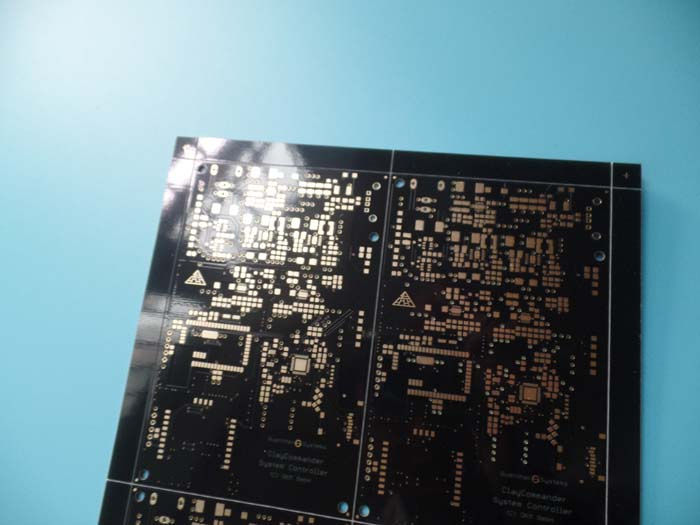

8 Layer Black PCB circuit Immersion Gold 0.5oz board Black Solder Mask with White Silk
Legend
Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's an 8 layer board at 1.54mm thick.
The base laminate is from ITEQ, Solder mask from Taiyo. It's fabricated per IPC 6012 Class 2
using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 | FR-4 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.60±10% mm | 1.54-1.60 mm |
| Outer copper foil | >=35 um | 42.um |
| Inner copper foil | H/H OZ | H/H OZ |
| Warp-twist | <= 0.75% | 0.29% |
| Legend | Type | IJR-4000 MW300 | IJR-4000 MW300 |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | YES | OK |
| UL.logo | YES | OK |
| Date code | WWYY | WWYY |
| Marking form | NA | OK |
| Location | CS | CS |
| Min line width (mil) | 9.5 | 9.7 |
| Min line spacing (mil) | 6.5 | 6.3 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KSM-S6189BK31 | KSM-S6189BK31 |
| Color | Black | Black |
| Thickness | >=10 um | 13 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | Immersion Gold | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
