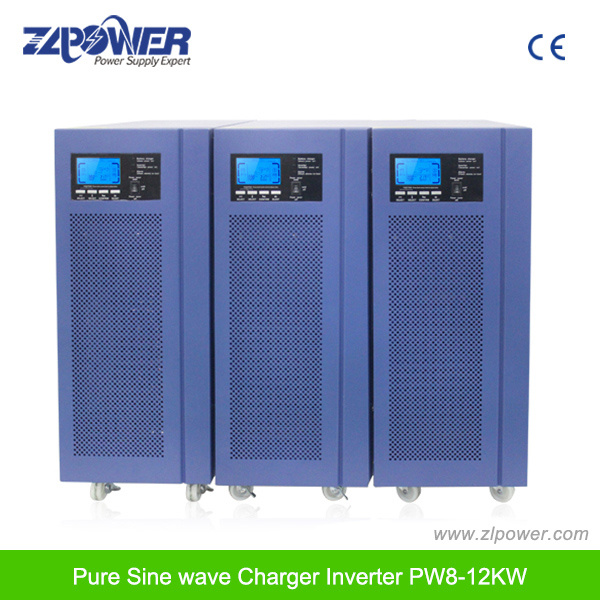

8000W/10kw/12kw Pure Sine Wave Transformer Inverter with MPPT Scc
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
PW Plus8-12KW |
| Product Status: |
in Stock |
| Delivery Time: |
3-15days |
Product Description
PW Plus 8-12KW Pure sine wave Inverter Series
Key Features:
♦ AC/Solar charging hybrid off grid inverter.
♦ LED/LCD display, Enhanced functions setting via LCD Man-machine intelligent design.
♦ RS232 communication port.
♦ LCD shows the solar capacity.
♦ 5 stages adjustable AC charging current. AC charging also can be closed.
♦ AC/DC priority modes can be set.
♦ Generator restart signal. (Dry contact).
♦ 3 times peak power. Strong loading capacity
♦ Overload, output short-circuit protection.
Specification:
Model
Parameters | PW Plus 8KW | PW Plus 10KW | PW Plus 12KW |
AC
Input | Nominal Power | 8KW | 10KW | 12KW |
| Input Voltage Waveform | Sinusoidal (utility or generator) |
| Nominal input Voltage | 230VAC |
| Low Line Disconnect | 184Vac±4%(Normal) or 135Vac±4%(Wide) |
| Low Line Re-connect | 194Vac±4%(Normal) or 145Vac±4%(Wide) |
| High Line Disconnect | 263Vac±4%(Normal) or 263Vac±4%(Wide) |
| High Line Re-connect | 253Vac±4%(Normal) or 253Vac±4%(Wide) |
| Max AC input Voltage | 230V for Max 270V |
| Frequency | 50Hz:41-54Hz / 60Hz:51-64Hz |
AC
output | Output Voltage Waveform | Sine wave |
| Power Factor | 0.9~1.0 |
| Nominal Output Voltage (V) | 230Vac ±10%rms |
| Nominal Output | 60Hz ± 0.3Hz,50Hz ± 0.3Hz |
| Frequency(Hz) |
Solar
charger | Rated Charge Current | 60A |
| Max.PV open circuit | 110VDC |
| array voltage |
| Charger mode | MPPT |
AC
Charger | Nominal Charger | 35A/50A(5 stages adjustable charging current) |
| Current |
| Over charge Protection | Bat.V≥62.0VDC for 48V battery ,beeps 0.5s every 1s & fault after 60s |
| Three-stage charging | Three stage :Boost cc (constant currant stage) |
| Boost CV (constant voltage stage) |
| float (constant voltage stage) |
| Efficiency | Efficiency (Battery Mode) | ≥85% |
| Efficiency (Line Mode) | >98% |
Battery
Voltage | Nominal DC input Voltage | 48VDC |
| Low Battery Alarm | 42VDC±1.2VDC |
| High DC input | 64VDC±1.2VDC |
| Alarm & Fault |
| Transfer | 20ms(max) |
| Time |
System
Parameter | Over-Load Protection | 110%150%,beeps 0.5s every 1s,and Fault after 20s |
| Output Short Circuit | Current limit (Fault after 10s) |
| Protection |
| Surge Rating(10s) | 1:3(VA) |
| Power Saver | Load≤25W(Enabled on "P/S auto" Setting of Remote control) |
| Protections | Low battery, over charging, over load, over temp |
General
Specifications | Operating Temperature | 0ºC~40ºC |
| Range |
| Storage Temperature | -15ºC~60ºC |
| Operation humidity | 5% to 95%(non-condensing) |
| Audible Noise | 60dB max |
| cooling | Forced air ,variable speed fan |
| Dimension(L*W*H) | 538*255*630mm |
| Net Weight(kg) | 60.1 | 65.5 | 71.2 |
About ZLPOWER
Founded in 2007, Shenzhen ZLPOWER Electronics Co., Ltd. (ZLPOWER for short) is a key hi-tech enterprise in state "Torch Plan, " integrating science, industry, trade, and investment into a whole. It has registered capital of RMB 10million, covering a floor area of 2000sq. M, and owning assets of RMB 30 million.
As a large-scale enterprise group with total assets exceeding RMB 30 million, it currently employs more than 300 staff, operates R & D institutions, 10 products lines, and 8 overseas branches and offices for sales and service.
Also as a professional uninterruptible power supply manufacturer in Shenzhen, China, ZLPOWER mainly produce high frequency online UPS, computer PC UPS, rack mount online UPS, low frequency Industry three phase UPS, UPS Inverter, solar inverter, solar charger controller, Solar/UPS Battery and other related products.
In ZLPOWER, we are strictly on quality inspections. We implement strict IOC, IPQC, FQC, OQC, QA, and other quality control measures in every process according to ISO9001, including to raw materials selection, production, package, and shipment.
Thus, we are ISO9001: 2008 and SGS certificated, and all our UPS, Inverter power supply products have been approved by CE (LVD/EMC), UL tests. As a result, they are popular among our customers from Italy, Germany, South Africa, Egypt, Mozambique, Nigeria, UAE, Ukraine, Russia, Uzbekistan, Philippines, Chili, Peru, Brazil, Mexico and more.
ZLPOWER is looking for agent worldwide to distribute our quality UPS system, Inverter power and solar products to their local markets. Any interests please welcome to contact us today and look for best power solution.
