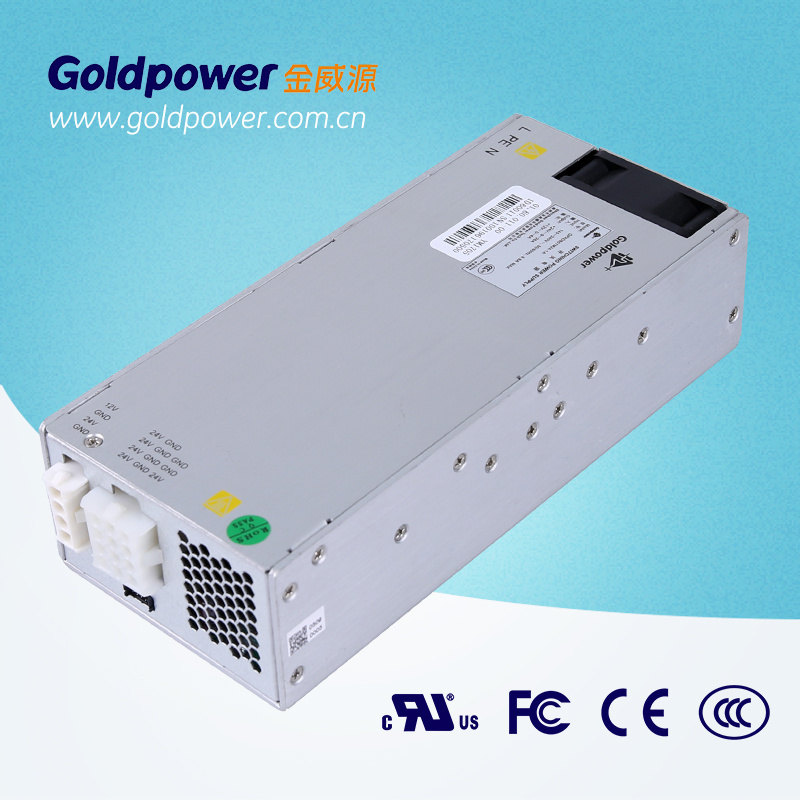

800W 24V High Efficiency AC DC Equipment Switching Power Supply

Name: 800W 24V High Efficiency AC DC Equipment Switching Power Supply
Brand: all-electronics-online.com
SKU: 726768522
Availability: InStock
Rating: 4.4 (105 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD801M24-1A
Output Efficiency:	88%
Power Factor:	0.95(220V Full Load)
Output Voltage Range:	24V 12V
Output Current Range:	26A 12A
Voltage Precision:	±3%
Boot Output Delay:	5s
Radiation Emission (Ce):	En55022 - Class B
Conducted Interference (Re):	En55022 - Class B
Mfbf:	≥200,000h
Output Type:	Multiple
Warranty:	2 Years
Connection Mode:	Parallel Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Voltage Regulating Mode:	Width Modulation Type
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	FCC
Output Power:	672
Input Voltage:	145~285
Brand:	Goldpower

Product Description

Feature:

1. 800W 24V high power density equipment switching Power Supply
2. High Efficiency up to 88%.
3. MTBF≥200,000h
4. Perfect protective function:Input over voltage,input under voltage,output over voltage,output current limit,short circuit protection,over temperature protection.
5. Power factor more than 0.95.
6. Annual repair rate: ≤1%

Specification:

Input
Item	Parameter	Unit
Input voltage range	145~285	Vac
Input frequency	47~63	Hz
Power factor
Output
Output voltage range	+12,+24	Vdc
Output current range	4	A
Output power	default: 672	W
Output efficiency	88	%
Ambient
Working temperature	-30~60	ºC
Storage temperature	-45~85	ºC
Relative hunidity	10~95	%
Altitude	0~5000	m
Atmosphere pressure	70~106	KPa
Cooling	Air forced ciiling
Protection
Input over voltage protection	300~315	Vac
Input over voltage protection recovery	290~305	Vac
Input under voltage protection	125~140	Vac
Input under voltage protection recovery	135~145	Vac
Short circuit protection	Long term short circuit,automatic recovery
Over temperature		ºC
Mechanical
Dimension(LWH)	23610560 mm
Weight(KG)	≤2KG

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
