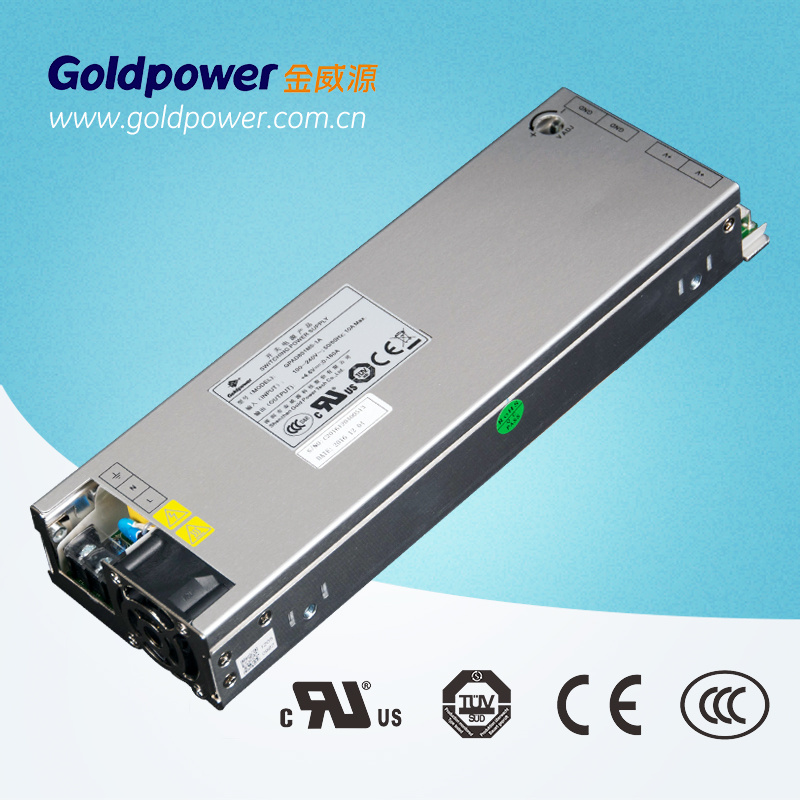

800W 5V LED Switching Power Supply with CCC, UL, Ce, TUV, CB

Name: 800W 5V LED Switching Power Supply with CCC, UL, Ce, TUV, CB
Brand: all-electronics-online.com
SKU: 733195972
Availability: InStock
Rating: 4.6 (62 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	GPAD801M5-1A
Usage:	Construction
Output Type:	Single
Driving Method:	LED Regulator Voltage
Power Supply Voltage:	4.2~5VDC
Brand:	Goldpower

Product Description

48V 500W high power ac dc LED switching power supply is our 800w high power Series LED power supply.

Feature:
1. Support 90~264Vac full voltage input range
2. Support startup at -40ºC working normally, adapt to application in different weather.
3. 4.2-5V multi-file adjustable, can satisfy the demands of all kinds of different brightness screen.
4. High-power up to 800W, the needs of big projects could be met, fewer costs.

Specification:

Input
Item	Parameter	Unit
Input voltage range	90~264	Vac
Input inrush current	40	A
Input frequency	47~63	Hz
Power factor	0.95
Output
Output voltage range	42~58	Vdc
Output efficiency	89	%
Stabilized voltage precision	±5	%
Load regulation	±1	%
Turn-on output delay	2	s
Ripple & Noise	120	mV
Dynamic response	±5	%
MTBF	≥200,000	H
Environmental
Working temperature	-40~75	ºC
Relative humidity	5-95	%
Storage temperature	-40-85	ºC
Altitude	5000	m
General Characteristics
Insulation resistance	≥10	MΩ
Dimension	274.38540 mm
Weight	≤1.5Kg

Shenzhen Gold Power Tech Co., Ltd. Was established in 1995, a leading excellence integrated power supply solutions partner in the industry. There's an independent industrial park with 80, 000 square meters in Pingshan district, Shenzhen, China. With more than 478 employees and many core intellectual property rights. The production capacity of all kinds of power supply is 6 million units every year, products are exported to more than 30 countries and regions over the world. Goldpower has been the national high-tech enterprise after more than 20 years of practice in power supply industry.

Our products cover Telecom, Green Solar Energy, Automobile application electronic and New energy fields formed six core product series, including standard telecom power supply, remote power supply, HVDC, Solar PV(photovoltaic), LED power supply and the car rechargeable power supply, widely used in communications, power electronics, automatic control, railway, military industry, medical treatment, financial self-service, LED, solar power and automobile charging control system.

We are ISO9001 approved enterprise and we can promise you good quality. Welcome to contact us for business cooperation.
