| Prod Model: |
JLD808-200MW |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
805nm~815nm |
| Optical Output Power: |
200MW Cw |
| Can Type: |
To18-5.6mm |
| Light Color: |
Infrared |
| Threshold Current: |
50mA Typ. |
| Life Time: |
10000 Hours |
| Reverse Voltage: |
2V |
| Operating Current: |
260mA |
| Operating Voltage: |
1.8V |
| Operating Temperature: |
-10~+65 Degree |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Laser Diode |
| Package: |
Through Hole |
| Application: |
Solid State Laser Pumping,Medical Use |
| Model: |
Jld808-200MW |
| Brand: |
Bu |

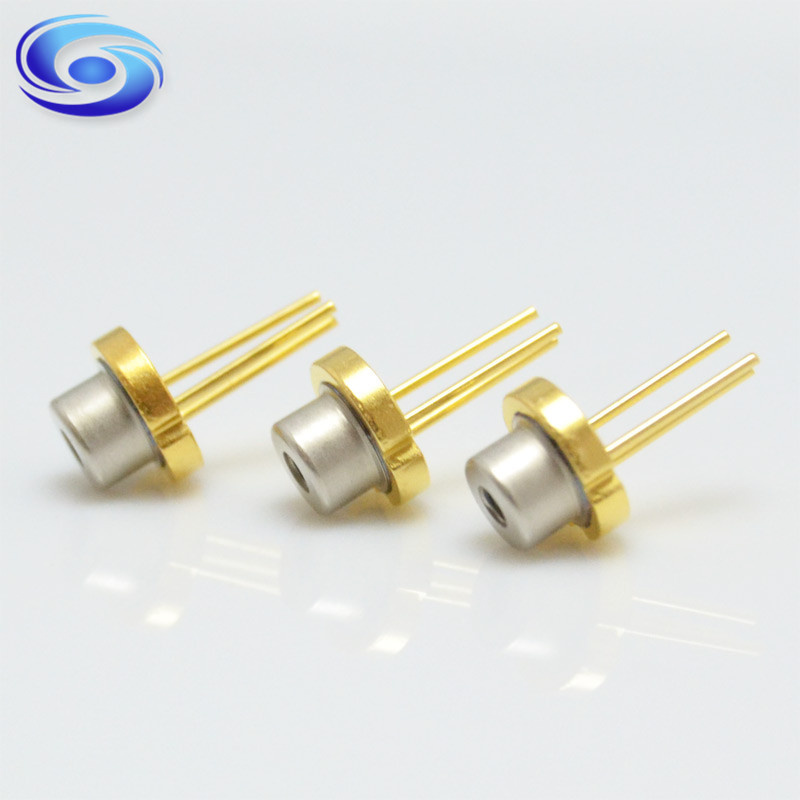

Product Description
Features:
1. Optical power output: 200mw (CW)
2. Wavelength: TYP.808nm
3. φ5.6mm package
Absolute Maximum Ratings (Tc=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Optical Output Power | Po(CW) | 350 | mW |
| Reverse Voltage | LD | Vr (LD) | 2 | V |
| Pin PD | Vr (PD) | 30 | V |
| Operating Temperature | Top | -10~40 | ºC |
| Storage Temperature | Tstg | -40~+80 | ºC |
Electrical/Optical Characteristics ( Tc=25ºC)
| Parameter | Symbols | Conditions | Min | Typ | Max | Units |
| Threshold Current | Ith | - | - | 50 | 60 | mA |
| Operating Current | Iop | Po=200mW | - | 260 | 280 | mA |
| Operating Voltage | Vop | Po=200mW | - | 1.8 | 2.1 | Volts |
Slope
Efficiency |
η | - |
0.5 |
0.8 |
- |
mW/mA |
|
| - |
|
|
|
|
| Monitor Current | Im | Po=200mW | - | 0.2 | 0.8 | mA |
Beam Divergence
(FWHM) | Parallel | θ | Po=200mW | 8 | 10 | 14 | deg |
| Perpendicular | θ⊥ | Po=200mW | 30 | 35 | 40 | deg |
| Parallel Deviation Angle | θ | Po=200mW | -3 | - | 3 | deg |
| Perpendicular Deviation Angle | θ⊥ | Po=200mW | -3 | - | 3 | deg |
| Emission Point Accuracy | X,Y,Z | Po=200mW | -80 | - | 80 | um |
| Lasing Wavelength | λp | Po=300mW | 805 | 808 | 815 | nm |
Description:
1. Small Package 5.6mm Diameter.
2. High power 808nm infrared IR laser diode 200mw.
3. Cheap price high quality 808nm 200mw infrared laser diode .
4. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
