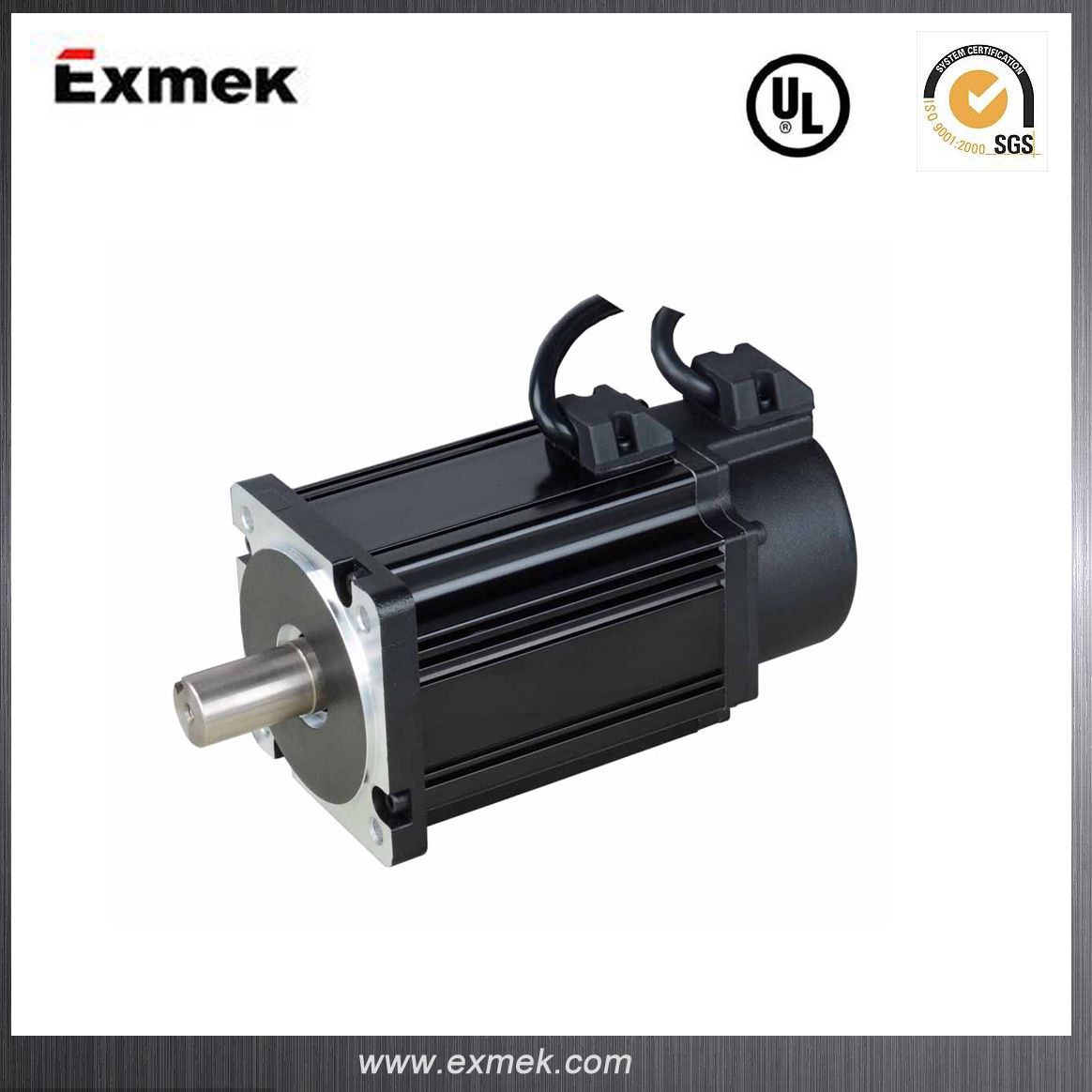

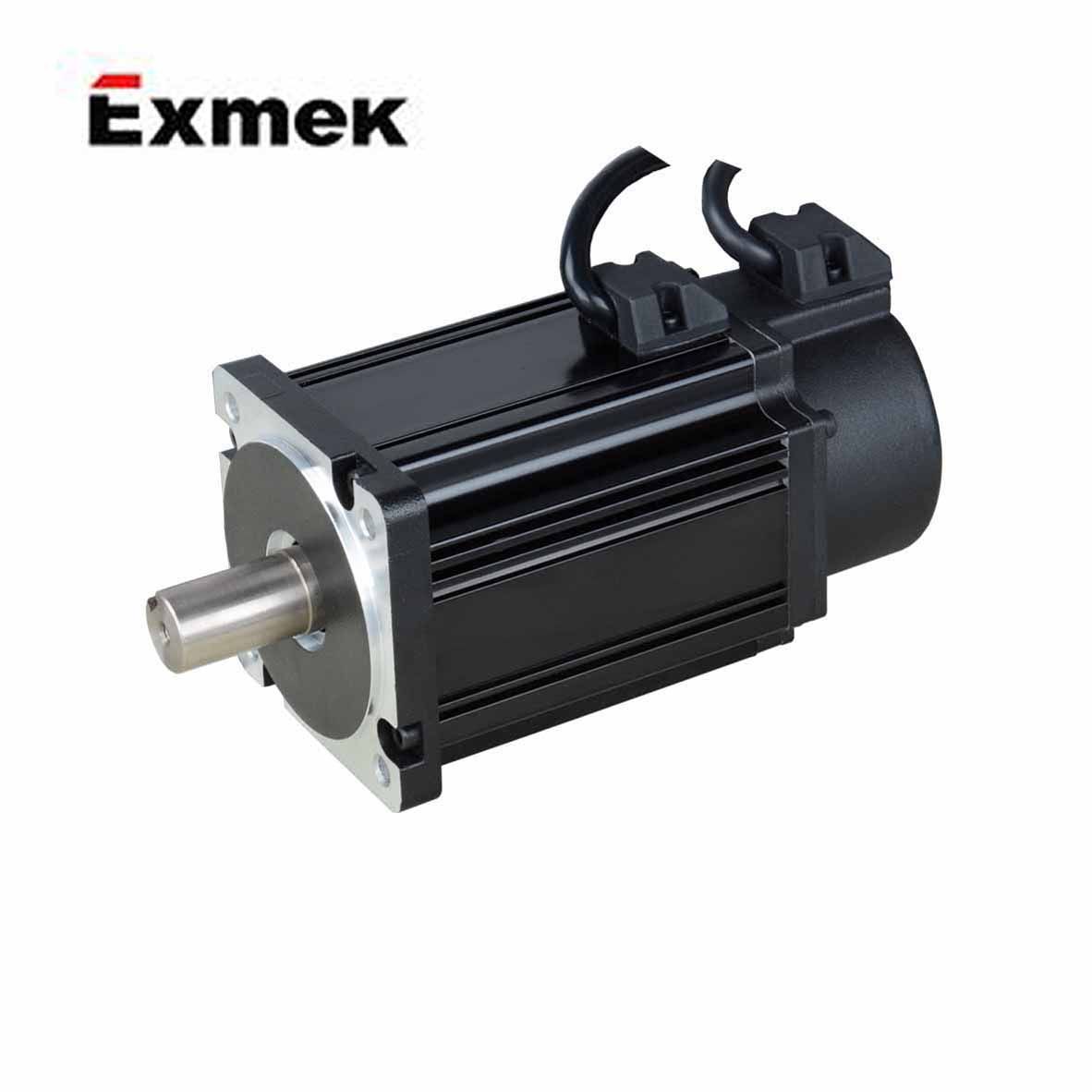

80mm Brushless Servo Motor with 3000rpm 2.44nm (SE080AS200)

80mm Brushless Servo Motor with 3000rpm 2.44nm (SE080AS200)
Price: US $ 136/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: SE080AS200
Number Of Stator: Three-Phase
Function: Control
Brand: Ce

Product Description

General information
Specifications
Specification SE080AS200
Supply Voltage(reference) 48 (VDC)
Rated Continuous Torque 2.44 (Nm)
Rated Speed at Cont.Torque 3000 (rpm)
Rated Continuous Stall Current 31.52 (A)
Rated Continuous Output Power 765 (W)
Motor Constant 0.2449 (Nm/√W)
Torque Constant 0.0812 (Nm/A)
Voltage Constant 8.5 (V/krpm)
Terminal Resistance 0.11 (Ω)
Inductance 0.29 (mH)
Rated Peak Current 104.21 (A)
Rated Peak Torque 8.1 (Nm)
Coulomb Friction Torque 0.061 (Nm)
Insulation Class F
Rotor Inertia 4.96E-03 (Kg.m²)
Motor Weight 2.72 (Kg)
Feedback Device 2500p/rev incremental encoder
Motor Length 153 (mm)

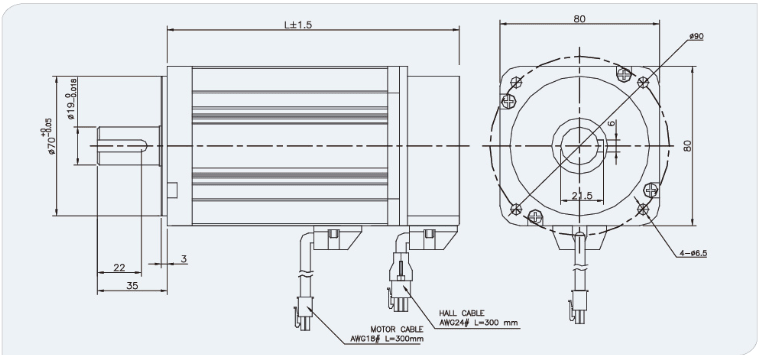

Mechanical

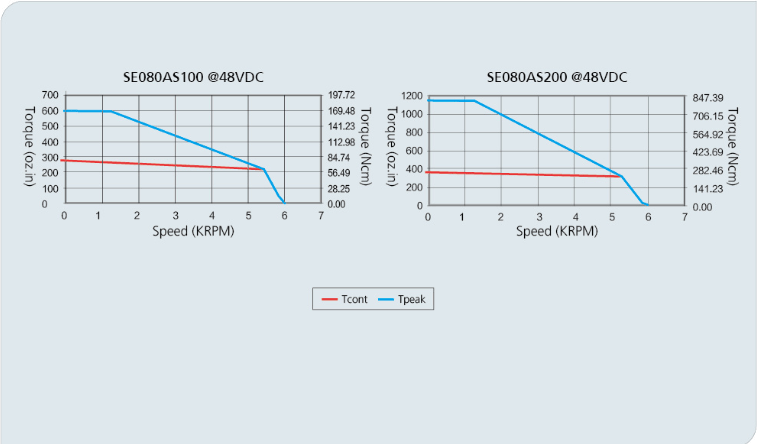

Characteristic diagram


Special shaft and other mechanical characteristic are optional.

Company Profile
  1. Originally motor division of CMEC WUXI- China National Machinery & Equipment Imp & Exp Wuxi Co.,Ltd., one of TOP 20 stated owned Machinery Group
  2. Privately owned Ltd company since 2000: Wuxi Junhong Automation Technology Co. Ltd.
  3. Exmek Electric ---Registered Brand Name
  4. Business: Design and manufacture of motion control products and components
  5. Highly qualified personnel
  6. UL, CE, RoHS certification
  7. ISO 9001, ISO 14000

Company Capabilities
  1. Modern Motor Design and Manufacture
  2. Part Set Design and Manufacture
  3. Magnetic Design Software-Motorsolver
  4. Molding
  5. Shipping world wide
Why Exmek ElectricApplications:
Use for swimming pool, automotive, semiconductor, chemical & medical, industrial automation, power tool, instrument, measuring equipment, office automation, various OEM application.

   We are open for general discussion and questions. Contact us now!

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
