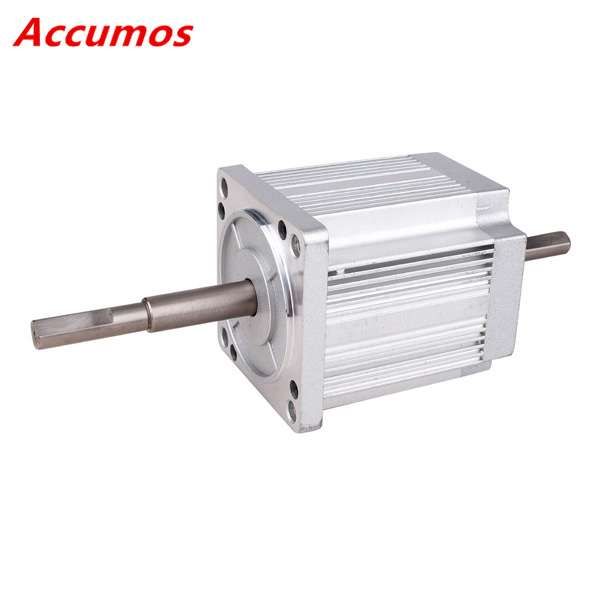

80mm DC Brusless Electrical Motor with High Voltage (80AE Series)

Name: 80mm DC Brusless Electrical Motor with High Voltage (80AE Series)
Brand: all-electronics-online.com
SKU: 734053762
Availability: InStock
Rating: 4.4 (133 reviews)

Price:	Negotiable/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80AE Series
Insulation Class:	Class B or Higher on Request
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce, RoHS
Brand:	Accumos

Product Description

80AE Series DC Brushless Motor

8 poles with three phases
15 slots distribution winding design for low cogging
6 slots for automatic winding
Insulation class B, higher insulation on request
Mutiple Lines of encoder available
Sintered Neo Magnet
Lower voltage available

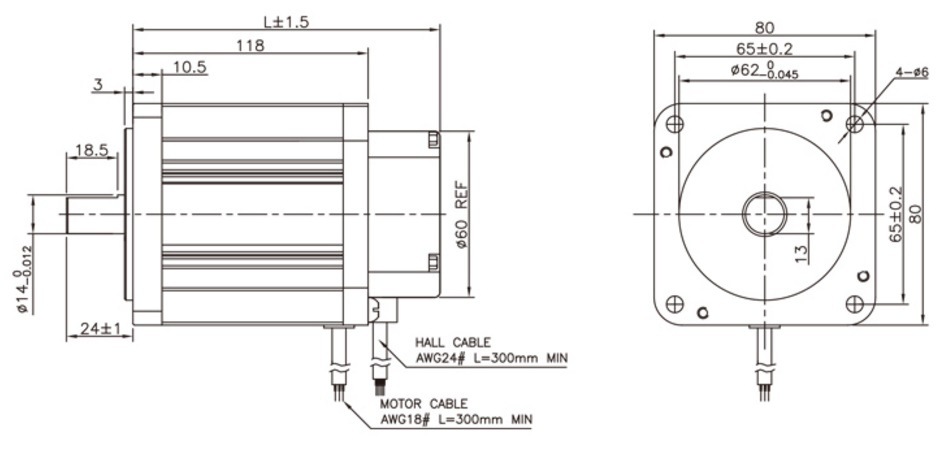

Mechanical

Specifications

Specification	80AES100	80AES200	80AES300	80AEG100	80AEG200	80AEG300	80AEH100	80AEH200	80AEH300
Rated Voltage(VDC)	48	48	310	48	48	310	48	48	310
Rated Current(A)	7	10.5	2.2	7	10.5	2.2	10.5	2.7	3.8
Rated Speed(rpm)	3000	3000	3000	3000	3000	3000	3000	3000	3000
Rated Torque(Nm)	0.8	1.2	1.6	0.8	1.2	1.6	1.2	2	2.8
Peak Torque(Nm)	2.4	3.6	4.8	2.4	3.6	4.8	3.6	6	8.4
Torque Constant(Nm/A)	0.115	0.115	0.75	0.115	0.115	0.75	0.115	0.75	0.75
Rated Power(W)	251	377	500	251	377	500	377	628	880
Number of poles	4	4	4	8	8	8	4	4	4
Length(mm)	110	143	163	110	143	163	110	143	163
Weight(Kg)	1.8	2.8	3.6	1.8	2.8	3.6	1.8	2.8	3.6

Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
