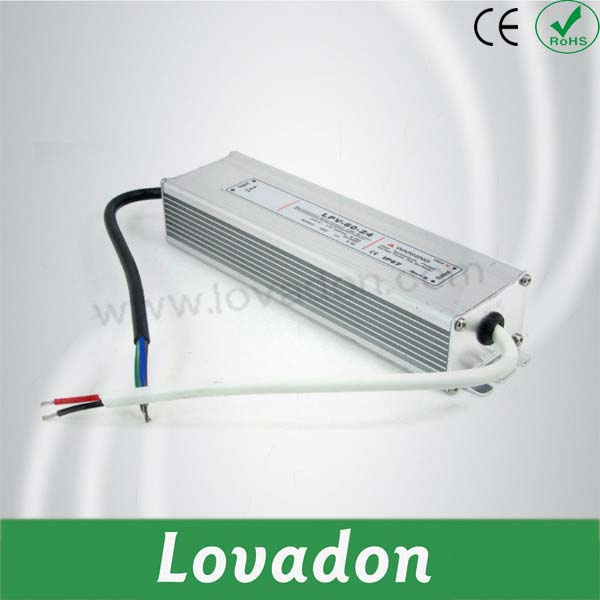

80W Driver Constant Current Switching Power Supply

Name: 80W Driver Constant Current Switching Power Supply
Brand: all-electronics-online.com
SKU: 684620572
Availability: InStock
Rating: 4.9 (47 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LVD-80-24
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Warranty:	2 Years
Output Power:	51 - 100W
Input Voltage:	Full Range
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Certification:	CE

Product Description

80W switching power supply waterproof
1.Small size, light weight, high efficiency, long life, safety and reliability
2.Built-in PFC function
3.Protections: Over voltage, Over current, Over temperature., Short Circuit
4.Waterproof Rank: IP67

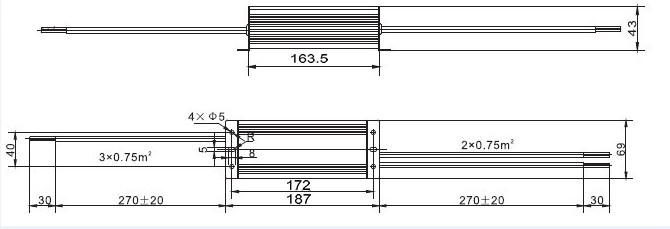

5.Size:

Model Specification	LPV-80-12	LPV-80-15	LPV-80-24	LPV-80-48
DC Output voltage	12V	15V	24V	48V
Rated output current	6.7A	5.3A	3.3A	1.7A
Output current range	0~6.7A	0~5.3A	0~3.3A	0~1.7A
Error	±5%	±5%	±5%	±5%
Wave and noise(Note:3)	100mVp-p	150mVp-p	150mVp-p	150mVp-p
DC output power	80.4W	80W	80W	81.6W
Efficiency	83%	83%	83%	85%
Adjustable range for DC voltage	±10%	±10%	±10%	±10%
AC input voltage range	100~250VAC ,47~63Hz,240~370VDC
Input current	1.0A/230V
AC Inrush current	Cold-start current 36A/230V
Leakage current	<1mA/240VAC
Overload protection	115%-135% Type: hiccup mode Reset: auto-recovery
Over-voltage protection	115%-135% cut off the output, Reset: auto-recovery
Vibration	10 ~ 500Hz, 2G 10min./1cycle, 60min. each axes
High-temperature protection	≥85degree cut off the output,Reset: auto-recovery
Water level	IP67
Setup, rise, hold up time	200ms 100ms 30ms
Withstand voltage	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC 1 minute
Isolation resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
Working temperature and humidity	-10degree~+60degree,20%~90%RH
Overall dimension	1876943mm
Weight	0.90kgS 20pcs/ctns
Note	1. The parameter under the testing condition : 230vAC input ,rated load,25degree70% RH. Temperature. 2. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
