| Prod Model: |
JLD830-20mw |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Wavelength: |
820nm~840nm |
| Optical Output Power: |
20MW Cw |
| Can Type: |
To18-5.6mm |
| Light Color: |
Infrared |
| Threshold Current: |
25mA Typ. |
| Life Time: |
10000 Hours |
| Reverse Voltage: |
2V |
| Operating Current: |
55mA |
| Operating Voltage: |
1.9V |
| Operating Temperature: |
-10~+50 Degree |
| Manufacturing Technology: |
Optoelectronic Semiconductor |
| Material: |
Element Semiconductor |
| Type: |
Laser Diode |
| Package: |
Through Hole |
| Application: |
Medical Applications,Sensing |
| Model: |
Jld830-20MW |
| Brand: |
Jdsu |

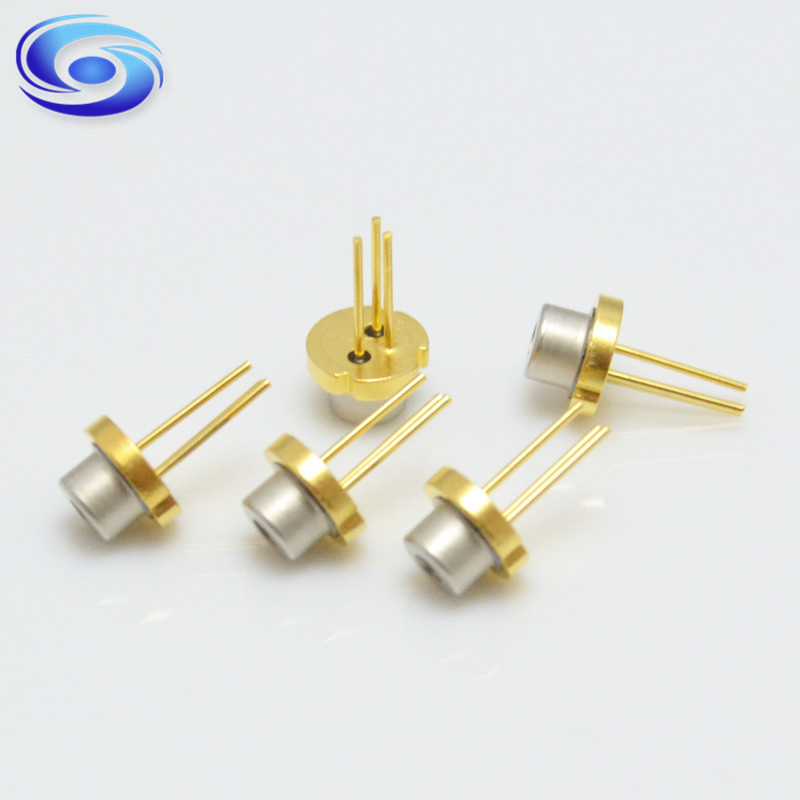

Product Description
Features:
1. Optical power output: 20mw (CW)
2. Wavelength: TYP.820nm
3. φ5.6mm package
Absolute Maximum Ratings (Tc=25ºC)
| Parameter | Symbol | Ratings | Unit |
| Optical Output Power | Po(CW) | 20 | mW |
| Reverse Voltage | Vr | 2 | V |
| Operating Temperature | Top | -10~50 | ºC |
| Storage Temperature | Tstg | -40~+80 | ºC |
Electrical/Optical Characteristics ( Tc=25ºC)
| Parameter | Symbols | Conditions | Min | Typ | Max | Units |
| Threshold Current | Ith | - | - | 25 | 35 | mA |
| Operating Current | Iop | Po=20mW | - | 55 | 65 | mA |
| Operating Voltage | Vop | Po=20mW | - | 1.9 | 2.1 | Volts |
Slope
Efficiency |
η | - |
0.5 |
0.8 |
- |
mW/mA |
| - |
Beam Divergence
(FWHM) | Parallel | θ | Po=20mW | 8 | 12 | 14 | deg |
| Perpendicular | θ⊥ | Po=20mW | 30 | 35 | 40 | deg |
| Parallel Deviation Angle | θ | Po=20mW | -3 | - | 3 | deg |
| Perpendicular Deviation Angle | θ⊥ | Po=20mW | -3 | - | 3 | deg |
| Emission Point Accuracy | X,Y,Z | Po=20mW | -80 | - | 80 | um |
| Lasing Wavelength | λp | Po=20mW | 820 | 830 | 840 | nm |
Description:
1. Small Package 5.6mm Diameter.
2. Low power 830nm infrared IR laser diode 20mw.
3. Cheap price high quality 830nm 20mw infrared laser diode .
4. Package details: Plastic box package, it depends on different kinds of laser diodes with different sizes.Normally 100pcs in one tray, 10 trays in one bag ,then 10 bags in one carton box.
Welcome Your Inquiry:
Name: Ms. Song
Tel: +86 13713250894
Dongguan Blueuniverse Laser Co.,Ltd
FAQ:
How to contact us ?
You can send messages to us on trademessenger directly, or send us a email.
Shipping Policy:
1. Item will be sent out within 1-3 working days after the payment is cleared.
2. it will be shipped by DHL/FedEx/UPS/TNT or other special way, please contact with us to choose the best one.
3. Most package will arrive within 3- 5 working days after it is sent out.
Warranty:
All products have been tested before the shipment and it was packaged in good condition. Please tested the products at first before you assemble it, if any problem here , please inform us within 3 days of receipt. We can arrange replacement for you if the situation is confirmed.
