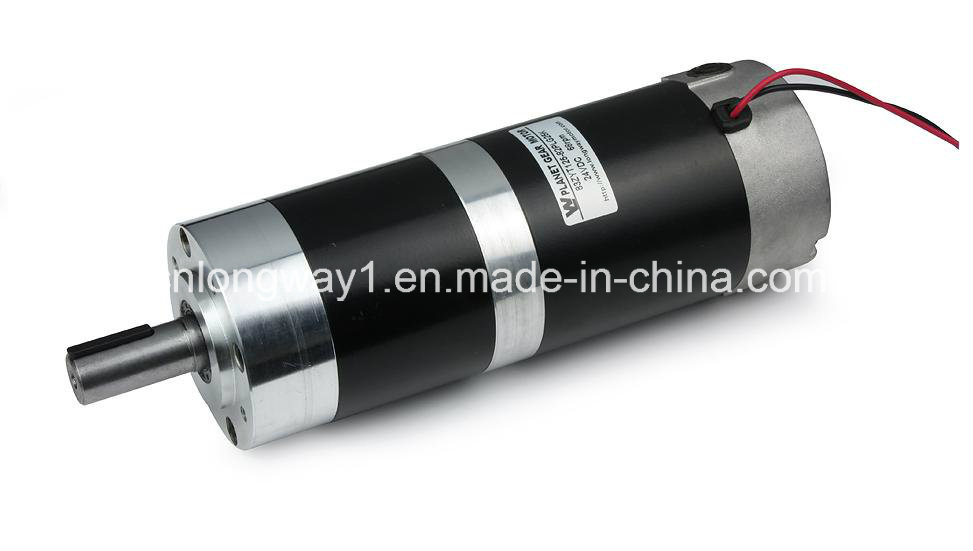

83mm Pm DC Planetary Gear Motor for Automatic Mower

Name: 83mm Pm DC Planetary Gear Motor for Automatic Mower
Brand: all-electronics-online.com
SKU: 774139075
Availability: InStock
Rating: 4.9 (74 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	83ZYT125-82PLG1200
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Motor Diameter:	83mm
Premissible Load Range:	1n.M-38n.M
Application To:	Electric Garden Tools and Automatic Mover , Robot
Special Motor:	Small Size , High Torque , Easy Control etc
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brush

Product Description

83ZYT125-82PLG1200       PMDC PLANET GEAR
                                                                        MOTOR
Description of the product
1. Diameter 83mm gearbox has a rated load of NM
2. Motor wire can also comes at the bottom of the motor, if no remarks, manufacturer

Motor Technical Data

Model	Rated Voltage VDC	No-load Speed r/min	No-lod Current mA	Rated Speed r/min	Rated Torque mN.m	Output Power W	Pated Current mA	Stall Torque mN.m		Stall Current A
83ZYT125-2420	24	2000	0.8	1700	0.24	42	3.5	1.6	17
83ZYT125-2430	24	3000	0.9	2500	0.30	77	4.6	1.8	20

Gear motor Technical Data
83ZYT125-2420

Reduction ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	2	3	3	3	3	3	3	3	3
Length(L) mm	66	66	90.3	90.3	90.3	90.3	114.6	114.6	114.6	114.6	114.6	114.6	114.6	114.6
No-load speed r/min	500	286	143	105	80	63	40	31	28	22	17	13	10	6
Rated speed r/min	425	243	121	89	68	53	34	27	24	19	15	11	9	5
Rated torque N.m	0.9	1.5	2.7	3.7	4.9	62	8.8	11	12	16	20	27	32	58
Max.permissible load in a short time	40	40	120	120	120	120	240	240	240	240	240	240	240	240

83ZYT125-2430

Reduction ratio	4	7	14	19	25	32	50	64	71	90	116	152	195	329
Number of gear trains	1	1	2	2	2	2	2	3	3	3	3	3	3	3
Length(L) mm	66	66	90.3	90.3	90.3	90.3	114.6	114.6	114.6	114.6	114.6	114.6	114.6	114.6
No-load speed r/min	750	429	214	158	120	94	60	47	42	33	26	20	15	9
Rated speed r/min	625	357	179	132	100	78	50	39	35	28	22	16	139	8
Rated torque N.m	1.1	1.9	3.4	4.6	6.1	7.8	11	14	16	20	25	33	34	72
Max.permissible load in a short time	40	40	120	120	120	120	240	240	240	240	240	240	240	240

*The specifications can be designed according to the customer's requirement !
