Wuxi Fangneng Automation Technology Co., Ltd. >> 86mm Brushless Electric Motor for Servo Applications (86AES Series)

86mm Brushless Electric Motor for Servo Applications (86AES Series)

86mm Brushless Electric Motor for Servo Applications (86AES Series)
Price: Negotiable/Piece
Min Order: 100/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: 86AES Series
Application: Power Tools
Operating Speed: Adjust Speed
Excitation Mode: Excited
Structure And Working Principle: Brushless
Certification: Ce, RoHS
Brand: Accumos

Product Description

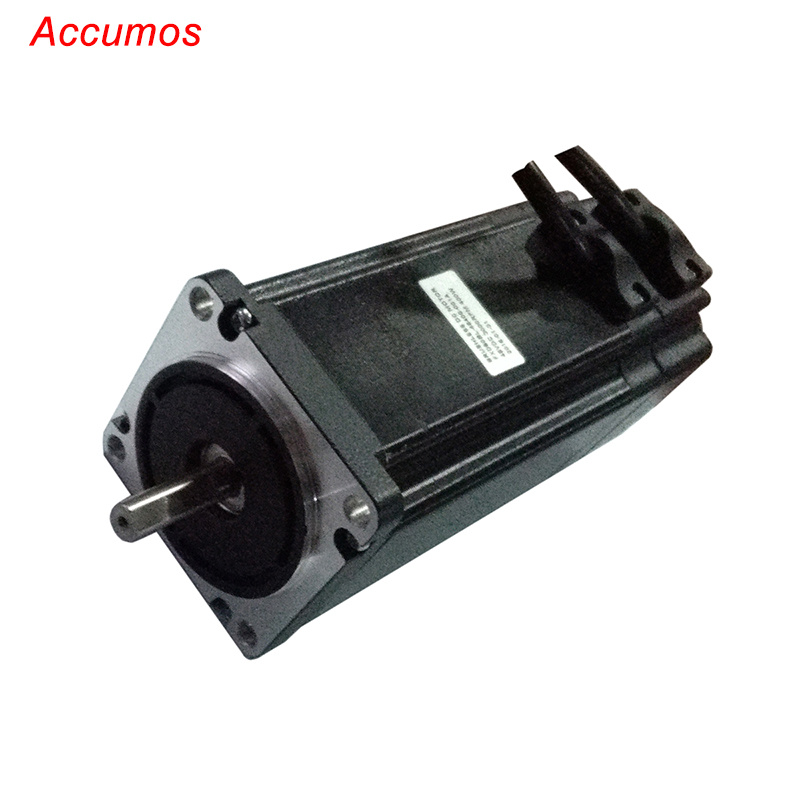

86AES Series DC Brushless Motor

8 poles with three phases
Servo application
Insulation class F
Mutiple Lines of encoder available
IP 65 class

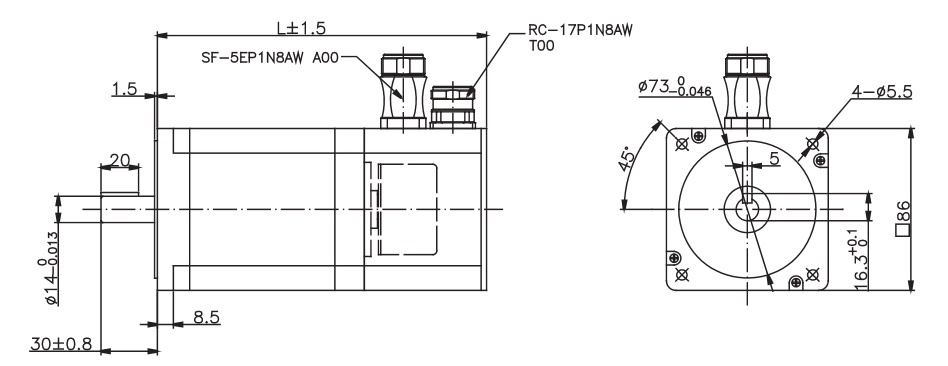

Mechanical

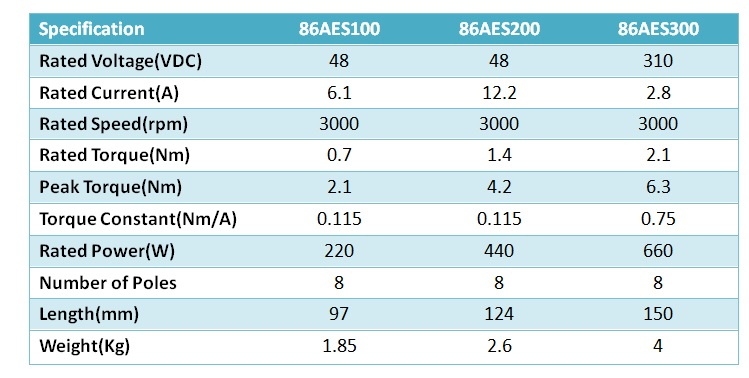

Specifications

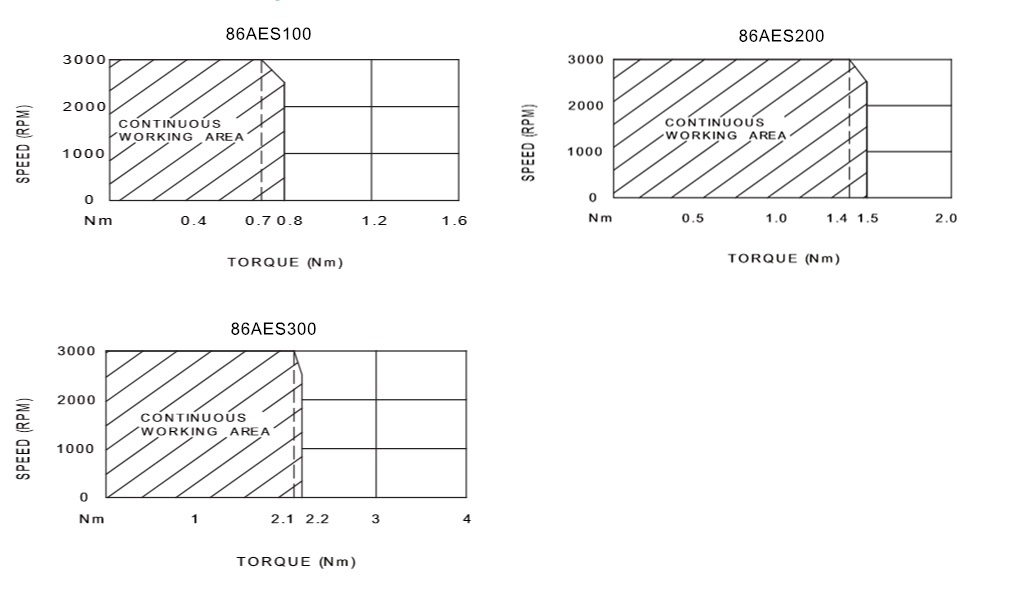

Characteristic Diagram





Accumos, as a global supplier who integrated R&D, manufacturing, marketing on DC motor and industrial automation, is committed to providing the customers with high-efficient and economical power solutions.

Our factory was founded at April, 2007. The primitive name is Wuxi Kaikai Electromechanical Co., Ltd. At that time, we started to export the motors to the foreign countries. But almost were the OEM items. After many years of practice and research, we accumulated valuable technology and experience. Since 2013, our group started to export to abroad directly. And increased the branch, Wuxi Fangneng Automation Technology Co., Ltd.

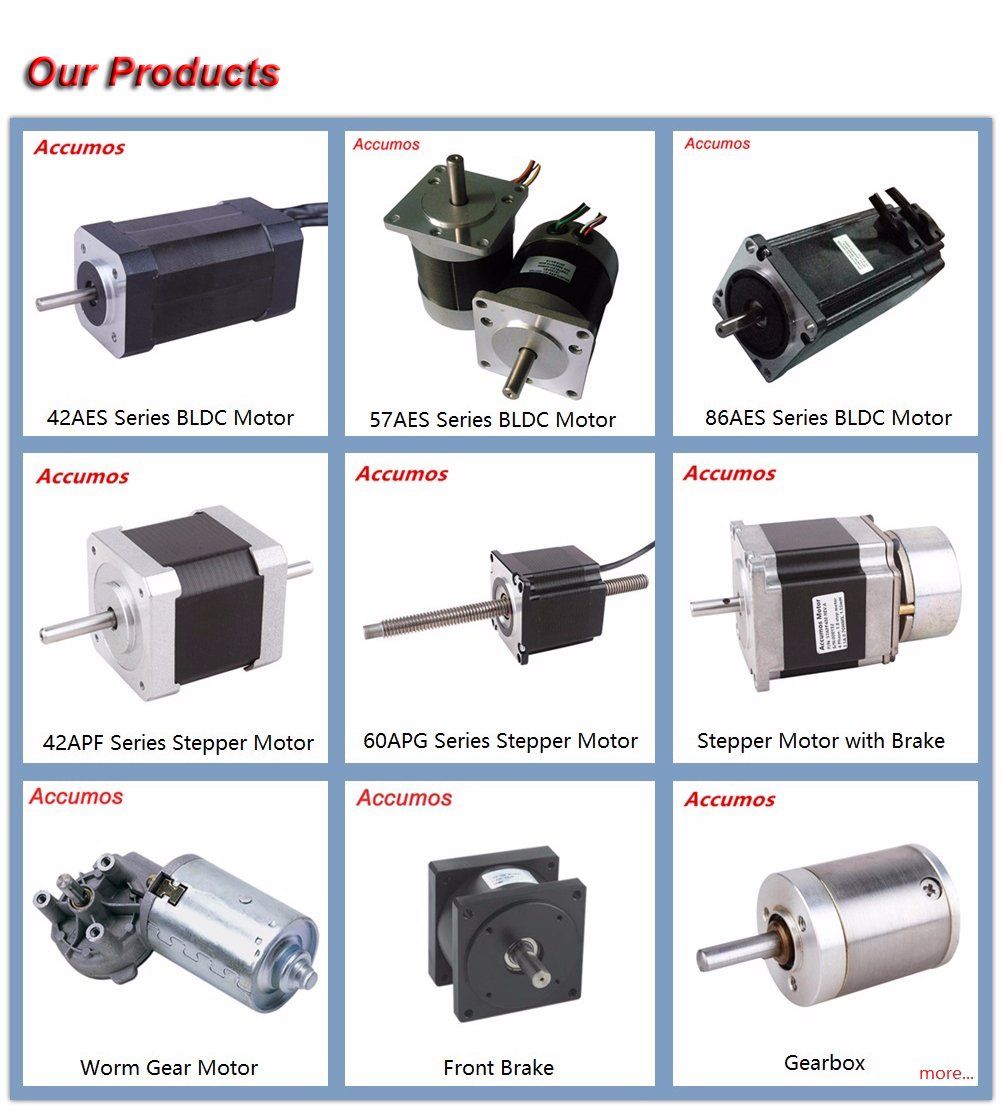

Our products cover DC brush motor, DC brushless motor, stepper motor, gear motor and so on. We not only focus on OEM items with volume quantity, but also work on middle and small quantity item. Keen on subassembly with added value and reduce procurement costs for your project is our target. It's conducive to improve the customer's ecomomic performance and market competitiveness.
