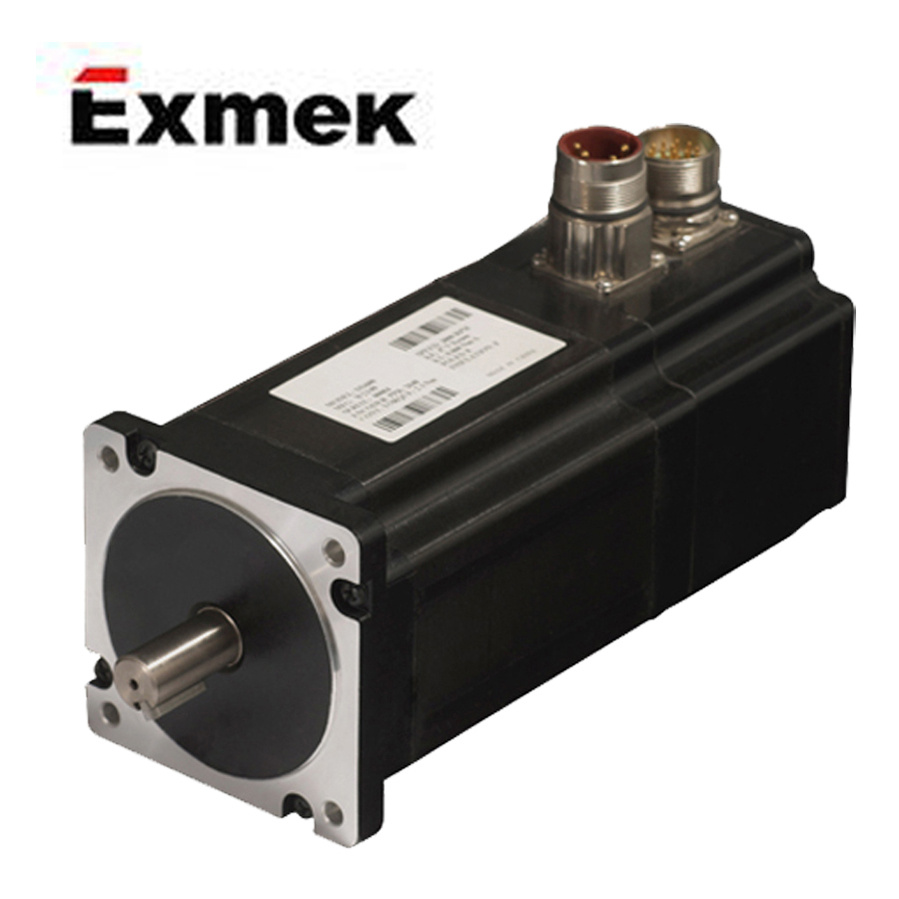

86mm DC Brushless Servo Motor with 310V 663W (ME086AS300)

Name: 86mm DC Brushless Servo Motor with 310V 663W (ME086AS300)
Brand: all-electronics-online.com
SKU: 828283505
Availability: InStock
Rating: 4.7 (54 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ME086AS300
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	Ce
Brand:	Exmek

Product Description

General information

8 poles with three phase
Servo application
Insulation class F
Multiple lines of encoder available
IP 65 class

Specifications

Specification	ME086AS300
Supply voltage (reference)	310V DC
Rated continuous torque	2.11Nm
Rated speed at cont torque	3000rpm
Rated continuous stall current	4.03A
Rated continuous output power	663W
Rated peak torque	8.52Nm
Rated peak current	13A
Torque constant	0.7059Nm/A
Ke (voltage constant)	73.88V/krpm
Terminal resistance	4.4Ω
Inductance	14.5mH
Insulation class	F
Rotor inertia	2.40E-04kg.m²)
Weight	4kg
Length	189mm

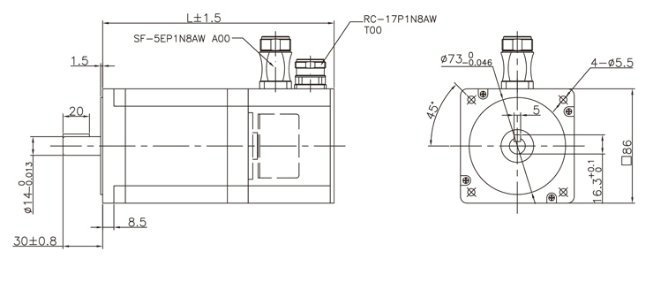

Mechanical

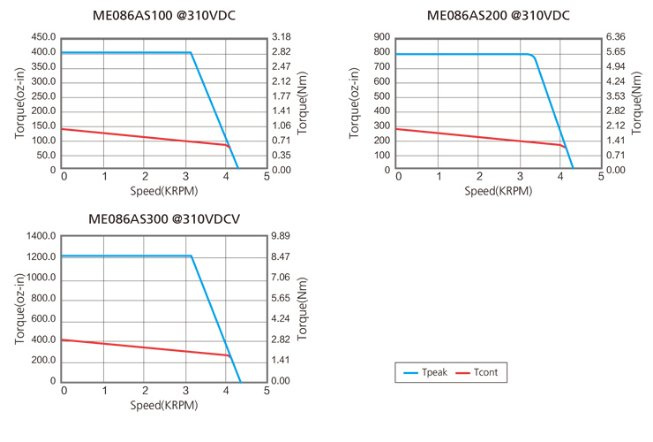

Characteristic diagram

Exmek Electric

Exmek Electric is principally engaged in the manufacturing and marketing of wide range of precision, high performance electric-mechanical drive components in mainland China. With our three production facility close to Shanghai, we are capable of providing you with more than 200 different types of motors, in range of diameter from 20mm to 120mm.

This include:

DC Brush Motor

DC Brushless Motor

Stepping Motor

Linear Motor

Gear Motor

And also Motor Components, assembly, & More...

Our comprehensive product line is normally sold to medical equipment, industry automation, office automation, printer device, all kinds of industry where quality and long term value is in highest priority. Not only focusing on OEM items with volume quantity for endusers or machine builder, we also work on middle and small quantity items. We are not only interested in motor and motor parts, but also keen on subassembly with added value for your project development. Reliability and consistency is always what we pursue in daily work.

Besides our in house production of DC brush and brushless motors, stepping motors, we are also organized to serve our loyal customer with versatile outsourcing products, through our ISO9001 quality assurance system.
