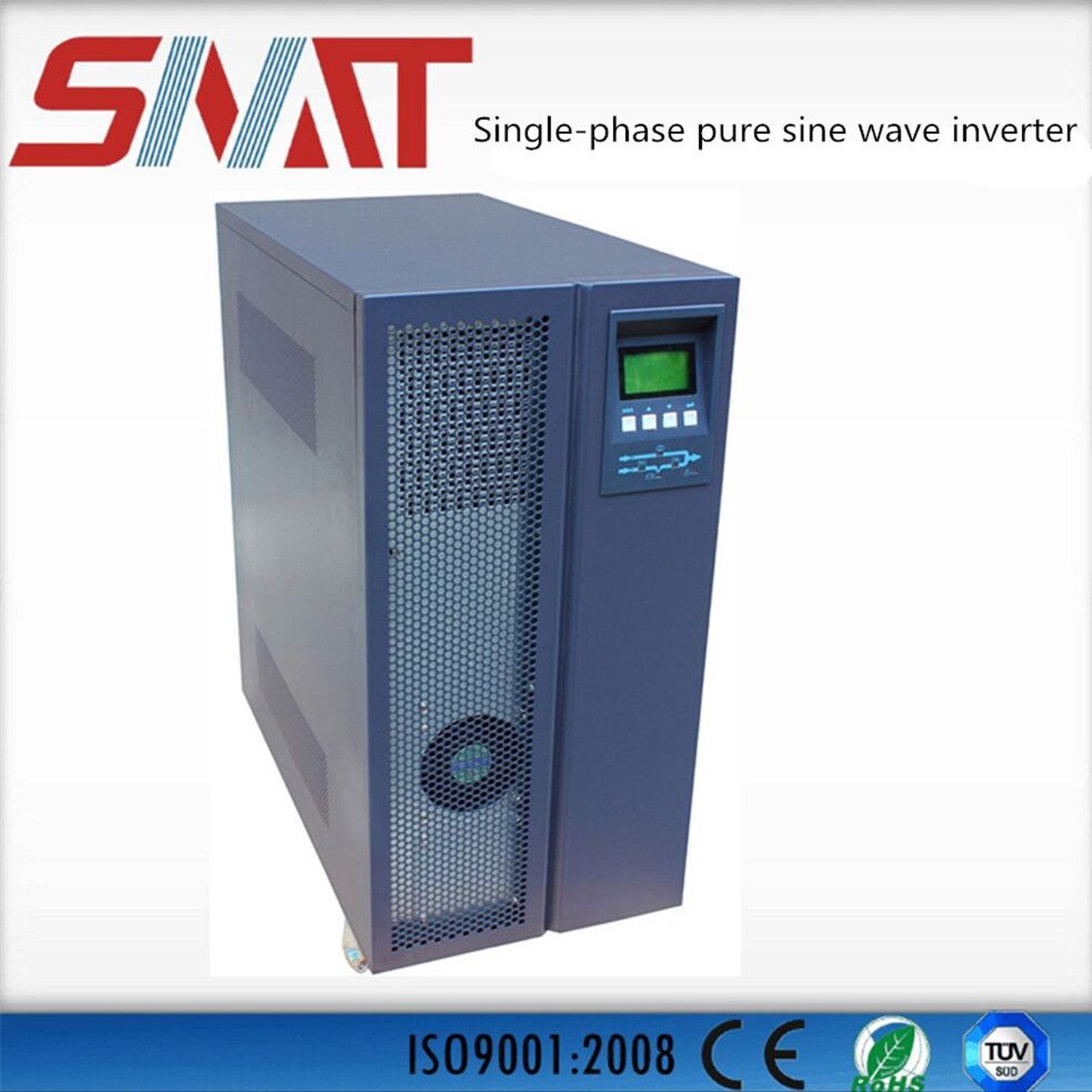

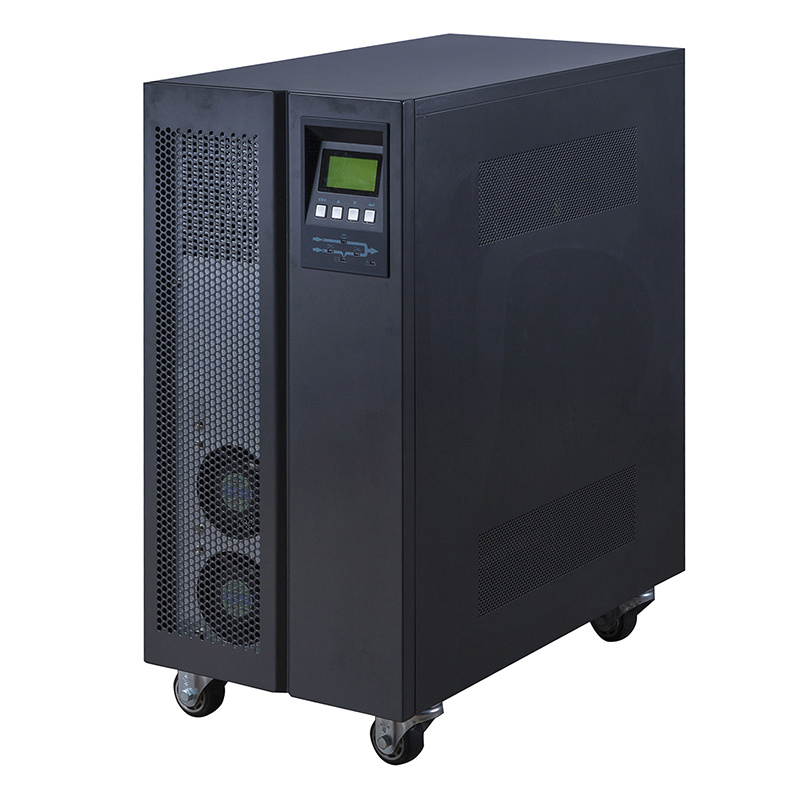

8kw/10kw 192VDC Single-Phase Power Pure Sine Wave Inverter for Solar System

8kw/10kw 192VDC Single-Phase Power Pure Sine Wave Inverter for Solar System
Price: US $ 720-950/Piece
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Western Union,Paypal
Prod Model: SN-6KW
Custom-Made: Supply
Service: OEM/ODM
MOQ: 1 Unit
Export Markets: Global
Application: Solar System

Product Description

8kw/10kw 192vdc  Single-Phase power pure sine wave Inverter for Solar System

Product Description





  • High reliability:Frequency tracking, noise filtering and low distortion
  • High adaptability:Wide range of input frequency, realizes stable operation of fuel generators
  • High optimal performance of the battery: Intelligent battery management technology
  • Overall automatic protection and alarms, such as output overload protection
  • Efficient IGBT (Insulated Gate Bipolar Transistor) Inversion technology









Technology Parameter
1KVA~20KVA(single into single out model)technical parameters list
model1KVA2KVA3KVA6KVA10KVA15KVA20KVA
Rated capacity(KW)0.8KW1.6KW2.4KW4.8KW8KW12KW16KW
Input voltageSingle phase two lines+earth wire,220V±25%
Battery voltage48VDC96/192VDC192/384VDC
noise≤52dB(distance 1m)≤60dB(distance 1m)
size(W*D*Hmm)256×618×626370×690×763
weight(Kg)30404560105130160




Single into single out and three into single out general technical parameters
inputFrequency50Hz/60Hz±10%
The factor of power≥80%
outputVoltage220V±5%
Voltage regulationVoltage regulator±1%,dynamic±2%,(0-100%load change <20ms)
Frequency stability50Hz/60Hz±1%(when the battery powered)
Frequency  rate of reverseLess than 1Hz/s
Harmonic distortionLinear load is less than 3%(full load),rectifier total harmonic is less than 5%
Over-load capacity130%
WaveformPure sine wave
efficiencyThe input AC to the output ACOver 95%
Switch timeCity power/battery switch0s
inverter/bypass switchLess than 4ms
batterytypeLead-acid sealed with free maintenance
Charging time8 hours after completely discharge charge to 90%



Shipping & Payment





Company Information










Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. As a world's leading supplier for solutions for electric energy and new energy, SNAT has powerful strength and is engaged in field of solar inverters, solar inverters with built-in solar controller, solar controllers, UPS, which are used for household, telecommunication, electricity, infrastructure and industrial markets. At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our warranty commitment, parts will be shipped for free during warranty period. We have professional technical team and are focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients.

Our advantage

 A. More than 10 years technical experience and advanced equipment
Our products are selling to all over the world, such as North America, south America,Eastern Europe, Southest Asia ,Africa and Mid-East,etc…
B. Quality Certification
80% electronic components are imported,to make sure the products with high quality and reliable excellent performance.
All of our products have CE certification, ISO9001:2008.
C. OEM & ODM
OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality Service
Any inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
E. As a leading manufacturer,the price of our products is competitive.

Contact us





A Professional Manufacturer Specialized in field of Solar power system

Foshan SNAT Energy Electrical Technology Co. Ltd is a professional manufacturer specialized in the field of solar inverters, solar inverters with controllers built-in, solar controllers, UPS which are used for household, telecom, electricity, infrastructure and industrial markets.

At the same time, our company is concurrently engaged in solar panels, batteries for solar power system. All products purchased by our company have our wanrranty commitment, parts will be shipped for free during wanrranty period.

Company information

Foshan SNAT Energy Electrical Technology Co. Ltd is established in 2004. Our company's predecessor is a trading company and engaged in UPS since 1998 and develop solar inverter since 2004. We are haveing professional technical team and focus on customers' demands, continuous innovation, and establish good cooperation with more and more clients. The leading-edge technology has become a competitive advantage for our customers and business.

Corporate development prospect

Foshan SNAT Energy Electrical Technology Co. Ltd is becoming a strong brand step by step depending on high quality and strict self-demanding. We have won a good reputation among clients. Nowadays, we have prepared well to develop much more wide international market. We sincerely wish to corporate with more and more international traders to vreat a better future!
