| Prod Model: |
nkyyy-30400 |
| Product Name: |
3000W --40000W off Grid Solar Power System Invert |
| Accessory: |
Solar Inverter, Solar Panel, Battery, . |
| Color: |
Orange, Black, Blue |
| Current: |
15A-100A |
| Display: |
LED/LCD |
| MOQ: |
1 Unit |
| Efficiency: |
>95% |
| Export Market: |
Golbal |
| Warranty: |
1~2 Years |
| Work Time: |
All Day |
Product Description

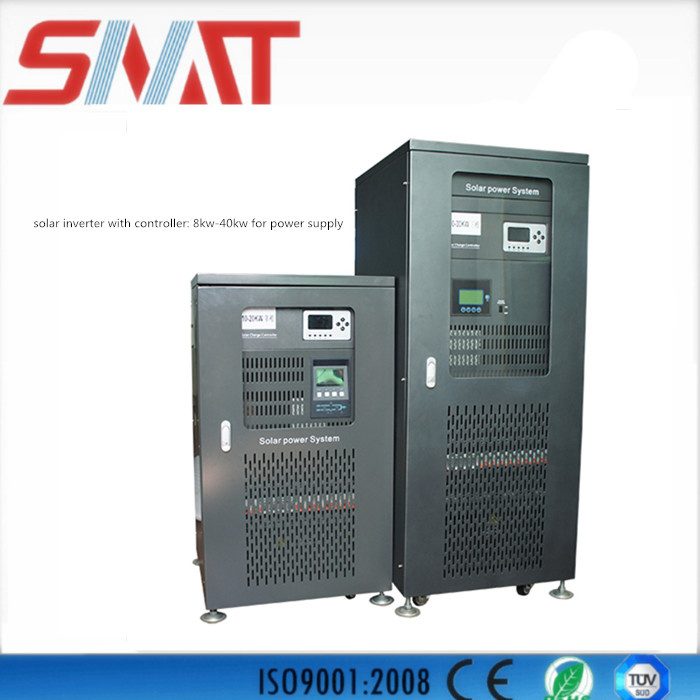

8KW --40KW Solar Power System Inverter with Charge Controller for Industrial
Product overview
Product is an integrated intelligent inverter with built-in charge controller system designed for large photovoltaic power
Its built-in controller can realize charge management for a battery pack by multiple solar arrays to improve charge efficiency and life of the battery pack
Thanks to its full digital vector control technology based on real-time processing by DSP, MCU and DDC, it has perfect protection functions and high reliability
Its mains supply preferred mode.and battery preferred mode are all settable, thus making it easy to meet the different application needs of users It has an LCD
Widely applied to large solar power generation occasions including families
Schools, public lighting, industrial and mining enterprises, frontier defense, sea islands, pasturing areas
Main features:
High reliability
Frequency tracking noise filtering and low distortion in inverter output because of double-conversion design
High adaptability
Wide range of input frequency which realizes stable operation of fuel generators
High optimal performance of the battery
An intelligent battery management technology, which guarantees a longer battery life and decreases the times of battery maintenance
An advanced constant-voltage charge technology, which activates the battery to the most extent saves the charge time and guarantees a longer battery life
Overall and reliable protection
Power-on test function, which can avoid the faults because of hazards of the inverter
Efficient iGBT (insulated Gate Bipolar Transistor)
Inversion technology
Good high-speed switching feature. large-voltage and large-current operating characteristics. and voltage drive of IGBT (fifth-generation IGBT has a lower saturation voltage drop and higher operation efficiency and reliability)
8kw~20kw (single phase)
| Model | NKD-8KW | NKD-10KW | NKD-15KW | NKD-20KW |
| Rated power | 8KW | 10KW | 15KW | 20KW |
| Battery | Rated voltage | 192V DC/220V DC/384V DC |
| Voltage of over discharge protection | 172V DC/194V DC/345V DC |
| Controller | Rated current | 100A |
| Rated voltage | 192V DC/220V DC/384V DC |
| Number of inputs | 4 |
| Max. current of each input | 25A |
| Solar input voltage | <330V DC/<378V DC/<660V DC |
| Voltage of overcharge protection | 220V DC/255V DC/445V DC(programmable) |
| Control accuracy | ±0.1 |
| Display accuracy | ±0.1 |
| Efficiency | >95% |
| Inverter | Input voltage | 88-132V AC/176-264V AC |
| Input frequency | 45-65Hz |
| Output voltage | 110V AC/220V AC |
| Output frequency | 50/60Hz |
| Output waveform | Pure sine wave, THD<4% (full load) |
| Protection function | Output short circuit protection, over-voltage protection, under-voltage protection, low battery protection, etc. |
| Manual power-on/off | Manual power-on/off preferred |
| Automatic power on/off | Light-operated power-on+fixed-time power-off (programmable) |
| Other | Ambient temperature for operation | 0-40ºC |
| Relative humidity for operation/storage | 20-90% (No condensation, maximum) |
10kw~40kw (three phase )
| Model | NKG-10KW | NKG-15KW | NKG-20KW | NKG-30KW | NKG-40KW |
| Rated power | 10KW | 15KW | 20KW | 30KW | 40KW |
| Battery | Rated voltage | 192V DC/220V DC/384V DC | 384V DC |
| Voltage of over discharge protection | 172V DC/194V DC/345V DC | 345V DC |
| Controller | Rated current | 100A |
| Rated voltage | 192V DC/220V DC/384V DC |
| Number of inputs | 4 |
| Maximum current of each input | 25A |
| Solar input voltage | <330V DC/<378V DC/<660V DC | <660V DC |
| Voltage of overcharge protection | 220V DC/255V DC/445V DC(programmable) | 445V DC(programmable) |
| Control accuracy | ±0.1 |
| Display accuracy | ±0.1 |
| Efficiency | >95% |
| Inverter | Input voltage | 176-364V AC/304-456V AC |
| Input frequency | 45-65Hz |
| Output voltage | 220V AC/380V AC ( three-phase four-wire) |
| Output frequency | 50/60Hz |
| Output waveform | Pure sine wave, THD<4% (full load) |
| Protection function | Output short circuit protection, over-voltage protection, under-voltage protection, low battery protection |
| Manual power-on/off | Manual power-on/off preferred |
| Automatic power on/off | Light-operated power-on + fixed-time power-off (programmable) |
| Other | Ambient temperature for operation | 0 to 40°C |
| Relative humidity for operation/storage | 20-90% (No condensation, maximum)
|
our advantage
A. More than 10 years technical experience and advanced equipment
Our products are selling to all over the world, such as North America, south America,Eastern Europe, Southest Asia ,Africa and Mid-East,etc…
B. Quality Certification
80% electronic components are imported,to make sure the products with high quality and reliable excellent performance.
All of our products have CE certification, ISO9001:2008.
C. OEM & ODM
OEM & ODM are available which can meet your any request with our professional engineering team.
D. Quality Service
Any inquiry replied within 12 hours
Any problem resolved within 24 hours
With 12 months warranty
E. As a leading manufacturer,the price of our products is competitive.
