8kw Low Frequency off Grid Inverter with Ipm Module and LCD Display

Name: 8kw Low Frequency off Grid Inverter with Ipm Module and LCD Display
Brand: all-electronics-online.com
SKU: 748424555
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	US $ 500/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	MY-8KW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Capacity:	8kw
Input Voltage:	220V
Output Voltage:	380V
Type:	DC/AC Inverters
Power Source:	Solar Power
Output Power:	>1000W
Phase:	Single Phase to Three Phase
Application:	Home System
Brand:	Powlik

Product Description

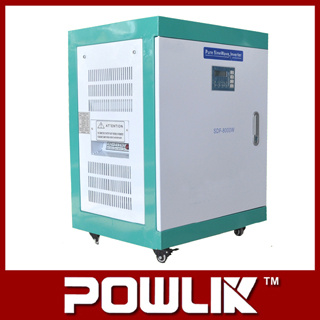

8KW Low Frequency off Grid Inverter with Ipm Module and LCD Display

Sine wave series inverter is one of the most advanced DC to AC conversion products in the world, it has the main advantages of high quality sine wave AC output, microcomputer control, humanness design, and it is simple, stable, no noise and no pollution. It is suitable use for areas without electricity, vehicles, ships, solar energy, wind turbine etc. The inverter can also supply AC voltage to all kinds of power tools, air conditioners, electric motors, refrigerators, fluorescent lights, televisions, electric fans and other power supply.

The inverter output waveform is pure sine wave; this kind of AC power is suitable for most industrial electronics and home appliances, the power supply features much better than other modified sine wave and square wave.

Technical Features:

1.Using the fifth efficient IPM power module from Mitsubishi with stable performance and it's service life

2. Adopts new magnetism material, largely reduce machine consumption, making efficiency up to 98%.

3.Adopts black pure aluminum radiator, which confirms the best radiating performance.

4.Low Frequency Transformer, which ensures that inverter has high efficiency and low no-load loss.

5. Pure sine wave output, has higher efficiency and higher capability of driving load.

6.LCD display, Small size, high efficiency, easy installation.

Model		MY-8KW
Isolation		Low Frequency Transformer
DC Input	Input rated voltage(VDC)	96V	120V		192V
	Input rated current(A)	83A	67A		42A
AC Output	Rated AC output power	8KW
	AC output waveform	Pure sine wave
	Phases	Single-Phase		Three-Phase
	Output rated voltage	220VAC ±3%		380VAC±3%
	Output Frequency	50Hz/60Hz±0.05Hz
	Output rated current(A)	36A		12A (phase current)
	Power Factor(PF)	0.9
	Overload Ability	150%, 10s
	Efficiency	≥92~98%
	Waveform distortion rate (THD)	<3%
	Crest Factor (CF)	3:1
	Display	LCD
	Electrical insulation properties	2500Vac, 1 Minute
	Ambient temperature	-15~+55
	Using environment humidity	0~90%,No condensation
	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Noise	<40db< span="">
	Degree of protection	IP20(indoor)
	Using altitude(m)	≤2000
CE Standard	EN60950-1:2006+A11:2009, EN61000-6-4:2007+A1:2001, EN61000-6-2:2005, EN61000-3-12:2005, EN61000-3-11:2000

Minyang Group Co., Ltd. Mainly specilized in manufacturing and supply busbar trunking system, power transformer, insulator, fuse cutout, voltage stabilizer, surge arrester, power supply, Load breaker switch, isolating switch, switchgear sets, substations, cables and wires etc.

MINYANG GROUP located in Liushi, the electric capital of China, is specialized in developing, manufacturing and distributing power supplies & switchgears, along with about 150 components.

MINYANG GROUP established with 5 specilized manufacturing factories, Owning skilled workers, advanced equipment and strict quality control process, MINYANG has passed ISO9001: 2000 and obtained CE, CB, CCC etc. Certificates. Our products are enjoying high popularity in Bangladesh, India, UAE, Iran, Saudi, South Africa and Brazil etc.

MINYANG takes "quality is life of enterprise"as its tenet, rewards customers with quality products and perfect services, and creates brilliant future in Chinese electric equipment industry.
