0.8mm Board Thickess PCB Board RO4350b with Immersion Gold

Name: 0.8mm Board Thickess PCB Board RO4350b with Immersion Gold
Brand: all-electronics-online.com
SKU: 822227945
Availability: InStock
Rating: 4.9 (136 reviews)

Price:	US $ 0.68/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-217-V2.17
Surface Finish:	Immersion Gold
PCB Thickness:	0.8mm
Copper Thickness:	1 Oz
Solder Mask:	Green
Silkscreen Legend:	White
Via:	Plated Through Hole (Pth)
Test:	100% Electrical Test
Total Drill:	489
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Dielectric:	RO4350b 30mil
Material:	Hydrocarbon/Woven Glass
Insulation Materials:	Glass Reinforced Hydrocarbon

Product Description

RO4350B PCB prototypes 30mil (0.762mm) Base Material 1oz with Immersion Gold 10up Panel in Wifi
Amplifier

Commodity Introduction
This is a type of RO4350B PCB for the application of Wi-Fi Amplifier. It's a 2 layer board at 0.8mm thick. The
base laminate is from ROGERS CORP, Solder mask and silkscreen from Taiyo. It's fabricated per IPC 6012

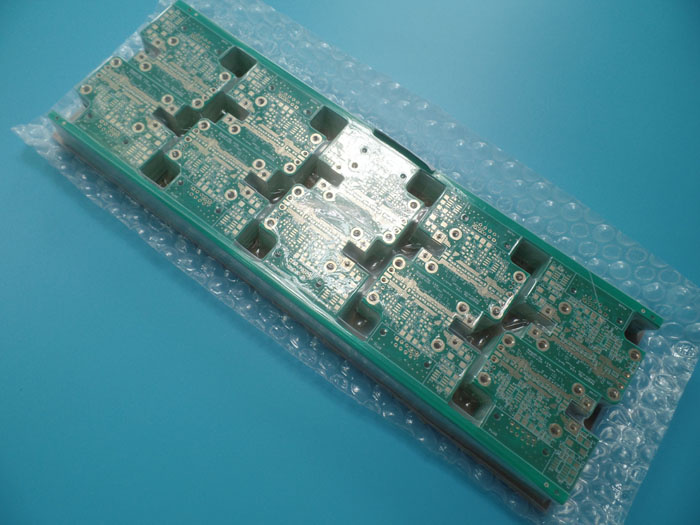

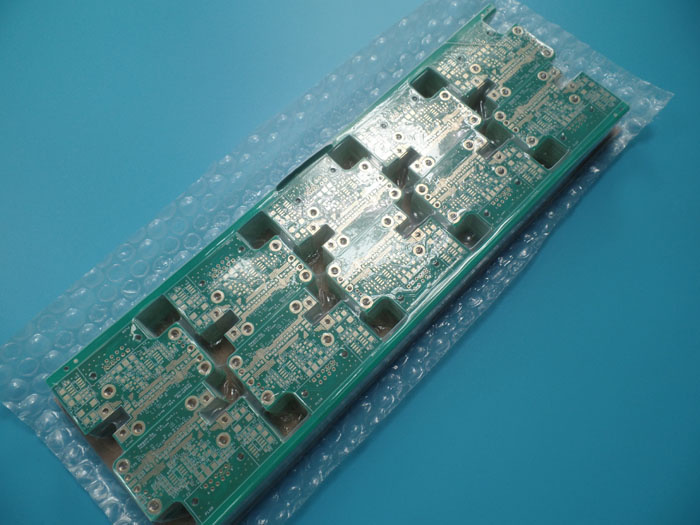

Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.

Basic parameters

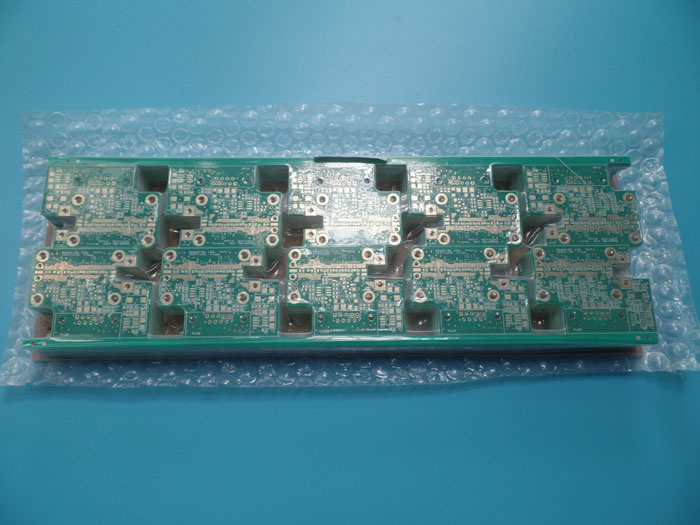

Panel size:	235 x 120mm/10up
Layer count:	2 layers
Base material:	RO4350B 30mil
PCB thickness:	0.8mm
Copper weight:	1oz finished
Surface finish:	Immersion gold
Solder mask:	Green
Silkscreen legend:	White

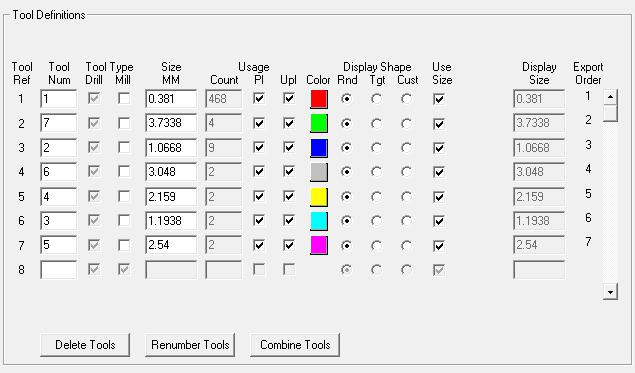

Total drill:	489
Via:	open
Production type:	PCB prototypes
Plated Through Hole (PTH)
UL 94-V0 Approval

NC drill

Learn PCB and Buy PCB:Advantages
1. RO4350B Excellent high frequency performance
2. Low dielectric tolerance and loss
3. Stable electrical coefficient of dielectric constant
4. ISO certified PCB manufacturing factory
5. DDU Door to door shipment with competitive shipping cost

More applications
Splitter HDMI
3G Router
Bluetooth Module
Wifi Amplifier
Bluetooth USB Dongle

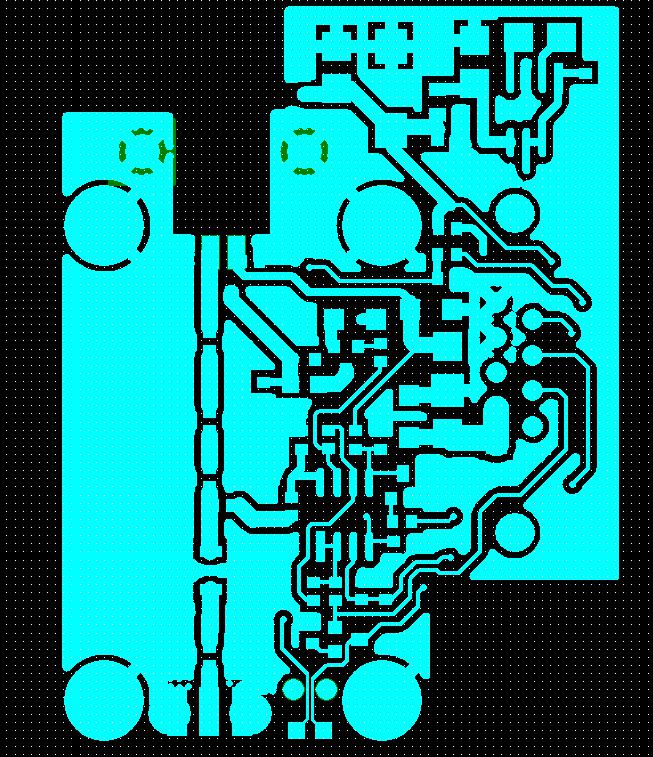

Top layer

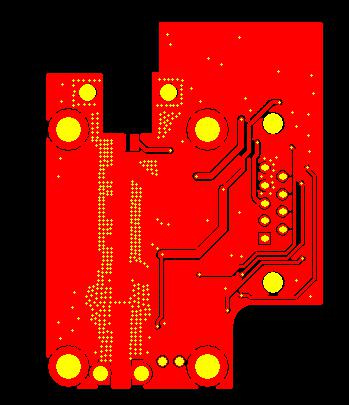

Bottom layer

Export area
Worldwide

Type of artwork to be supplied
Gerber RS-274-X, PCBDOC, protel98 etc.

Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.

The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.

Different plant scale to suit for your requirements

16000 square meter factory building

30000 square meter month capability

8000 types of PCB per month

ISO9001, ISO14001, TS16949, UL Certified

We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.

A) Various kinds of PCB products

Double sided PCB

Multilayer PCB up to 32 layers

FR-4 PCB (Tg130, Tg170)

High frequency PCB (RO4350B, RO4003C)

Aluminum PCB (1W/MK, 2W/MK, 3W/MK)

Flexible PCB

HDI PCB Board

B) Multiple PCB technology to meet the market demands

Blind via PCB, Via in pad PCB, Fine pitch BGA PCB

Impedance controlled PCB

Heavy copper PCB

Hybrid material PCB

C) Many discount policies for new customers

SMT stencil foil, free of charge

Prototype shipping cost, free of charge

Prototype test, free of charge

PCB panelization, free of charge

D) High quality PCB services

Engineering design prevents problems from occurring in pre-production.

Meet your PCB needs from prototype to mass volume production.

Eligible products rate of first production: >95%

Delivery on time: >98%, door to door shipment service

Customer complaint rate: <1%

Choose BichengPCB means you choose hassle free.
