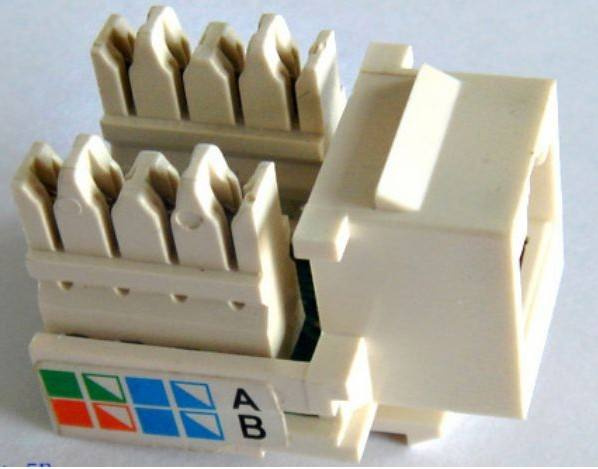

8p8c CAT6 Keystone Jack

Name: 8p8c CAT6 Keystone Jack
Brand: all-electronics-online.com
SKU: 812292255
Availability: InStock
Rating: 4.4 (96 reviews)

Price:	US $ 0.1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	cat6 jack
Usage:	Computer
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

cat5E keystone jack
According to UL 1863
Current rating: 1.5 Amp Max

SMB-KJ-C5E-006

CAT5E 8P8C UTP
Specifications:
Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.
Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173
Electrical:
According to UL 1863
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
Materials:
Housing: PC
IDC: PC , Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04") thickness, 2 layers
Contact: PC ,
0.45mm(0.018") Diameter Phosphor bronze with Gold plating on contact area.
