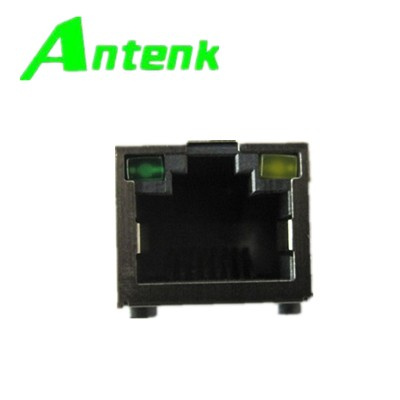

8p8c RJ45 Connector

8p8c RJ45 Connector
Price: US $ 0.8/Piece
Trade Terms: FOB,EXW
Min Order: 500/Piece
Pay Type: T/T,Paypal,Western Union
Prod Model: RMT-119A-12F6-GY
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application: Communication
Installation Mode: Rotary Jack
Type: Xd+Ms+SD+MMC Jack
Interface Type: Drawer-Type
Shape: Rectangular
Production Process: Injection
Customized: Non-Customized
Feature: Fire/Flame Retardant
Cards Support: Single Card

Product Description

Key Specifications/Special Features:Electrical data
Complies with IEEE standards and all 10/100 Ethernet
Specifications including 350uH with 8mA DC bias
Current rating: 1.5A AC (rms)/DC
Voltage rating: 125V AC (rms)/DC
Contact resistance: 30MΩ max
Insulation resistance: 500MΩ min
Withstanding voltage: 1000V AC rms
Material
Housing: class filled polyester 94V-0
Contact: phosphor bronze/plated nickel 30u min, gold plated on content area 6u min
Shell: copper alloy/nickel plated
Mating performances
Mating/unmating force: 30N max
Retention strength: 50N for 60s+-5s
Durability: 750 cycles min
Environmental characteristics
Operating temperature range: 40°C-85°C
Shenzhen Antenk Electronics Co., Ltd., was established in 2004 year, we mainly produce high quality of PCB Jack, wire to board connectors, board to board connectors, I/O connectors, terminal block, and cable assembly such as Wire assembly, RF cables, computer peripheral cable from our production line too.

We are manufacture with workers around 200 staff in south of China, mostly of products 65% export for overseas market.In the same time, all of our new products are and will always be designed for a various of application and to meet UL and CSA regulations, also EU directive RoHS compliant.We are carry with ERP system for operation and shipping.
All staff of Antenk electronics Co., Ltd sincerely welcomes all visitings and instructions from our friends, and we are willing to establish the long-term and intimate co-operation relationships with all of our friends and customers.

Antenk Philosophy
Perfect service;
Reasonable price;
Innovation continual;
Environment friendly.
