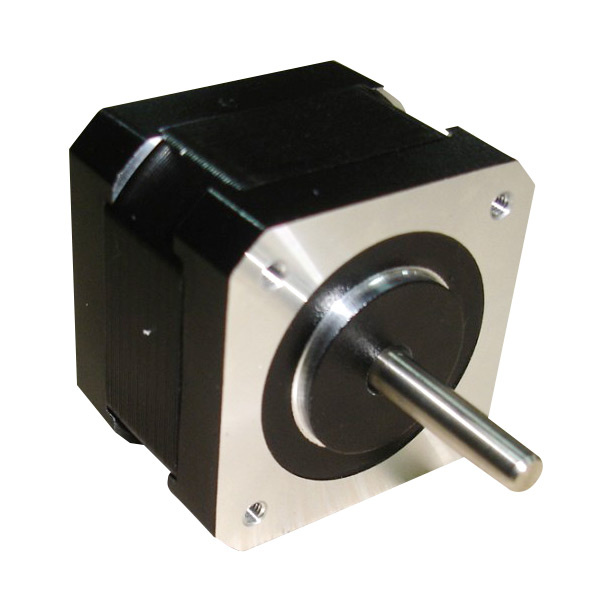

0.9, 1.8 Step Motor/Stepper Motor (42H) for Stage Lighting

Name: 0.9, 1.8 Step Motor/Stepper Motor (42H) for Stage Lighting
Brand: all-electronics-online.com
SKU: 671357345
Availability: InStock
Rating: 4.9 (134 reviews)

Price:	US $ 25/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	42H
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Step Angle Accuracy:	±5%
Resistance Accuracy:	±10%
Ambient Temperature:	-10-+50
Number Of Stator:	Two-Phase
Excitation Mode:	HB-Hybrid
Type:	Magnetic-Electric

Product Description

Item Specification
Step Angle Accuracy ± 5%(full step, no load)
Resistance Accuracy ± 10%
Inductance Accuracy ± 20%
Temperature Rise 80Max. (rated current, 2 phase on)
Ambient Temperature -10-+50
Insulation Resistance 100MΩMin. 500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.06Max. (450 g-load)
Shaft Axial Play 0.08Max. (450 g-load)

Model No.		Rated Voltage	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Tprque		#Of Leads	Rotor Inertia	Weight	Length
Single Shaft	Double Shaft	V	A	Ω	mH	Oz-in	g-cm		g-cm 2	Kg	mm
42H33HM-0956A	42H33HM-0956B	4	0.95	4.2	4	22	1580	6	35	0.22	33
42H33HM-0606A	42H33HM-0606B	6	0.6	10	9.5
42H33HM-0316A	42H33HM-0316B	12	0.31	38.5	33
42H33HM-1334A	42H33HM-1334B	2.8	1.33	2.1	4.2	30	2200	4
42H39HM-1206A	42H39HM-1206B	4	1.2	3.3	4	36	2590	6	54	0.28	39
42H39HM-0806A	42H39HM-0806B	6	0.8	7.5	7.5
42H39HM-0406A	42H39HM-0406B	12	0.4	30	30
42H39HM-1684A	42H39HM-1684B	2.8	1.68	1.65	4	50	3300	4
42H47HM-1206A	42H47HM-1206B	4	1.2	3.3	4	44	3170	6	68	0.35	47
42H47HM-0806A	42H47HM-0806B	6	0.8	7.5	10
42H47HM-0406A	42H47HM-0406B	12	0.4	30	38
42H47HM-1684A	42H47HM-1684B	2.8	1.68	1.65	4.1	62	4400	4
