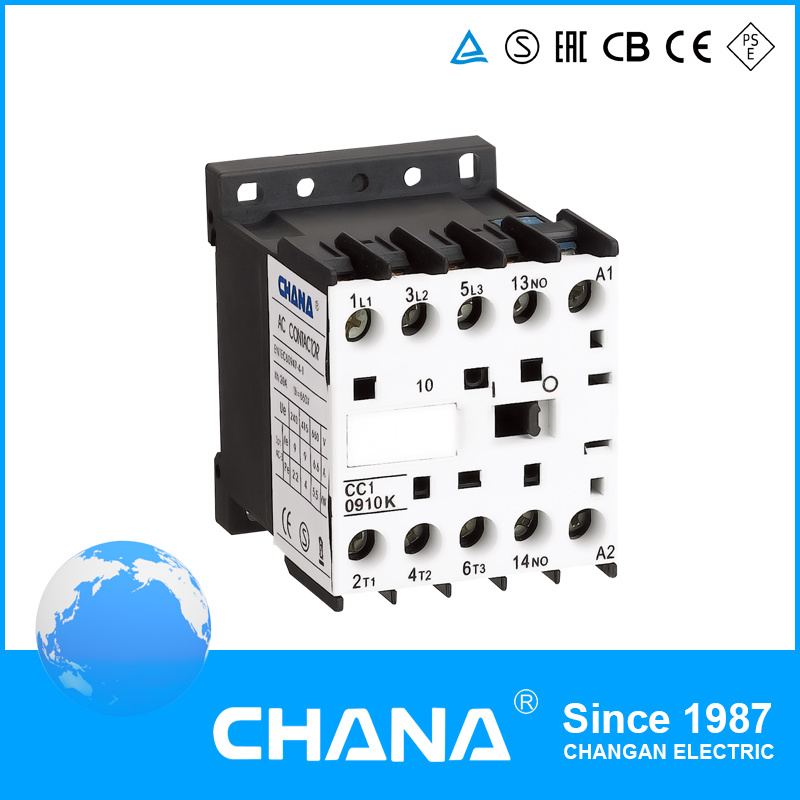

9~12A Mini Contactor with Ce CB and S Approvals

Name: 9~12A Mini Contactor with Ce CB and S Approvals
Brand: all-electronics-online.com
SKU: 813906945
Availability: InStock
Rating: 4.5 (112 reviews)

Price:	US $ 3.2/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CC1-09
Brand Type:	Chana or OEM

Product Description

1. General

1) Application: remote making & breaking circuits;protect circuit from over-load when assembling with thermal over-load relay;frequent start-up and control AC contactor....
2) Electric ratings:AC50/60Hz, 690V,up to 12A
3) Utilization category: AC-3, AC-4
4) Altitude: ≤2000m
5) Ambient temperature: -5ºC~+40ºC
6) Mounting category: III
7) Mounting conditions: inclination between the mounting plane and the vertical plane should not exceed ±5°
8) Standard: IEC/EN 60947-4-1 IEC/EN 60947-5-1
9) Control coil voltage (AC Coil Operation)

Volts (VDC)		24	36	42	48	110	127	220	230	240	380	415	440	480	500	600
Code	50Hz	B5	C5	D5	E5	F5	G5	M5	P5	U5	Q5	N5	R5	-	S5	Y5
	60Hz	B6	-	D6	E6	F6	G6	M6	-	U6	Q6	-	R6	T6	-	-
	50/60Hz	B7	-	D7	E7	F7	-	M7	P7	-	Q7	N7	R7	-	-	-

Control coil voltage (DC Coil Operation)

Volts(VDC)	12	24	36	48	110	220
Code	JD	BD	CD	ED	FE	MD

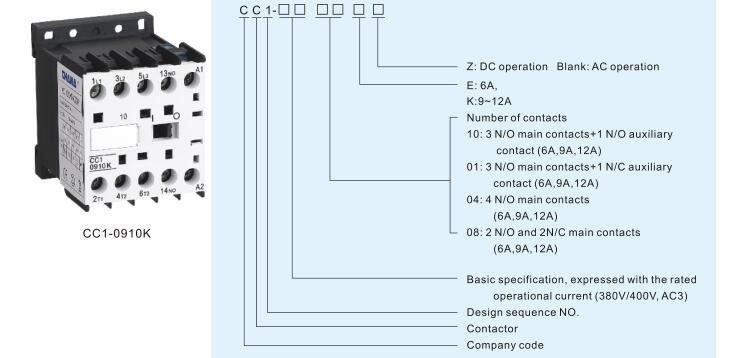

2. Type Designation

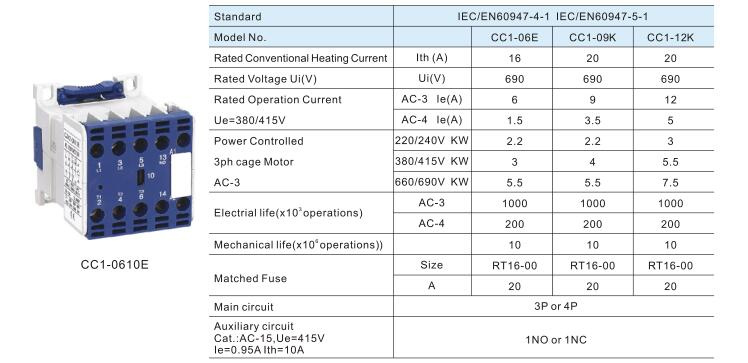

3. Technical Data

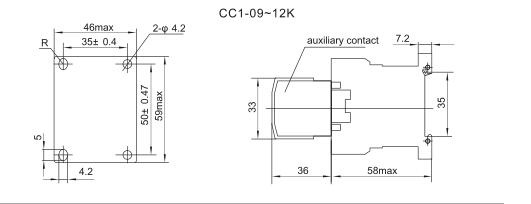

4. Overall and mounting dimensions (mm)

5. Certificates

6. Shipping:

1. Normally by SEA From NINGBO TO ...
2. Products are shipped via UPS / DHL / FedEx / TNT and so on expresses (door to door) If the amount is Small.
3. We Provide Drop shipping Service.
4. In order to ensure you receive your order tax free upon import, we can declare lower value according to your demand.
5. Shipping via EMS. UPS. FedEx and TNT express usually takes 3~7days dependent on the destination country.

7. Payment:

1. We usually use T/T (30% deposit before production and 70% to be paid against the copy of B/L).
2.If the Amount is small,you can pay to us by western union/Paypal/Money Gram.
3. L/C also acceptable

8. Warranty:

1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of good

Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.

Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.

We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.

All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".

We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
