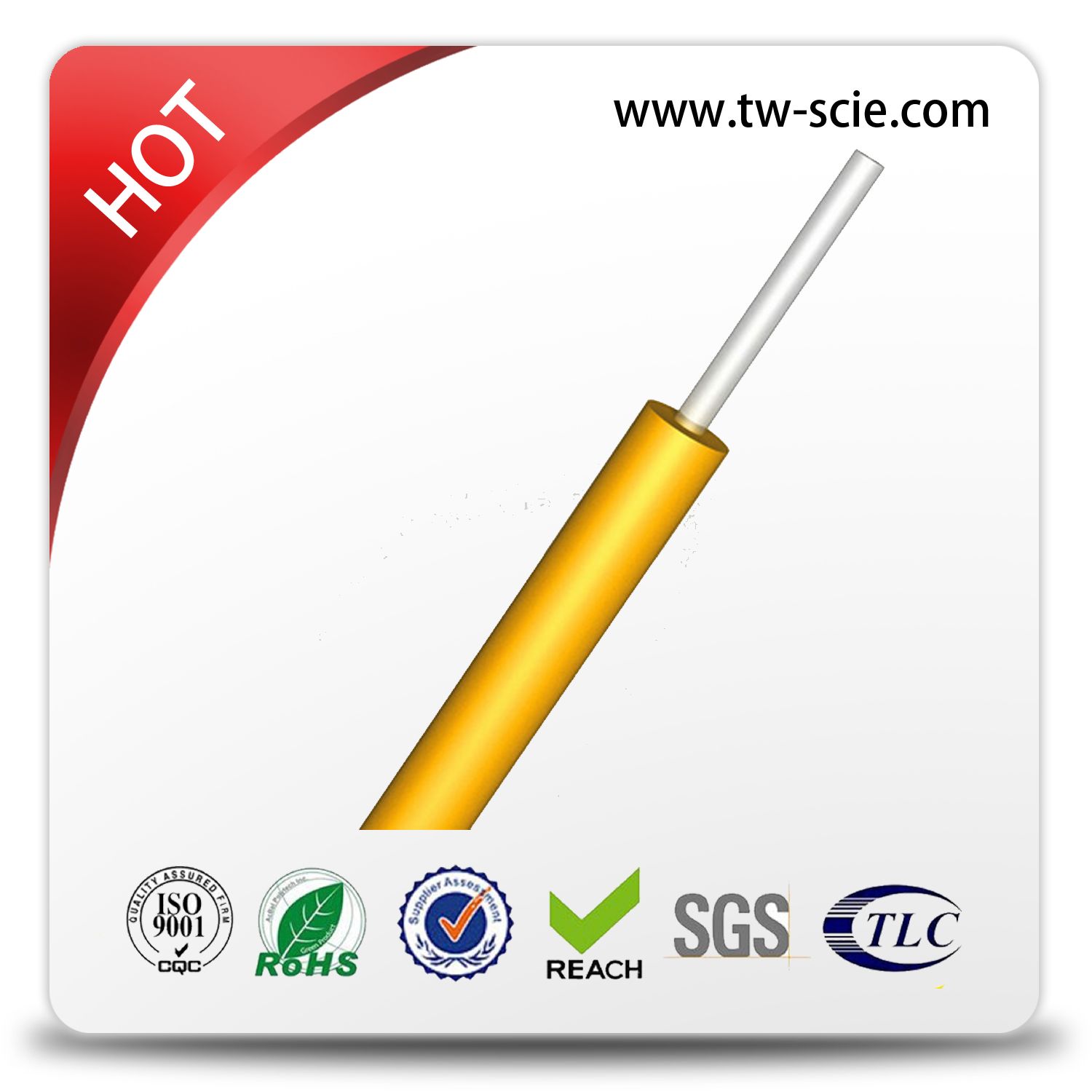

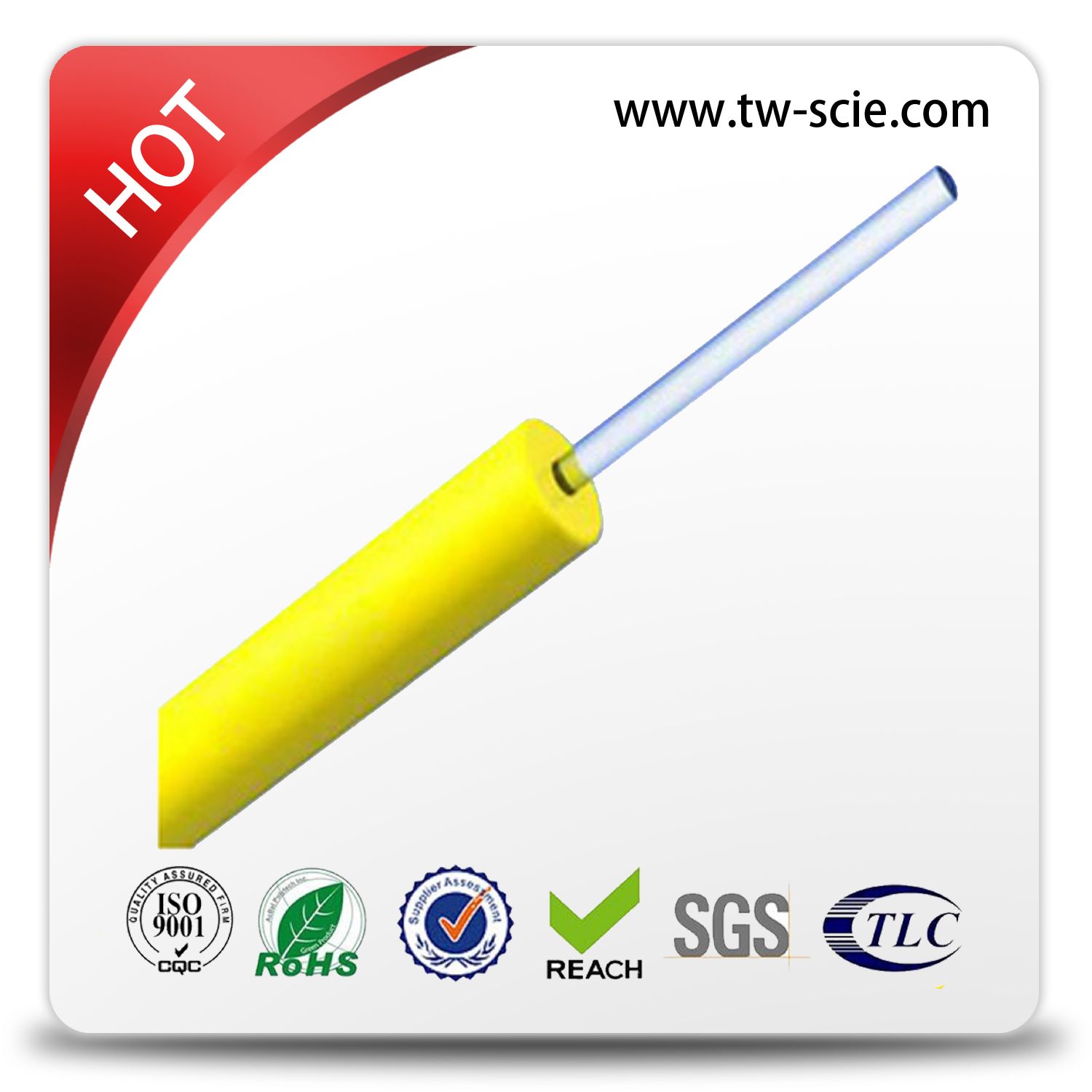

900mm Tight Buffer Indoor Fiber Optic Cable 1 Core Fiber Optic Internet Cable
Cable Description
Fiber Optic Cable use 900μm flame-retardant tight buffer fiber as optical communication medium.
Aramid yarn as strength member units,such unit is extruded with a layer of PVC or LSZH material as jacket.
Application
· Adopted to indoor distribution
· As pigtail of communication equipment
· Suitable for communication equipment served
· Can be installed conveniently
Characteristics
· Two single-fiber as basic unit.flat twin configuration
· Single-cable with 0.6 tight buffer. Kevlar yarn
· Flexible or out sheath independent strength member
· Excellent mechanical and environmental performance

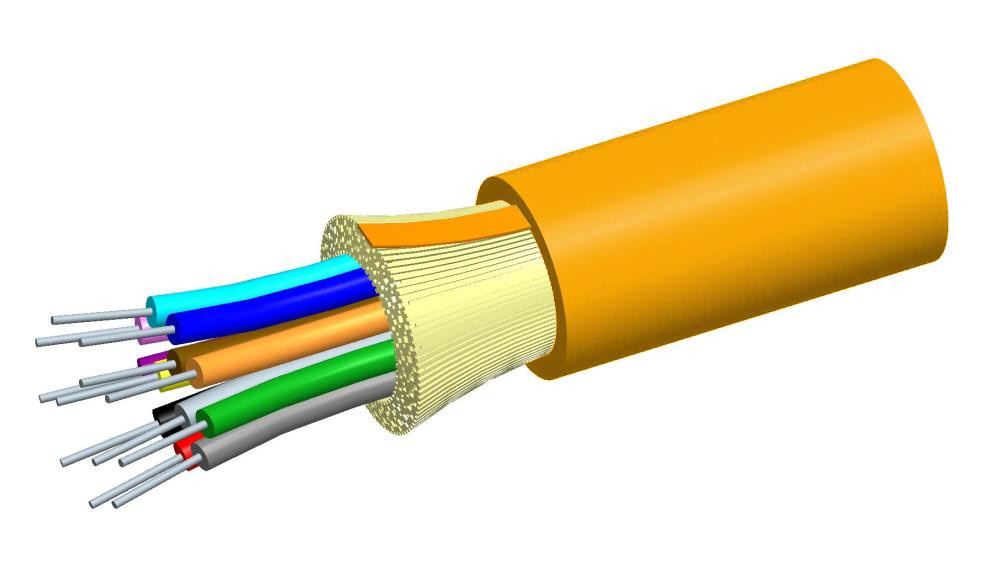

Cable construction details
| Items | Description | | Number of fiber | 1 core | | Fiber | type | SM (G652D, G657A, G657B); MM (OM1, OM2, OM3, OM4) | | diameter | 900µm | | Strength member | materia | kevlar yarn | Self support
Messenger wire | material | / | | diameter | / | | Outer sheath | material | PE / LSZH / OFNR / PVC | | diameter | 3.0mm | | Cable size (Height * width) | / | | Cable weight | 1KG | | Installation Temperature range(ºC) | -20+60 | | Operation and transport temperature(ºC) | -40+70 | | Min Bending Radius(mm) | Long term | 15D | Min Bending
Radius(mm) | Short term | 30D | Min allowable
Tensile Strength(N) | Long term | 300 | Min allowable
Tensile Strength(N) | Short term | 1000 | | Crush Load (N/100mm) | Long term | 500 | | Crush Load (N/100mm) | short term | 1000 |
Fiber characteristic
| Fiber style | Unit | SM
G652 | SM
G652D | MM
50/125 | MM
62.5/125 | MM
OM3-300 | | condition | nm | 1310/1550 | 1310/1550 | 850/1300 | 850/1300 | 850/1300 | | attenuation | dB/km | ≤ | ≤ | ≤ | ≤3.0/1.0 | ≤3.0/1.0 | | 0.36/0.23 | 0.34/0.22 | 3.0/1.0 | ---- | ---- | | Dispresion | 1550nm | Ps/(nm*km) | ---- | ≤18 | ---- | ---- | Dispresion | | 1625nm | Ps/(nm*km) | ---- | ≤22 | ---- | ---- | | | Bandwith | 850nm | MHZ.KM | ---- | ---- | >=400 | >=160 | Bandwith | | 1300nm | MHZ.KM | ---- | ---- | >=800 | >=500 | | | Zero dispersion wavelength | nm | 1300-1324 | >=1302,
≤1322 | ---- | ---- | >= 1295,
≤1320 | | Zero dispresion slope | nm | ≤0.092 | ≤0.091 | ---- | ---- | ---- | | PMD Maximum Individual Fibr | | ≤0.2 | ≤0.2 | ---- | ---- | ≤0.11 | | PMD Design Link Value | Ps(nm2*k
m) | ≤0.12 | ≤0.08 | ---- | ---- | ---- | | Fibre cutoff wavelength λc | nm | >= 1180,
≤1330 | >=1180,
≤1330 | ---- | ---- | ---- | Cable sutoff
wavelength λcc | nm | ≤1260 | ≤1260 | ---- | ---- | ---- | | MFD | 1310nm | um | 9.2+/-0.4 | 9.2+/-0.4 | ---- | ---- | ---- | | 1550nm | um | 10.4+/-0.8 | 10.4+/-0.8 | ---- | ---- | ---- | Numerical
Aperture(NA) | | ---- | ---- | 0.200+/
-0.015 | 0.275+/-0.
015 | 0.200+/-0
.015 | Step(mean of bidirectional
measurement) | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | Irregularities over fiber
length and point | dB | ≤0.05 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.10 | | | | | | | | | | | Dicontinuity | Difference backscatter
coefficient | dB/km | ≤0.05 | ≤0.03 | ≤0.08 | ≤0.10 | ≤0.08 | | Attenuation uniformity | dB/km | ≤0.01 | ≤0.01 | | | | | Core dimater | um | | | 50+/-1.0 | 62.5+/-2.5 | 50+/-1.0 | | Cladding diameter | um | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | 125.0+/-0.1 | | Cladding non-circularity | % | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | ≤1.0 | | Coating diameter | um | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | 242+/-7 | Coating/chaffinch
concentrically error | um | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | ≤12.0 | | Coating non circularity | % | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | ≤6.0 | | Core/cladding conentricity error | um | ≤0.6 | ≤0.6 | ≤1.5 | ≤1.5 | ≤1.5 | | Curl(radius) | um | ≤4 | ≤4 | ---- | ---- | ---- |
|
Package

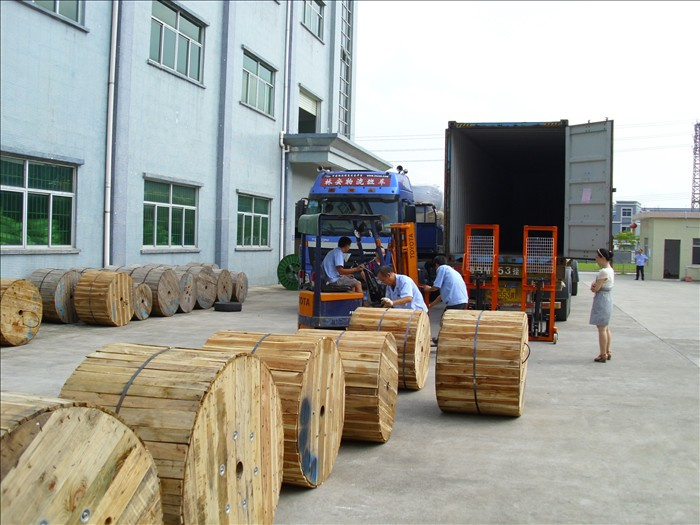

1. Packing material: Wooden drum
2. Packing length: standard length of cable shall be 2 km. Other cable length is also available if required by customers.
Cable marking and cable reel marking
The cable sheath shall be marked according to customer's requirement.
Tag:
tight buffered cable,
Breakout Fiber Optic Cable
