| Prod Model: |
GPAD881M24-7B |
| Input Frequency: |
50/60Hz |
| Power Factor: |
0.90 |
| Output Voltage: |
24V |
| Output Current: |
2.9A, 1.4A, 2.5A, 2.3A, 4A, 5A, 17.9A |
| Operating Temperature: |
0~55ºC |
| Storage Temperature: |
-20~65ºC |
| Output Efficiency: |
85% |
| Mtbf: |
≥200,000h |
| Output Type: |
Multiple |
| Warranty: |
2 Years |
| Connection Mode: |
Parallel Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
CCC |
| Output Power: |
880W |
| Input Voltage: |
180~264VAC |
| Brand: |
Goldpower |
Product Description

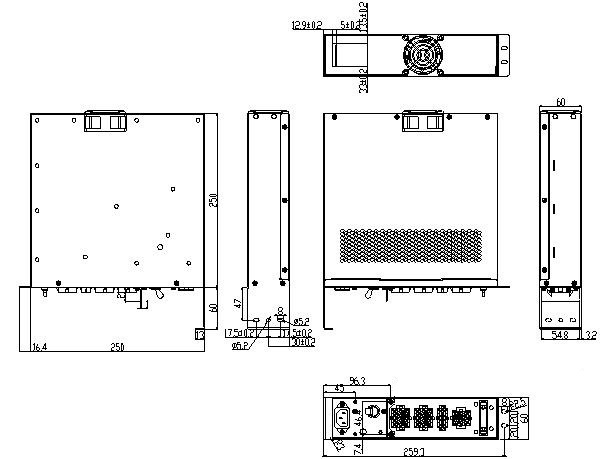

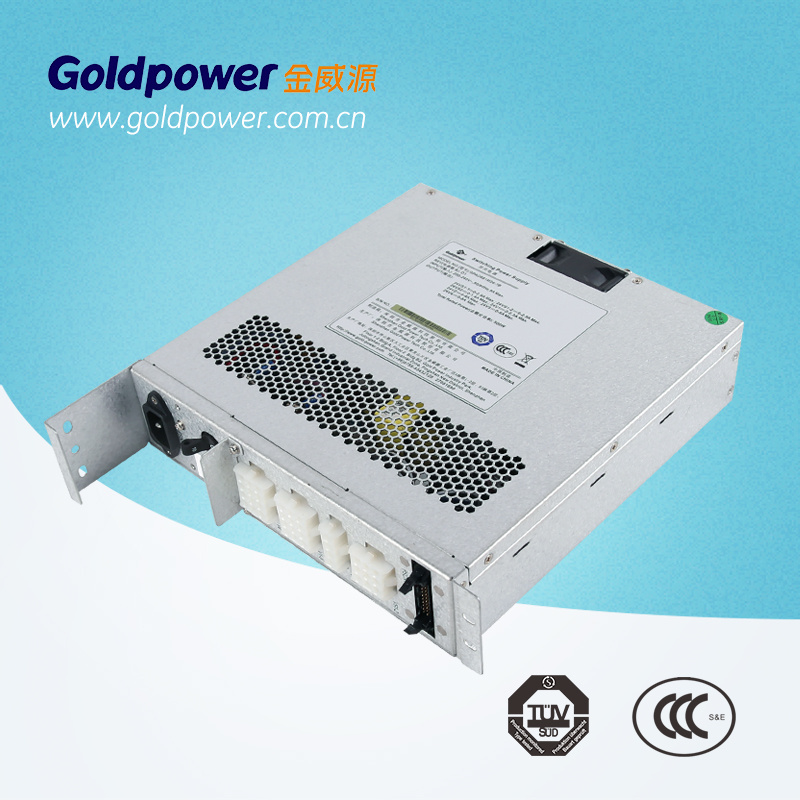

900W Multiple Output Customized Switching Power Supply is a High Efficiency financial self-service equipment power supply,with short-curcuit protection,over current protection,output over voltage protection and so on.
Features:1. Multiple Outputs
2. Applied to global grid
3. Low consumption for standby,high efficiency up to 85%,cost-effective.
4. Support hot plug,module designed,the installation easy to maintain,complete protection.
5.
High reliability,MTBF>20,0000Hours.Specification:| Input |
| Parameter | | Min. | Typ. | Max. | Unit | Remark |
| input voltage | | 180 | | 264 | Vac | |
| Input startup voltage range | | 180 | | 264 | Vac | |
| Input frequency | | | 50/60 | | Hz | |
| Max. input current | | | | 6 | A | |
| Max. input inrush current | | | | 40 | A | |
| Power factor | | 0.90 | | | | |
| Output |
| Parameter | | Min. | Typ. | Max. | Unit | Remark |
| DC output voltage range | 24VS1-1 | 24.25 | 25 | 25.75 | Vdc | +25.0V±3%
|
| 24VS2 | 24.25 | 25 | 25.75 |
| 24VS1-2 | 24.25 | 25 | 25.75 |
| 24V1 | 24.25 | 25 | 25.75 |
| 24V2 | 24.25 | 25 | 25.75 |
| 24V3 | 24.25 | 25 | 25.75 |
| 24V4 | 24.25 | 25 | 25.75 |
| DC output current range | 24VS1-1 | 0 | | 2.9 | A | |
| 24VS2 | 0 | | 1.4 |
| 24VS1-2 | 0 | | 2.5 |
| 24V1 | 0 | | 2.3 |
| 24V2 | 0 | | 4 |
| 24V3 | 0 | | 5 |
| 24V4 | 0 | 8 | 17.9 |
| Ripple+Noise(peak to peak) | 24VS1-1 | | | 290 | mV | |
| 24VS2 | | | 290 |
| 24VS1-2 | | | 290 |
| 24V1 | | | 290 |
| 24V2 | | | 290 |
| 24V3 | | | 290 |
| 24V4 | | | 290 |
| Output power | | | | 880 | W | |
| Output efficiency | 85 | | | | % | |
| Turn-on/down overshoot | | | | 25 | V | |
| Output raise time | | | | 200 | mS | |
| Ambient |
| Parameter | | Min. | Typ. | Max. | Unit | Remark |
| Operating temperature | | 0 | | 55 | ºC | |
| Storage temperature | | -20 | | 65 | ºC |
| Operating Relative humidity | | 10 | | 90 | % |
| Storage relative humidity | | 8 | | 90 | % |
| Altitude | | 0 | | 5000 | m |
| Atmosphere pressure | | 70 | | 106 | KPa |
| Cooling | Inside the fan comes with heat |
| Protection |
| Input under voltage protection | 130 | | 140 | Vac | |
| Input under voltage protection recovery | 140 | | 150 |
| Input over voltage protection | 276 | | 288 |
| Input over voltage protection recovery | 262 | | 272 |
| DC Output over voltage protection | 26 | | 36 |
| DC Output limited current protection | 24VS1-1 | 5.3 | | 8.5 | A | Auto recovery |
| 24VS2 | 3 | | 5 |
| 24VS1-2 | 3 | | 5 |
| 24V1 | 3.8 | | 6 |
| 24V2 | 5 | | 8 |
| 24V3 | 12 | | 16 |
| 24V4 | 28 | | 34 |
| Short-curcuit protection | Long-term short-curcuit,auto recovery. |
| Over temperature protection | TH2:88~98ºC,protection
<85ºC,recovery | ºC
| |
| EMC&Others |
| Parameter | Standard requirement |
| Radiation Emission(CE) | EN55022 - Class B |
| Conduction interference(RE) | EN55022 - Class B |
| surge | EN61000-4-5 LEVEL 3,line-line2KV,line-earth2KV |
| Electrostatic discharge (ESD) | EN61000-4-2 Contact discharge±6KV,Air discharge±8KV |
| Radiation immunity (RS) | EN/IEC 61000-4-3 Test frequency:80MHz~1000MHz,1.4GHz~2GHz;Electric field strength:3V/m; Amplitude modulation:80%AM(1KHz) |
| Conduction immunity (CS) | EN/IEC 61000-4-6 Test frequency:0.15MHz~80MHz,Test strength:3V;Amplitude modulation:80%AM(1KHz) |
| Fast transient bursts | EN/IEC 61000-4-4 ±2KV |
| Voltage sags andshort interruptions | EN/IEC61000-4-11 Fell to 70% UT,Duration 500ms;Fell to 0% UT,Duration 20ms;Criterion B,Criterion C |
| vibration | | Project | Operating | During shipping | | Vibration | 4.9m/s2(0.5G) | 19.6m/s2(2G) | | Shock | 49m/s2(5G) | 98m/s2(10G) |
|
| Anti-moisture | GB/T2423-1993 Damp heat test,24~45ºC95%RH,48h |
| Anti - mold | GB/T2423.16-1999 Mold experiment, Level2 |
| MTBF | ≥200,000h |
| Working lifetime | 65000H |
| Return rate of year | ≤1% |
| Smell | No semll harmful to health |
| Environment protection | RoHS&VCCI-A |
| Safty | UL/3C |
