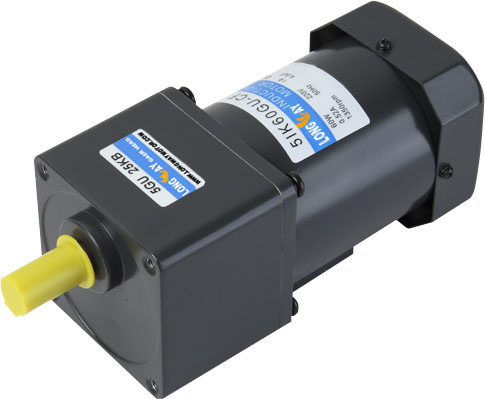

90mm 60W AC Gear Motor for Printing Machine

Name: 90mm 60W AC Gear Motor for Printing Machine
Brand: all-electronics-online.com
SKU: 733167145
Availability: InStock
Rating: 4.3 (89 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	10/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

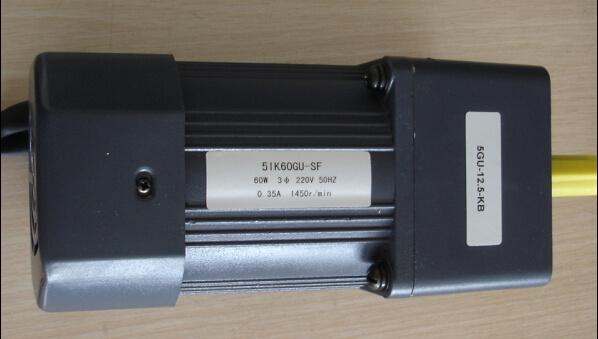

Prod Model:	5IK60GU-CF/5GU3K
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	10~20 Days
Package:	6PCS/CTN
Net Weight:	4kg/PC
Voltage:	1pH110/220V,3pH220/380V
Power:	10/15/25/40/60/90/120/180/200/250W
Number Of Stator:	Single-Phase
Function:	Driving
Certification:	CE, RoHS
Brand:	Longway

Product Description

1.motor size:90*90
2.motor power:60W
3.motor voltage:110/220VAC
4.rated speed:1300/2750r/min
5.reduction ratio:3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
6.typical application: medical appliance,packing machine,printing machine,textile machine,making machine..
7.We can supply you this ac gear motor with speed controller,brake,terminal box,damping...
8.We can adjust motor specifications and shaft size,motor color according to your requirement.
You can see this model details http://www.longwaymotor.com/p_detail.php?cata_code=p-4&id=127.

Model of Motor		Output	Voltage	Frequency	Poles		Rated				Starting Torque		Capacitor/Ve
						Duty	Speed	Current	Torque		Starting Torque		Capacitor/Ve
Motor	Motor with gear shaft	W	V	Hz	P		r/min	A	N.m	Kgf.cm	N.m	Kgf.cm	μF/VAC
5IK60A-AF	5IK60GN-AF	60	1ph110	50	4	CONT	1350	0.98	0.44	4.4	0.38	3.75	15.0/250
5IK60A-CF	5IK60GN-CF	60	1ph220	50	4	CONT	1350	0.52	0.44	4.4	0.4	4	4.0/450
5IK60A-SF	5IK60GN-SF	60	3ph220	50	4	CONT	1350	0.49	0.46	4.55	1.7	17	/
5IK60A-S3F	5IK60GN-S3F	60	3ph380	50	4	CONT	1350	0.28	0.46	4.55	1.7	17	/

If you are interested in this ac gear motor,please feel free to contact with me,I will give you a good price.
