| Prod Model: |
LK10A222-2 |
| Service: |
OEM/ODM |
| Sample: |
Available |
| Test: |
Fluke Test |
| Cables Entry & Exit: |
2entry 2exit |
| Maximum Capacity: |
96cores |
| Material: |
ABS/PC |
| Weight: |
2.1kg Erect Type |
| Transmission Medium: |
Multimode |
| Number Of Cores: |
Multi-Core |
Product Description

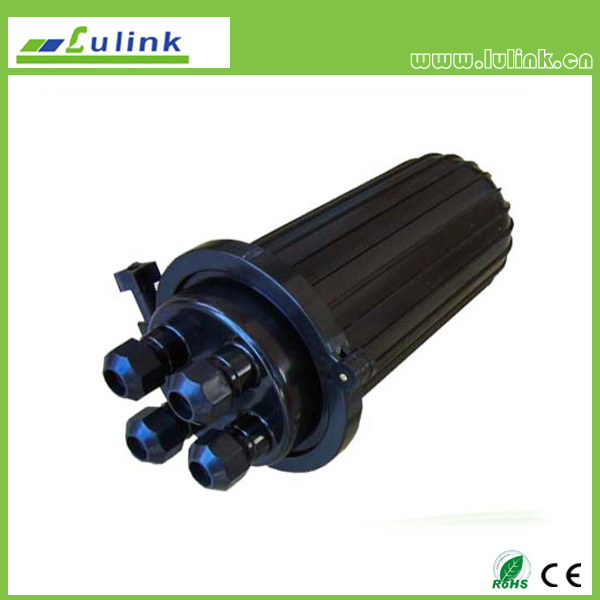

96 cores 2in 2out Joint Box Fiber Optical Splice Closure | Type | Waterproof Dome two inlets/outlets |
| Purpose | aerial, direct-burying, wall-mounting, Pipeline laying way |
| Dimension (CM) | 435mm*160mm (Erect type) |
| Cables Entry & Exit | 2Entry 2Exit |
| Cable Diameter (mm) | Φ7-Φ25 |
| Weight | 2.1kg(Erect type) |
| Material | PC/ABS |
| Maximum capacity | 96cores |
| Span-life | 20 years |
Components: Seal tape, Insulation tape, Nylon tie, optical cable heat shrinkable sleeve, mental hook, seal fittings, numeral bar, retaining ring
Environmental temperature: -40°C to +65°C
Atmospheric pressure:70-106KPa
Optic property: The spare fiber coiled in the fiber emplacing device; the fiber connector won't attenuate during the FOSC installation operation period.
Seal Performance: After the closures are sealed, then pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure.
Re-encapsulation Performance: The closures are pressurized up to 100KPa±5KPa in water, immersed in 15 minutes, there are no air bubbles; Or observed for 24 hours, there is no change of air pressure after three times of repeat encapsulation .
Voltage-resistance strength: Under the effect of 15kv/DC/1min, non-puncture, and no arc-over.
Insulation resistance: ≥2X104MΩ
Uses and properties:1. It is belonged to open structure airproof tie-in system of machine pressure.
2. It is used for the protective connection between two or more optical cables.
3. It is widely used for communication, network system, cabled T.V. of CATV, the fiber optic cable by network.
4. Suitable for single core fiber optic cable and ribbon fiber optic cable

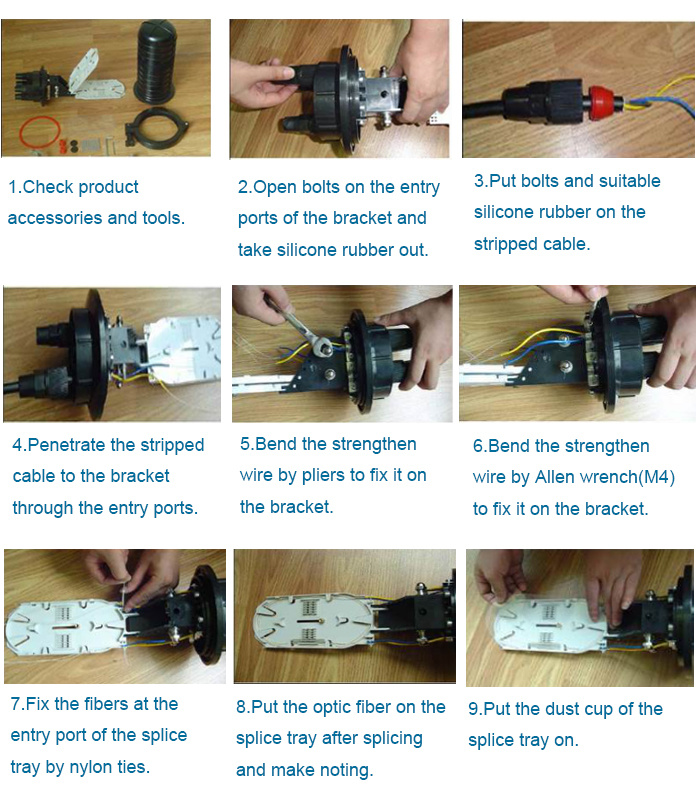

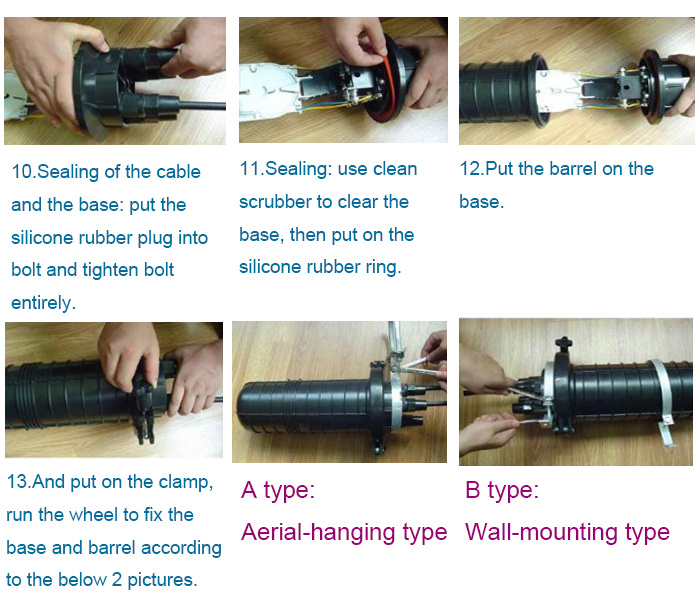

Installation Procedure
