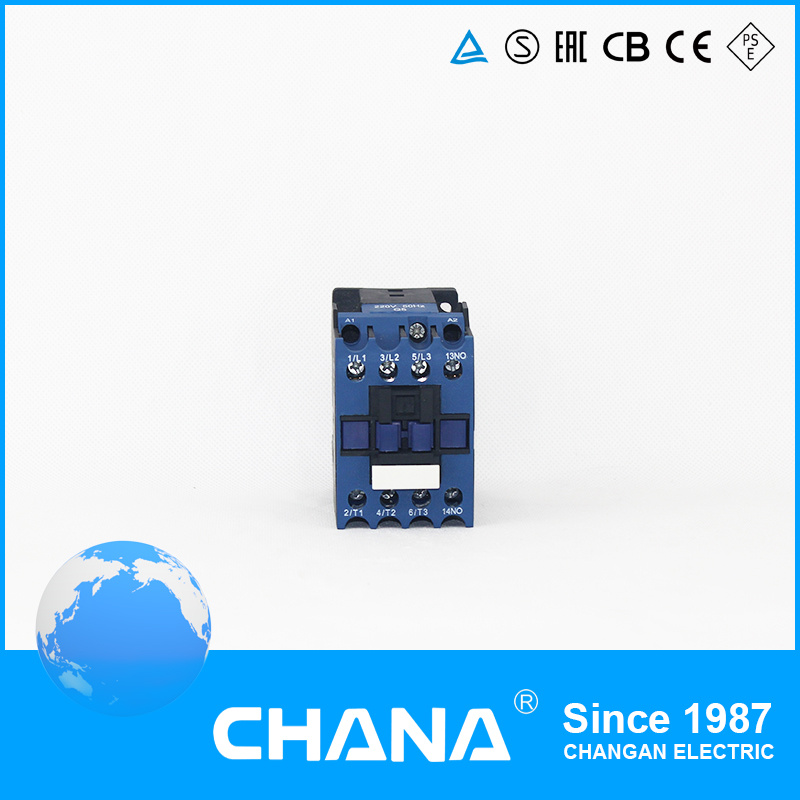

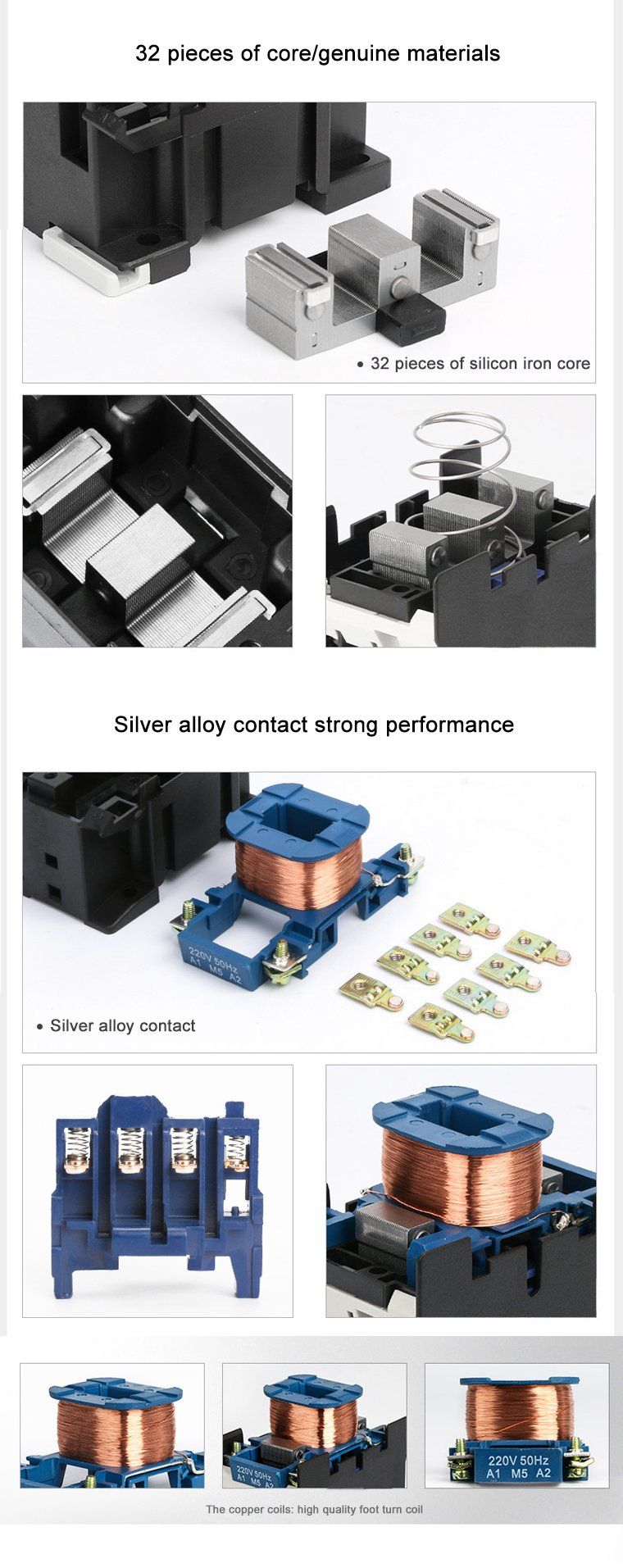

Product Description
Specifications:
CC1-D=LC1-D,
CC1-F=LC1-F,
CC1-K=LC1-K
1,General
Appliacatuon:Remote making&breaking circuits;Protect Circuit from over-load when assembing with thermal over-load relay;frequent start-up and control of Ac contactor;
Electric Ratings:AC50/60Hz,690V,up to 95A;
Utilization catagory:AC-3,AC-4
Altitude:<2000m,
Ambient temperature:-5ºC~+40ºC;
Mounting Cat:III
Mounting conditions:inckination between the mounting plane and the vertical plane should not exceed up&down 5ºC..
Standard:IEC/EN 60947-4-1
| Control Coil Valtage (Ac Coil Operation) |
| Volts(VAC) | 24 | 36 | 42 | 48 | 110 | 127 | 220 | 230 | 240 | 380 | 415 | 440 | 480 | 500 | 600 |
| Code | 50Hz | B5 | C5 | D5 | E5 | F5 | G5 | M5 | P5 | U5 | Q5 | N5 | R5 | | S5 | Y5 |
| 60Hz | B6 | | D6 | E6 | F6 | G6 | M6 | | U6 | Q6 | | R6 | T6 | | |
| 50/60Hz | B7 | | D7 | E7 | F7 | | M7 | P7 | | Q7 | N7 | R7 | | | |
| Control Coil Valtage (Dc Coil Operation) | | | | | | | | | | | | | | | | |
| Volts(VAC) | 12 | 24 | 36 | 48 | 110 | 220 | | | | | | | | | | |
| Code | JD | BD | CD | ED | FD | MD | | | | | | | | | | |
2 Technical Date

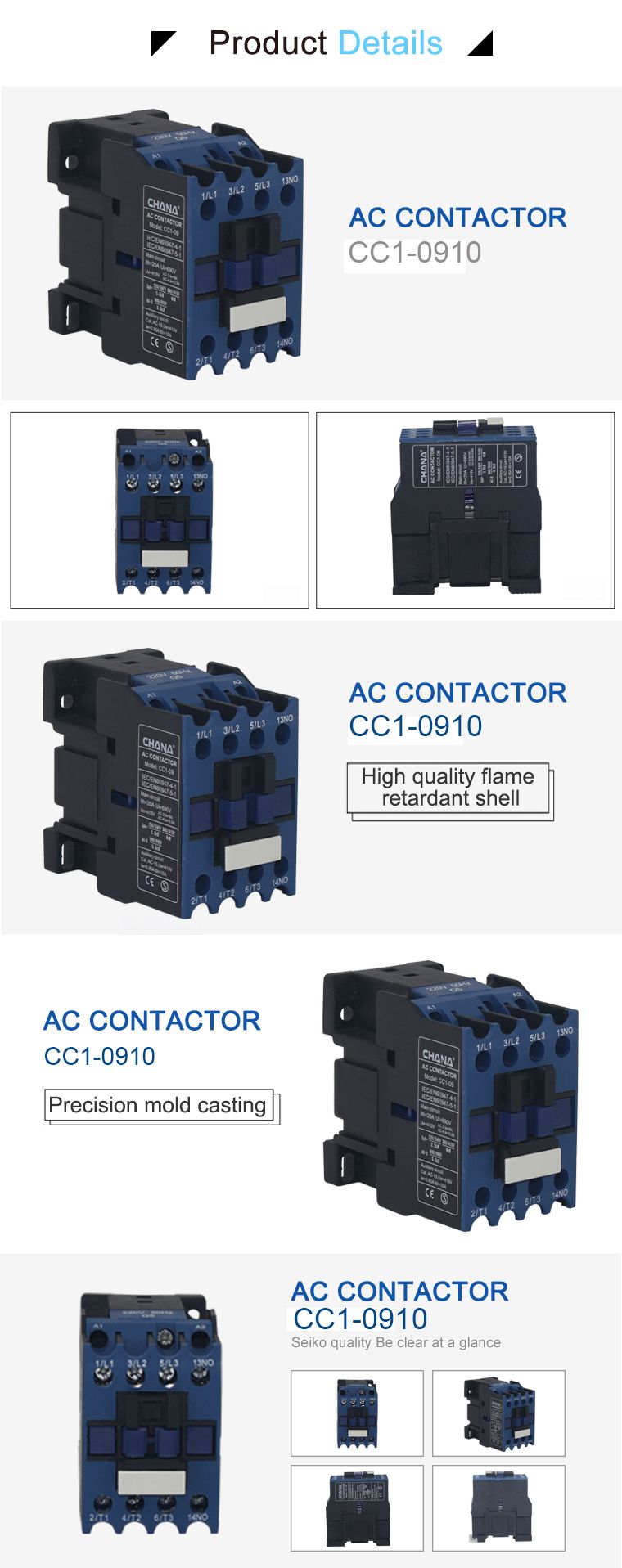

| Model No. | CC1-09 | CC1-12 | CC1-18 | CC1-25 | CC1-32 | CC1-40 | CC1-50 | CC1-65 | CC1-80 | CC1-95 | | |
| Rated Conventional Heating Current | Ith(A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 100 | 125 | | |
| Rated Voltage Ui(V) | Ui(V) | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 | 690 | | |
| Rated Operation Current Ue=380/415V | AC-3 Le(A) | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 | | |
| AC-4 Le(A) | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 | | |
| | 220/240 kW | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 | | |
| Power Controlled 3Ph Cage Motor AC3 | 380/415 kW | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | | |
| 660/690 kW | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 | | |
| Eletrical life(x10^3 operations) | AC-3 | 1000 | 1000 | 1000 | 1000 | 800 | 800 | 600 | 600 | 600 | 600 | | |
| AC-4 | 200 | 200 | 200 | 200 | 200 | 150 | 150 | 150 | 100 | 100 | | |
| Mechainical life(x10^3 operations) | | 10 | 10 | 10 | 10 | 8 | 8 | 8 | 8 | 6 | 6 | | |
| Matched Fuse | Size | RT16-00 | RT16-00 | RT16-00 | RT16-00 | RT16-00 | RT16-00 | RT16-00 | RT16-00 | RT16-00 | RT16-00 | | |
| A | 20 | 20 | 32 | 40 | 50 | 63 | 80 | 80 | 100 | 125 | | |
| Main Circuit | | 3P or 4P |
Our Services
A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After-service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 18 months warranty after goods arrive.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With All Technical Support From Engineer Team.
Warranty:
1. We provide 18 months warranty.
2. If the product is defective, please notify us within 10 days of delivery.
3. All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
Welcome to inquire, negotiate, we will be happy to provide you with the best quality products and personalized service!
Company Profile:
Changan Group Co., Ltd,Establised in 1987,Comprising more than 62 factories with over 2500 employees and the whole corporaion occupies 82000m2 ground during past 30years.we manufacture and export varieties of low voltage electrical appliance including all kinds of Circuit Breaker,Contactor,Relay,Switch,Solar Inverter etc..
1. We already get the certificate of ISO9001, CE, SGS.CB for most of our products.
2. We have 30 years of manufacture and 20 years exporting experience.
3. We have completely sales service system, ensure every detail is going smooth.
4. We have new designed products each year by our R&D Department.
5. Perfect testing system ensure each product is qualified.
6. We have a good reputation in Russia,Turkey,Europe,south america,Mid-east and Africa Market.
Packaging & shipping
Faq:
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Q 1.What's the payment term?
A.We accept tt,30% deposit and 70% balance agaisnt the copy of b/l.
Q 2.How's the delivery time ?
A.Usually it will take about 25 days for production
Q 3.Tell me the standard of package?
A.Normally are cartons, but also we can pack it according to your requirement.
Q4.Could you offer form a or c/o ?
A.It's totally not a problem.
We can prepare relative documents to forgin affairs office or other office to apply for this certificate.
Q5.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do oem
Established in 1987, CHANGAN GROUP Co., Ltd. Has been acknowledged as one of the most respected nation-wide manufacturers and exporters of low-voltage electrical apparatus in P. R. China.
Comprising more than 62 factories with over 2500 employees and the whole corporation occupies 82000m2 ground during past 27 years.
We manufacture and export varieties of low voltage electrical appliance including all kinds of CIRCUIT BREAKER, CONTACTOR, RELAY, SWITCH, SOLAR INVERTER etc.
All of our production procedures strictly follow ISO9001, ISO14001 and OHSAS18001, most of our products are certified such as SEMKO, TUV, CB and CE which can prove our guarantee quality and our products also have been chosen as "Chinese FAMOUS BRAND PRODUCT".
We not only make efforts in developing our own products with "CHANA"brand but also provide OEM services. Hope to establish good business relationships with your esteemed company in near future.
