(A-C3 Series) Open Loop Mode Dismountable Hall Effect Current Sensor with CE

Name: (A-C3 Series) Open Loop Mode Dismountable Hall Effect Current Sensor with CE
Brand: all-electronics-online.com
SKU: 752597505
Availability: InStock
Rating: 4.8 (60 reviews)

Price:	US $ 18.32-20.35/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	A-C3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	a-C3 Current Sensor
Supply Voltage:	+-12,+-15
Power Consumption:	<25
Magnetic Offset:	@IP=±ipn-0 +-20
Offset Drift:	@ -40~+85c <=+-1
Output Drift:	@ -40~+85c <=+-1
Galvanic Isolation:	@ 50Hz,AC,1min 5kv

Product Description

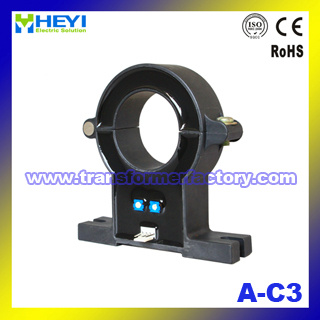

C3 series dismountable hall effect current sensor is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of DC, AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC,RL=2KΩ,CL=10000PF)

Type	C3-400A	C3-600A	C3-800A	C3-1000A	C3-2000A	Unit
Rated current(Ipn)	±400	±600	±800	±1000	±2000	A
Measure range(Ip)	0-±800	0-±1200	0-±1600	0-±2000	0-±3000	A
Rated output	@Ip=±Ipn ±4±1%					V
Supply voltage	±12,±15					V
Power Consumption	<25					mA
Offset voltage	@Ip=0 ±20					mV
Magnetic offset	@Ip=±Ipn-0 ±20					mV
Offset drift	@ -40~+85ºC ≤±1					mV/ºC
Output drift	@ -40~+85ºC ≤±1					mV/ºC
Linearity	@Ip=0-±Ipn ≤1					%FS
Response time	@50A/μS, 10%-90% ≤5					μs
Galvanic isolation	@ 50HZ,AC,1min 5					KV
Isolation resistance	@ DC 500V 1000					MΩ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+15V 2:-15V 3:V0UT 4:0V

Directions for use

1. When the current will be measured goes through a sensor, the voltage will be measured at the output end.(Note: The false wiring may result in the damage of the sensor)
2. Custom design in the different rated input current and the output voltage are available.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature (TS)	-40 to +125	ºC
Mass(approx) (M)	300	g
