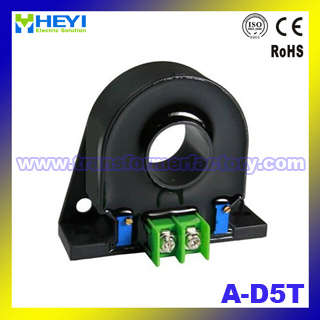

(A-D5T Series) Closed Loop Mode Hall Effect Current Transmitter Sensor

Name: (A-D5T Series) Closed Loop Mode Hall Effect Current Transmitter Sensor
Brand: all-electronics-online.com
SKU: 752196215
Availability: InStock
Rating: 4.4 (110 reviews)

Price:	US $ 15.21-17.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A-D5T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	a-D5t Series
Supply Voltage:	+12~+32V
Power Consumption:	+35+ Io Ma
Linearity:	Less Than 0.5
Response Time:	Less Than 300ms
Galvanic Isolation:	@ 50Hz,AC,1min 3kv
Courier:	DHL, TNT, FedEx

Product Description

A-D5T series hall effect current Transmitter is an Closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	A-D5T- 10A	A-D5T- 20A	A-D5T- 30A	A-D5T- 50A	A-D5T- 100A	Unit
Rated current(Ipn AC)	10	20	30	50	100	A
Measure range(Ip AC)	0-12	0-24	0-36	0-60	0-120	A
Rated output(Io DC)	@Ip=±Ipn AC 4~20±1%					mA
Supply voltage	+12~+32V					V
Power Consumption	+35+ Io					mA
Zero current	@Ip=0 4±0.1					mA
Offset drift	@ -40~+85ºC ≤±0.005					mA /ºC
Output drift	@ -40~+85ºC ≤±0.005					mA /ºC
Linearity	@Ip=0-±Ipn ≤0.5					%FS
Response time	≤300					ms
Galvanic isolation	@ 50HZ,AC,1min 3					KV
Bandwidth	20~20000					HZ

Applications

·Variable speed drives
· Welding machine
· Battery supplied applications
· Uninterruptible Power Supplies (UPS)
· Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature(TS)	-40 to +125	ºC
Mass(approx) (M)	93	g

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
