(A-D6T Series) Closed Loop Mode Hall Effect Current Transmitter Sensor

Name: (A-D6T Series) Closed Loop Mode Hall Effect Current Transmitter Sensor
Brand: all-electronics-online.com
SKU: 752197295
Availability: InStock
Rating: 4.5 (114 reviews)

Price:	US $ 30.42-34.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A-D6T
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	a-D6t Series
Supply Voltage:	+12~+32V
Power Consumption:	+35+ Io Ma
Linearity:	Less Than 0.5
Response Time:	Less Than 300ms
Galvanic Isolation:	@ 50Hz,AC,1min 3kv
Courier:	DHL, TNT, FedEx

Product Description

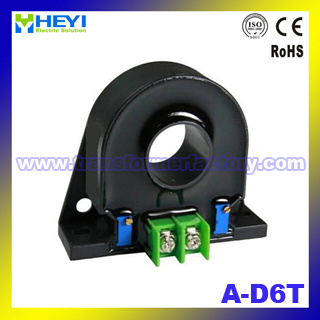

A-D6T series hall effect current Transmitter is an Closed loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	A-D6T- 100A	A-D6T- 200A	A-D6T- 300A	A-D6T- 400A	A-D6T- 500A	Unit
Rated current(Ipn AC)	100	200	300	400	500	A
Measure range(Ip AC)	0-120	0-240	0-360	0-480	0-600	A
Rated output	@Ip=±Ipn AC 4~20±1%					mA
Supply voltage	+12~+32V					V
Power Consumption	+35+ Io					mA
Zero current	@Ip=0 4±0.1					mA
Offset drift	@ -40~+85ºC ≤±0.005					mA /ºC
Output drift	@ -40~+85ºC ≤±0.005					mA /ºC
Linearity	@Ip=0-±Ipn ≤0.5					%FS
Response time	≤300					ms
Galvanic isolation	@ 50HZ,AC,1min 5					KV
Bandwidth	20~20000					HZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.

Directions for use

1. When the current will be measured goes through a Transmitter, the current will be measured at the output end.(Note: The false wiring may result in the damage of the Transmitter)
2. The output amplitude of the transmitter can be adjusted according to users' requirements.
3. Custom design in the different rated input current and the output current are Transmitter.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature (TS)	-40 to +125	ºC
Mass(approx) (M)	260	g
