Luoyang Da Yuan Cable Factory Co., Ltd. >> AAC/AAAC/ACSR Overhead Conductor Bare Cable

AAC/AAAC/ACSR Overhead Conductor Bare Cable

AAC/AAAC/ACSR Overhead Conductor Bare Cable
Price: US $ 0.1/Meter
Min Order: 3000/Meter
Pay Type: L/C,T/T,Western Union,Paypal
Prod Model: AAC-WLL09
Product Name: Overhead All Aluminium Wire Stranded AAC Conductor
Standard: CSA IEC ASTM DIN BS GOST Sas
Applicable Voltage: Low Voltage, Medium Voltage, High Voltage
Type Of Conductor: Stranded, Bare
Certificate: ISO9001, CCC, CQC, Ohsas, TUV, etc.
Transportation: by Sea or as Your Requirement
Supplier's Nature: Manufacturer, Exporter
Core: According to Your Requirement
Manufacturer Experience: Since 2006
Factory Area: 200, 081mm2
Type: Bare
Conductor Type: Stranded
Application: Overhead
Conductor Material: Aluminum
Certification: Ohsas
Sheath Material: Bare
Insulation Material: No Insulation
Range Of Application: Overhead LV, Mv, Hv
Brand: Dayuan

Product Description

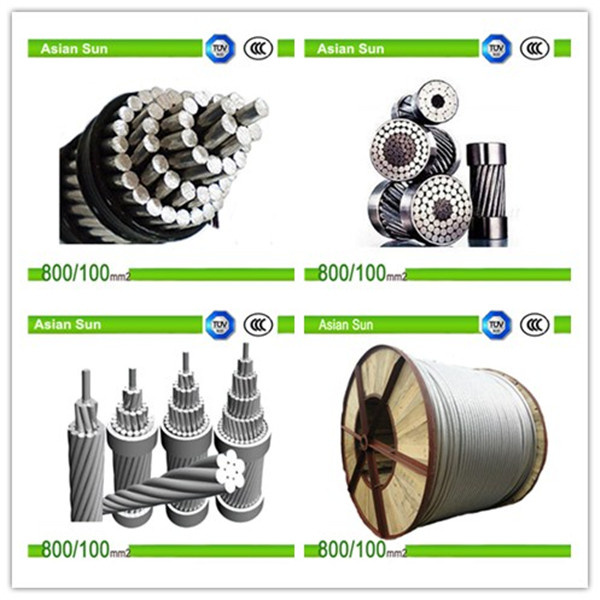

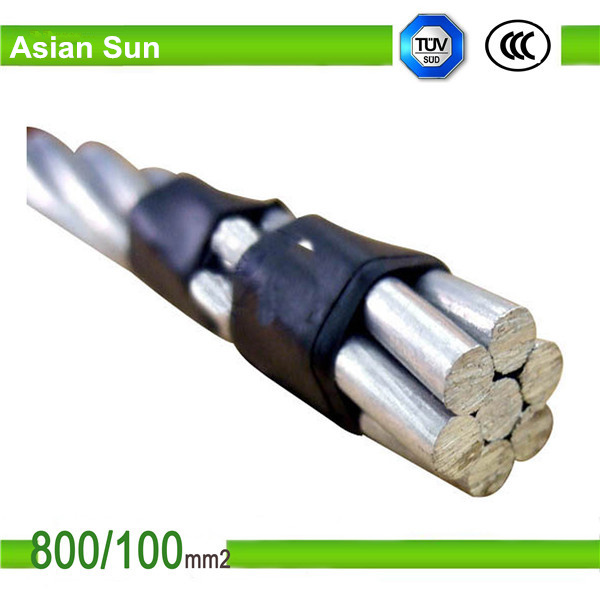

All Aluminium Conductor Overhead Bare Aluminium Stranded Wire AAC Conductor

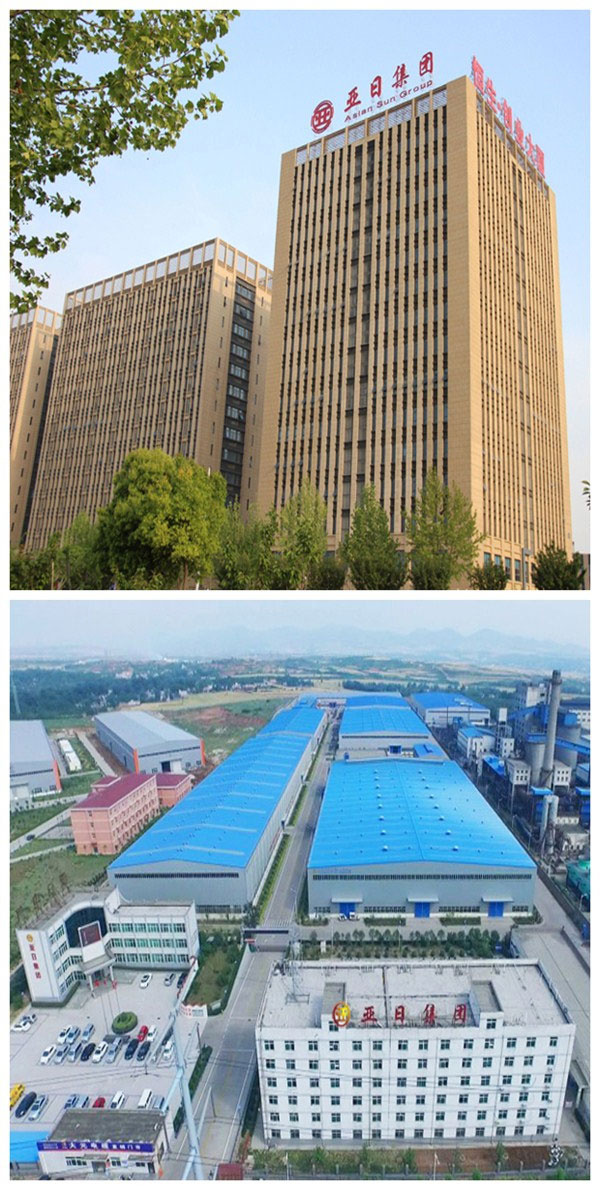

Factory View


Product DescriptionMaterial Standard:
ASTM-B232   Standard specification for Concentric-Lay-Stranded Aluminum 1350 Conductors
BS215-2       aluminum conductors steel-reinforced -For overhead power transmission
DIN48204       Steel reinforced aluminum stranded conductors
IEC209           Aluminum stranded conductor steel reinforced

Technical characteristics
We could produce most of the standards cables, such as ASTM, BS, CSA, DIN, GB and IEC Standards, etc.

CodeSizeSectionNo. of Strands Diameter StrandsWeightRated StrengthMaximunm Resistance
 @20°C
AWG o MCMin²mmmmkg/kmkgΩ/km
Peachbell613.37×1.564.6636.62542.170
Rose421.157×1.965.8858.33991.364
Iris233.627×2.477.4292.76110.857
Pansy142.417×2.788.331177400.681
Poppy1/053.517×3.129.36147.58970.539
Aster2/067.447×3.5010.5118611360.427
Phlox3/085.027×3.9311.823513750.339
Oxlip4/01077×4.4213.2529617380.268
Daisy266.81357×4.9614.8837321910.213
Laurel266.813519×3.0115.0537322540.213
Tulip336.417119×3.3816.947027860.169
Canna397.520119×3.6818.3855532190.143
Cosmos47724219×4.0220.1266638030.119
Syringa47724237×2.8820.1866639320.119
Dahlia556.528219×4.3521.7377744310.102
Mistletoe556.528237×3.1121.877744950.102
Orchid63632237×3.3323.3188851540.089
Violet715.536337×3.5324.73100057910.079
Nasturtium715.536361×2.7524.76100059600.079
Arbutus79540337×3.7226.07111063030.071
Lilac79540361×2.9026.11111065010.071
Anemone874.544337×3.9127.37122268210.065
Crocus874.544361×3.0427.36122271440.065
Magnolia95448337×4.0828.55133374280.059

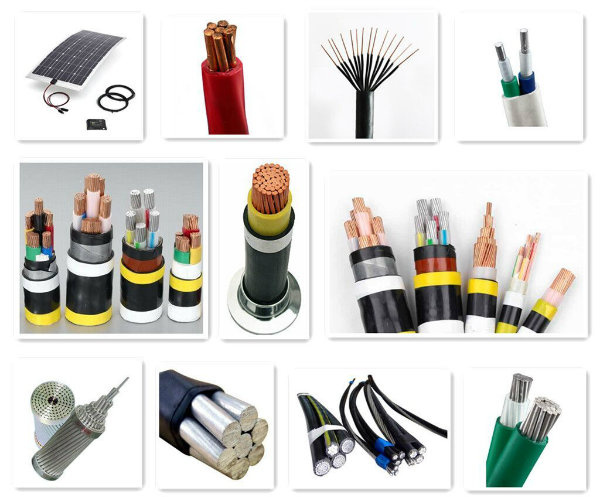

Relation Products
                            Company Information
Each time we receive an big order with different standards we will make a meeting about the production process in order to make sure the quality and delivery time.
Certificates:
SECRI, ISO9001:2008, OHSAS, CCC, TUV Certifications:

Packaging & Shipping
Package: Support to pack as rolls, or with wooden drum or wooden steel drums.
Shipment terms: DHL, Fedex, UPS, etc. And usually by Sea.

Customer Coming
Welcome come our factory at any time!  we trust you will like it!

Contact us

Lydia Wang
Department sale manager
International Trade Department
Luoyang Dayuan Cable Factory Co., Ltd
=================================
Tel: +86-379-69991587
Mobile: + 86-13271534528
Web: http://www.yr-group.cn
Alibaba Showroom: http://lyyari.en.alibaba.com/
=================================



Luoyang Da Yuan Cable Factory Co., Ltd. is founded in the Sept. 2011 with registered fund 200 million RMB which is the subsidiary of Luoyang Asian Sun Industrial Group Co., Ltd. We can produce all kinds of high and low voltage electric wire and cables, and have been one of the new technology development enterprise made scientific, industry, trading as a whole. Main products include power cables, PV cable, control cables, branching cables, aerial cables, Most important thing is that we also produce the raw material-aluminium wire rod coperated with Ls Group etc. Seven big series, more than 300 varieties, nearly. 2000. Specifications.

Dayuan Cable is committed to "all for customer satisfaction", comprehensively implements the ISO9001 quality system, effectively guarantees the enterprise competitiveness in the market. Short-term goal for company's development is giving full play to the advantages of talents, technology and equipment, improving product quality, building the "Da Yuan" brand in the domestic, making the product into the national grid, Its farther goal is carrying out the strategy of sustainable development, making the "quality, price, service" well done to step into the international market, setting up national cable brand, and achieving the leapfrog development of the enterprise by virtue of producing higher level of series cable products.

Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.
