| Prod Model: |
AAC |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
LV, Mv, Hv |
| Conductor: |
Aluminium/Aluminium Alloy |
| Reinforce: |
Steel Wire |
| Insulation: |
Bare |
| Specifications: |
as Customer's Request |
| Production Standard: |
ASTM, BS215, DIN, IEC, CSA |
| Usage: |
Power Transmission Line |
| Certificate: |
ISO9001, ISO14001, CCC |
| Sample: |
Free Sample Available |
| Note: |
OEM, ODM Are Acceptable |
| Insulation Material: |
Bare |
| Current: |
AC Cable |
| Application: |
Power Station |
| Certification: |
CCC |
| Model: |
AAC |
| Brand: |
Dayuan |
| Sheath Material: |
No |
| Voltage: |
LV/Mv/Hv |
| Wire Core Material: |
Aluminium/Aluminium Alloy |
Product Description

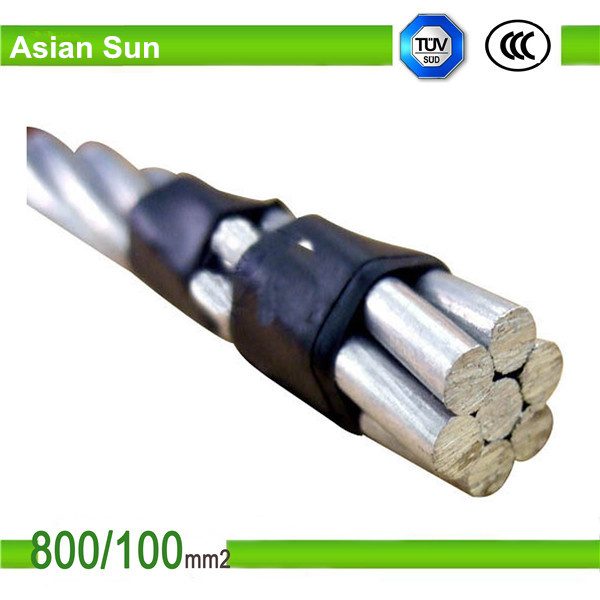

1. Application:
AAC/ACSR cable are widely used in power transmission lines with various voltages, which have good characteristics of simple structure, convenient installation and maintenance, low cost and large transmission capacity.
2. Type and description
| Type | Description |
| AAC | All Aluminum Conductor |
| AAAC | All Aluminum Alloy Conductor |
| ACSR | Aluminum Conductor Steel Reinforced Cable |
| AACSR | Aluminium Alloy Conductor Steel Reinforced Cable |
3. General Specifications:
ASTM Standard(AAC):
| Code | Size | Section | No. of Strands | Diameter Strands | Weight | Rated Strength | Maximunm Resistance at 20°C |
|
|
| AWG or MCM | in² | mm | mm | kg/km | kg | Ω/km |
| Peachbell | 6 | 13.3 | 7×1.56 | 4.66 | 36.6 | 254 | 2.170 |
| Rose | 4 | 21.15 | 7×1.96 | 5.88 | 58.3 | 399 | 1.364 |
| Iris | 2 | 33.62 | 7×2.47 | 7.42 | 92.7 | 611 | 0.857 |
| Pansy | 1 | 42.41 | 7×2.78 | 8.33 | 117.0 | 740 | 0.681 |
| Poppy | 1/0 | 53.51 | 7×3.12 | 9.36 | 147.5 | 897 | 0.539 |
| Aster | 2/0 | 67.44 | 7×3.50 | 10.51 | 186.0 | 1,136 | 0.427 |
| Phlox | 3/0 | 85.02 | 7×3.93 | 11.80 | 235.0 | 1,375 | 0.339 |
| Oxlip | 4/0 | 107 | 7×4.42 | 13.25 | 296.0 | 1,738 | 0.268 |
| Daisy | 266.8 | 135 | 7×4.96 | 14.88 | 373.0 | 2,191 | 0.213 |
| Laurel | 266.8 | 135 | 19×3.01 | 15.05 | 373.0 | 2,254 | 0.213 |
| Tulip | 336.4 | 171 | 19×3.38 | 16.90 | 470.0 | 2,786 | 0.169 |
| Canna | 397.5 | 201 | 19×3.68 | 18.38 | 555.0 | 3,219 | 0.143 |
| Cosmos | 477 | 242 | 19×4.02 | 20.12 | 666.0 | 3,803 | 0.119 |
| Syringa | 477 | 242 | 37×2.88 | 20.18 | 666.0 | 3,932 | 0.119 |
| Dahlia | 556.5 | 282 | 19×4.35 | 21.73 | 777.0 | 4,431 | 0.102 |
| Mistletoe | 556.5 | 282 | 37×3.11 | 21.80 | 777.0 | 4,495 | 0.102 |
| Orchid | 636 | 322 | 37×3.33 | 23.31 | 888.0 | 5,154 | 0.089 |
| Violet | 715.5 | 363 | 37×3.53 | 24.73 | 1,000 | 5,791 | 0.079 |
| Nasturtium | 715.5 | 363 | 61×2.75 | 24.76 | 1,000 | 5,960 | 0.079 |
| Arbutus | 795 | 403 | 37×3.72 | 26.07 | 1,110 | 6,303 | 0.071 |
| Lilac | 795 | 403 | 61×2.90 | 26.11 | 1,110 | 6,501 | 0.071 |
| Anemone | 874.5 | 443 | 37×3.91 | 27.37 | 1,222 | 6,821 | 0.065 |
| Crocus | 874.5 | 443 | 61×3.04 | 27.36 | 1,222 | 7,144 | 0.065 |
| Magnolia | 954 | 483 | 37×4.08 | 28.55 | 1,333 | 7,428 | 0.059 |
| Goldenrod | 954 | 483 | 61×3.18 | 28.60 | 1,333 | 7,663 | 0.059 |
| Bluebell | 1033.5 | 524 | 37×4.24 | 29.71 | 1,443 | 8,059 | 0.055 |
| Larkspur | 1033.5 | 524 | 61×3.31 | 29.76 | 1,443 | 8,303 | 0.055 |
| Marigold | 1113 | 564 | 61×3.43 | 30.88 | 1,555 | 8,916 | 0.051 |
| Hawthom | 1192.5 | 604 | 61×3.55 | 31.96 | 1,665 | 9,550 | 0.047 |
| Narcissus | 1272 | 645 | 61×3.66 | 32.94 | 1,777 | 10,002 | 0.044 |
| Columbine | 1351.5 | 685 | 61×3.78 | 34.02 | 1,888 | 10,611 | 0.042 |
| Carnation | 1431 | 725 | 61×3.89 | 35.02 | 1,998 | 11,123 | 0.039 |
| Gladiolus | 1510.5 | 765 | 61×4.00 | 35.98 | 2,110 | 11,641 | 0.037 |
| Coreopsis | 1590 | 806 | 61×4.10 | 36.09 | 2,222 | 12,230 | 0.035 |
| Sneezeworth | 250 | 127 | 7×4.80 | 14.4 | 349 | 2,052 | 0.227 |
| Valerian | 250 | 127 | 19×2.91 | 14.57 | 349 | 2,108 | 0.227 |
| Peony | 300 | 152 | 19×3.19 | 15.96 | 419 | 2,482 | 0.189 |
| Daffodil | 350 | 177 | 19×3.45 | 17.23 | 489 | 2,903 | 0.162 |
| Goldentuft | 450 | 228 | 19×3.91 | 19.54 | 629 | 3,580 | 0.126 |
| Zinnia | 500 | 253 | 19×4.12 | 20.60 | 698 | 3,975 | 0.113 |
| Hyacinth | 500 | 253 | 37×2.95 | 20.66 | 698 | 4,126 | 0.113 |
| Meadowsweet | 600 | 304 | 37×3.23 | 22.63 | 838 | 4,849 | 0.094 |
| Verbena | 700 | 355 | 37×3.49 | 24.45 | 978 | 5,661 | 0.081 |
| Flag | 700 | 355 | 61×2.72 | 24.48 | 978 | 5,831 | 0.081 |
| Petunia | 750 | 380 | 37×3.62 | 25.32 | 1,048 | 5,968 | 0.075 |
| Cattail | 750 | 380 | 61×2.82 | 25.35 | 1,048 | 6,147 | 0.075 |
| Cockcomb | 900 | 456 | 37×3.96 | 27.74 | 1,257 | 6,997 | 0.063 |
| Snapdragon | 900 | 456 | 61×3.07 | 27.77 | 1,257 | 7,236 | 0.063 |
| Hawkweed | 1000 | 507 | 37×4.18 | 29.25 | 1,397 | 7,796 | 0.056 |
| Camellia | 1000 | 507 | 61×3.25 | 29.26 | 1,397 | 8,005 | 0.056 |
| Jessamine | 1750 | 887 | 61×4.30 | 38.72 | 2,445 | 13,452 | 0.032 |
| Cowslip | 2000 | 1013 | 91×3.76 | 41.41 | 2,791 | 15,489 | 0.028 |
ASTM Standard(ACSR):
Code Name | Nominal | Number/Diameter | Calculated Area mm2 | Diameter mm | Resistance
≤Ω/km | Force
KN | Weight
kg/km |
| AWG or MCM | Al
mm | Steel
mm | Al | Steel | Total |
| Turkey | 6 | 6/1.68 | 1/1.68 | 13.29 | 2.19 | 15.48 | 5.04 | 2.1586 | 5.24 | 54 |
| Swan | 4 | 3/2.12 | 1/2.12 | 21.16 | 3.55 | 24.71 | 6.36 | 1.3557 | 8.32 | 85 |
| Swanate | 4 | 7/1.96 | 1/2.61 | 21.16 | 5.35 | 26.51 | 6.53 | 1.3557 | 10.53 | 100 |
| Sparrow | 2 | 6/2.67 | 1/2.67 | 33.61 | 5.61 | 39.22 | 8.01 | 0.8535 | 12.70 | 136 |
| Sparate | 2 | 7/2.47 | 1/3.30 | 33.61 | 8.52 | 42.13 | 8.24 | 0.8535 | 16.11 | 159 |
| Robin | 1 | 6/3.00 | 1/3.00 | 42.39 | 7.10 | 49.49 | 9.00 | 0.6767 | 15.85 | 171 |
| Raven | 1/0 | 6/3.78 | 1/3.37 | 53.48 | 8.90 | 62.38 | 10.11 | 0.5364 | 19.32 | 216 |
| Quail | 2/0 | 6/3.78 | 1/3.78 | 67.42 | 11.23 | 78.65 | 11.34 | 0.4255 | 23.62 | 273 |
| Pigeon | 3/0 | 6/4.25 | 1/4.25 | 85.03 | 14.19 | 99.22 | 12.75 | 0.3373 | 29.41 | 343 |
| Penguin | 4/0 | 6/477 | 1/4.77 | 107.23 | 17.87 | 125.10 | 14.31 | 0.2675 | 37.06 | 433 |
| Waxwing | 266.8 | 18/3.09 | 1/3.09 | 135.16 | 7.48 | 142.64 | 15.45 | 0.2133 | 30.27 | 431 |
| Partridge | 266.8 | 26/2.57 | 7/2.00 | 135.16 | 22.00 | 157.16 | 16.28 | 0.2143 | 50.29 | 546 |
| Ostrich | 300 | 26/2.73 | 7/2.12 | 152.00 | 24.71 | 176.71 | 17.28 | 0.1906 | 56.52 | 614 |
| Merlin | 336.4 | 18/3.47 | 1/3.47 | 170.45 | 9.48 | 179.93 | 17.5 | 0.1691 | 38.23 | 544 |
| Linnet | 336.4 | 26/2.89 | 7/2.25 | 170.45 | 21.81 | 198.26 | 18.31 | 0.1699 | 62.71 | 689 |
| Oriole | 336.4 | 30/2.69 | 7/2.69 | 170.45 | 39.81 | 210.26 | 18.83 | 0.1704 | 77.27 | 784 |
| Chickadee | 397.5 | 18/3.77 | 1/3.77 | 201.42 | 11.16 | 212.58 | 18.85 | 0.1431 | 43.99 | 642 |
| Brant | 397.5 | 24/3.27 | 7/2.18 | 201.42 | 26.13 | 227.55 | 19.61 | 0.1438 | 64.69 | 762 |
| Lbis | 397.5 | 26/3.14 | 7/2.44 | 201.42 | 32.77 | 234.19 | 19.88 | 0.1438 | 72.11 | 814 |
| Lark | 397.5 | 30/2.92 | 7/2.92 | 201.42 | 46.97 | 248.39 | 20.44 | 0.1442 | 88.69 | 927 |
| Pelican | 477 | 18/4.14 | 1/4.14 | 241.68 | 13.42 | 255.10 | 20.70 | 0.1193 | 52.16 | 771 |
| Flicker | 477 | 24/3.58 | 7/2.39 | 241.68 | 31.29 | 272.97 | 21.49 | 0.1199 | 76.66 | 915 |
| Hawk | 477 | 26/3.44 | 7/2.67 | 241.68 | 39.42 | 281.10 | 21.79 | 0.1199 | 86.65 | 978 |
| Hen | 477 | 30/3.20 | 7/3.20 | 241.68 | 56.39 | 298.07 | 22.40 | 0.1201 | 105.34 | 1112 |
| Osprey | 556.5 | 18/4.47 | 1/4.47 | 282.00 | 15.68 | 297.68 | 22.35 | 0.1022 | 60.88 | 899 |
| Parakeet | 556.5 | 24/3.87 | 7/2.58 | 282.00 | 36.58 | 318.58 | 23.22 | 0.1027 | 88.22 | 1067 |
| Dove | 556.5 | 26/3.72 | 7/2.89 | 282.00 | 45.94 | 327.94 | 23.55 | 0.1027 | 101.03 | 1140 |
Standard:
We can supply the conductor according to different recognized standards, such as IEC61089, BS215, ASTM-B232, CSA-C49, DIN48204, JIS-C3110, and customers' special specifications can also be satisfied.
4. Packing: Simple roll, plastic/wooden drum, wooden-steel drum, or as customer's request.
Port of shippment: Qingdao, Shanghai, Ningbo, or as request.
5. About Asian Sun Group:
1). Established in 2006 with registered capital 410 million RMB.
2). A group with seven subsidiary companies.
3). Factory about 200,081 square meters.
4). More than 800 employees including 120 technical and management staff.
5). Main products: Solar cable
Electric wire
AAC(all aluminum conductor)
ACSR(aluminum conductor steel reinforced)
ABC(aerial bundle cable)
Power cable
6). OEM&ODM are acceptable.
6. After-sales Service:
1. All our cables will be tested well in production and before delivery.
2. Please contact us if any problem, we will respond within 24 hours.
7. FAQ:
(1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get
the price, please call us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is
free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready
for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3-5 days.
You can use your own express account orprepay us if you do not have an account.
(4).What is your terms of delivery?
We usually accept FOB, CFR, CIF etc. You can choose the one which is the most
convenient or cost effective for you.
