ABC Cable, Aerial Bundled Cable, 0.6/1 Kv (BS 7870-5)

Name: ABC Cable, Aerial Bundled Cable, 0.6/1 Kv (BS 7870-5)
Brand: all-electronics-online.com
SKU: 723585635
Availability: InStock
Rating: 4.6 (114 reviews)

Price:	US $ 0.5-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABC Cable
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Referred Standard:	BS 7870-5
Rated Voltage:	0.6/1 Kv
Number Of Cores:	2-5
Size Range:	25-120 mm2
Type:	Insulated
Conductor Type:	Stranded
Application:	Overhead
Conductor Material:	Aluminum
Insulation Material:	XLPE
Certification:	CCC
Range Of Application:	Transmission
Brand:	Boan

Product Description

ABC Cable, Aerial Bundled Cable, 0.6/1 KV (BS 7870-5)
Product Description
Low Voltage Aerial Bundled Cable/ Low Voltage ABC Cable

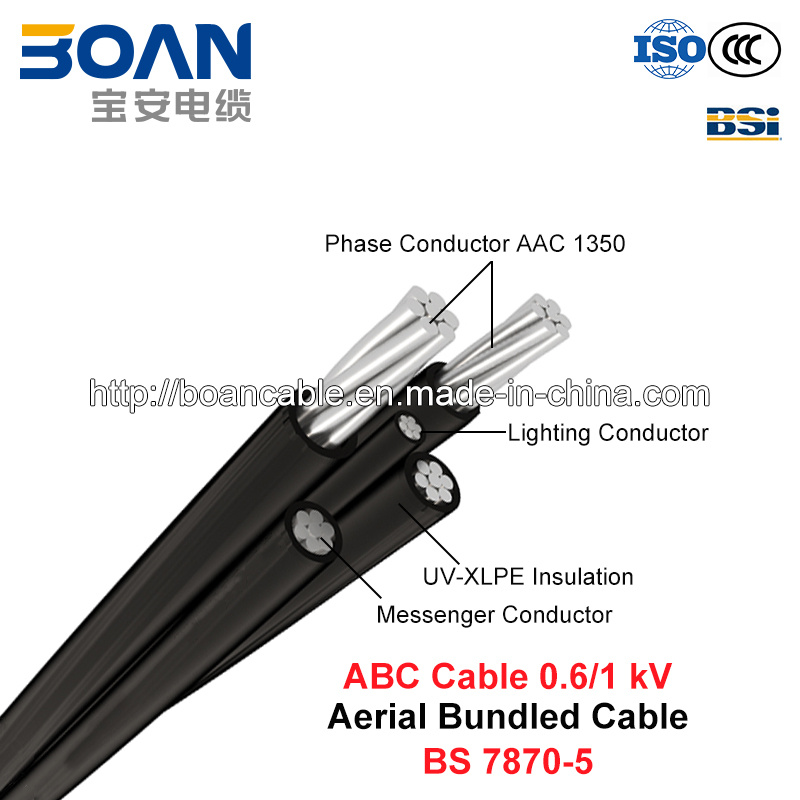

The basic construction is as follows:
3 power cores consisting of standard aluminium conductors, insulated withXLPE insulation
+ One sheath lighting aluminium conductor with XLPE insulation(optional)
+ One messenger Al-alloy conductor (bare or covered)

The messenger conductor can be of galvanised steel wire also.
The purpose of messenger wire is
A) It acts as load bearing wire.
B) It acts as earth or neutral conductor.

To be used at cotages of 600V phase-to-phase or less and at conductor temperatures not to exceed 75oC for polyethylene insulated conductors or 90oC for crossliked polyethylene(XLPE) insulated conductors.

Standards:
(1). BS 7870-5: Part 5: Polymeric insulated aerial bundled conductors (ABC) of rated voltage 0.6/1 kV for overhead distribution

ABC Cables without Street Lighting
1+1 Structure
Phase Conductor			Neutral Conductor			Completed Cable
Section	Insulation Thickness	Electrical Resistance	Section	Insulation Thickness	Electrical Resistance	Overall Diameter	Cable Weight
Section	Insulation Thickness	DC.20°C	Section	Insulation Thickness	DC.20°C
No.xmm2	mm	Ω/km	mm2	mm	Ω/km	mm	kg/km
1x25	1.3	1.20	25	1.3	1.20	17.6	210
1x35	1.3	0.868	35	1.3	0.868	19.6	270
1x50	1.5	0.641	50	1.5	0.641	23	360
1x70	1.5	0.443	70	1.5	0.443	26.4	500
1x95	1.7	0.320	95	1.7	0.320	30.6	680

3+1 Structure
Phase Conductor			Neutral Conductor			Completed Cable
Section	Insulation Thickness	Electrical Resistance	Section	Insulation Thickness	Electrical Resistance	Overall Diameter	Cable Weight
Section	Insulation Thickness	DC.20°C	Section	Insulation Thickness	DC.20°C
No.xmm2	mm	Ω/km	mm2	mm	Ω/km	mm	kg/km
3x25	1.3	1.20	25	1.3	1.20	21.2	410
3x35	1.3	0.868	35	1.3	0.868	23.7	550
3x50	1.5	0.641	50	1.5	0.641	27.8	730
3x70	1.5	0.443	70	1.5	0.443	31.9	1000
3x95	1.7	0.320	95	1.7	0.320	36.9	1370
3x120	1.7	0.253	120	1.7	0.253	40.6	1690
ABC Cables with Street Lighting
3+1+1 Structure
Phase Conductor		Neutral Conductor		Street Lighting Conductor		Completed Cable
Section	Insulation Thickness	Section	Insulation Thickness	Section	Insulation Thickness	Overall Diameter	Cable Weight
Section	Insulation Thickness	Section	Insulation Thickness	Section	Insulation Thickness	Overall Diameter	Cable Weight
No.xmm2	mm	mm2	mm	mm2	mm	mm	kg/km
3x50	1.5	50	1.5	25	1.3	29.8	830
3x70	1.5	70	1.5	25	1.3	33.6	1100
3x95	1.7	95	1.7	25	1.3	38.2	1470
